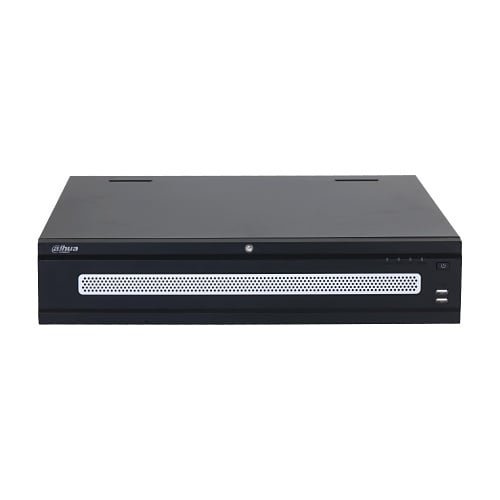

Tinklinis įrašymo įrenginys Dahua NVR NVR608RH-64-XI
113,86€ / 60 mėn.
3.832,39€(Kaina be PVM)4.637,19€(Kaina su PVM)
| Tipas: tinklinis įrašymo įrenginys (NVR) | |
| Prekės ženklas: Dahua | |
| Modelis: NVR608RH-64-XI | |
| Technologija: WizMind, AcuPick | |
| Kanalai: 64 | |
| Skiriamoji geba: iki 32 MP/kan. | |
| Atmintis: 8×SATA (iki 20 TB kiekvienas) | |
| AI pralaidumas: 640 Mbps IN, 512 Mbps OUT | |
| Audio sąsaja: 1 in/out (RCA) | |
| Signalizacijos sąsajos: 16 in, 8 out | |
| Sąsajos: RJ45 2500 Mbps, 4×USB, 4×HDMI, 2×VGA |
Neturime
Bendras
| Modelis | Dahua DHI-NVR608RH-64-XI |
| Tipas | 64 Channels 2U 8HDDs WizMind Network Video Recorder |
| Pagrindinis procesorius | Industrial-grade processor |
| Operacinė sistema | Embedded Linux |
| Operacinė sąsaja | Web, Local GUI |
| AI įrašymo įrenginiu | Face detection, face recognition, video metadata (human, motor vehicles, non-motor vehicles), SMD Plus |
| AI pagal kamerą | Face detection, face recognition, video metadata, SMD Plus, stereo analysis, crowd distribution, people counting, ANPR, vehicle density, object monitoring |
| Perimeter Protection (Recorder) | 24 channels, 10 IVS rules per channel |
| Perimeter Protection (Camera) | 64 channels |
| Face Detection Attributes | Gender, age group, glasses, expressions, face mask, beard |
| Face Detection (Recorder) | 4 channels (up to 12 face images/s per channel) |
| Face Detection (Camera) | 64 channels |
| Face Recognition Database | Up to 40 face databases, 300,000 images total, 48 GB capacity, supports name, gender, birthday, address, credential info, countries & regions |
| Face Recognition (Recorder) | 20 FD (by camera) + FR (by recorder), 20 face images/s; or 4 FD + FR (by recorder), 12 face images/s |
| Face Recognition (Camera) | 64 channels |
| SMD Plus įrašymo įrenginiu | 32 channels: Filters humans/motor vehicles, reduces false alarms from leaves, rain, light |
| SMD Plus by Camera | 64 channels |
| Video Metadata by Recorder | 8 channels |
| Video Metadata by Camera | 32 channels |
| Human Attributes | Top color/type, hat, bag, age, gender, umbrella |
| Motor Vehicle Attributes | Plate, color, model, logo, ornament, calling |
| Non-Motor Vehicle Attributes | Model, color, passenger count, helmet |
| ANPR by Camera | 32 channels |
| License Plate Database | 20,000 blocklist/allowlist entries |
| Access Channels | 64 channels |
| Network Bandwidth (AI off) | 1024 Mbps incoming/recording, 800 Mbps outgoing |
| Network Bandwidth (AI on) | 512 Mbps incoming/recording, 400 Mbps outgoing |
| Supported Resolutions | 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 5 MP, 4 MP, 1080p, 720p, D1 |
| Iškodavimo pajėgumas | 2×32 MP@30fps, 2×24 MP@30fps, 4×16 MP@30fps, 8×8 MP@30fps, 16×4 MP@30fps, 32×1080p@30fps, 72×720p@30fps, 160×D1@30fps |
| Vaizdo išvestis | 2 VGA, 4 HDMI; max HDMI3: 8K, HDMI1/2: 4K, HDMI4/VGA: 1080p |
| Daugiakanalis ekranas | Main: 1/4/8/9/16/25/36/64; Sub: 1/4/8/9/16/25/36 |
| Trečiųjų šalių kamerų prieiga | ONVIF, Sony, Axis, Arecont, Pelco, Canon, Samsung |
| Vaizdo glaudinimas | Smart H.265+, H.265, Smart H.264+, H.264, MPEG4, MJPEG |
| Garso glaudinimas | G.711a, G.711u, PCM, G726 |
| Tinklo protokolai | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, P2P, Auto Registration, ISCSI |
| Prieiga per mobiliuosius įrenginius | iOS, Android |
| Suderinamumas | ONVIF (Profiles S/T/G), CGI, SDK |
| Web Browser Compatibility | Chrome, IE 9+, Firefox |
| Tinklo režimas | Multi-address, load balancing, fault tolerance, port binding |
| Playback Channels | Up to 16 channels |
| Recording Modes | Manual, alarm, motion detection, schedule |
| Backup Methods | USB, portable HDD, eSATA, network, burner |
| Playback Controls | Play, pause, stop, fast/reverse, frame-by-frame, full screen, cut/file backup, zoom, audio on/off |
| Storage Configuration | Disk groups, RAID 0/1/5/6/10, hot-swapping |
| Signalizacijos įėjimas / išėjimas | 16 input channels, 8 output channels |
| General Alarms | Motion detection, tampering, video loss, scene change, PIR, IPC external alarm |
| Anomaly Alarms | Camera offline, storage error, disk full, IP/MAC conflict, login lock, fan abnormality |
| Smart Alarms | Face detection/recognition, intrusion/tripwire, SMD Plus, ANPR, people counting, stereo analysis, heat map |
| Signalizacijos sąsaja | Record, snapshot, IPC alarm out, buzzer, log, preset, email |
| Garso įvestis | 1 RCA |
| Garso išvestis | 2 RCA |
| HDD Interface | 8 SATA ports, up to 16 TB per drive (depends on environment) |
| eSATA | 1 port |
| RS-232 / RS-485 | 1 RS-232, 1× RS-485 A/B |
| USB prievadai | 4 (2× USB 2.0 front, 2× USB 3.0 rear) |
| HDMI / VGA Ports | 4 HDMI, 2 VGA |
| Tinklo prievadai | 2 (10/100/1000/2500 Mbps, RJ-45) |
| Maitinimo šaltinis | 100–240 VAC, 50/60 Hz |
| Atsarginis maitinimas | Yes |
| Energijos suvartojimas | <18 W (without HDD) |
| Grynasis svoris | 8.14 kg (17.95 lb) |
| Bendras svoris | 12.24 kg (26.98 lb) |
| Produkto matmenys | 444 × 476 × 95 mm (17.48 × 18.74 × 3.74 in) |
| Pakuotės matmenys | 571 × 618 × 219 mm (22.48 × 24.33 × 8.62 in) |
| Darbinė temperatūra | –10 °C to +55 °C (14 °F to 131 °F) |
| Darbo drėgmė | 10%–93% RH |
| Instaliacija | Type Rack or desktop |
| Sertifikatai | FCC Part15 Class A; CE-EMC EN 55032:2020 Class A; EN 61000-3-2/3; EN 55024; EN 55035; EN 50130-4; CE-LVD EN 62368-1 |
| Svoris | 1,554 kg |
|---|
