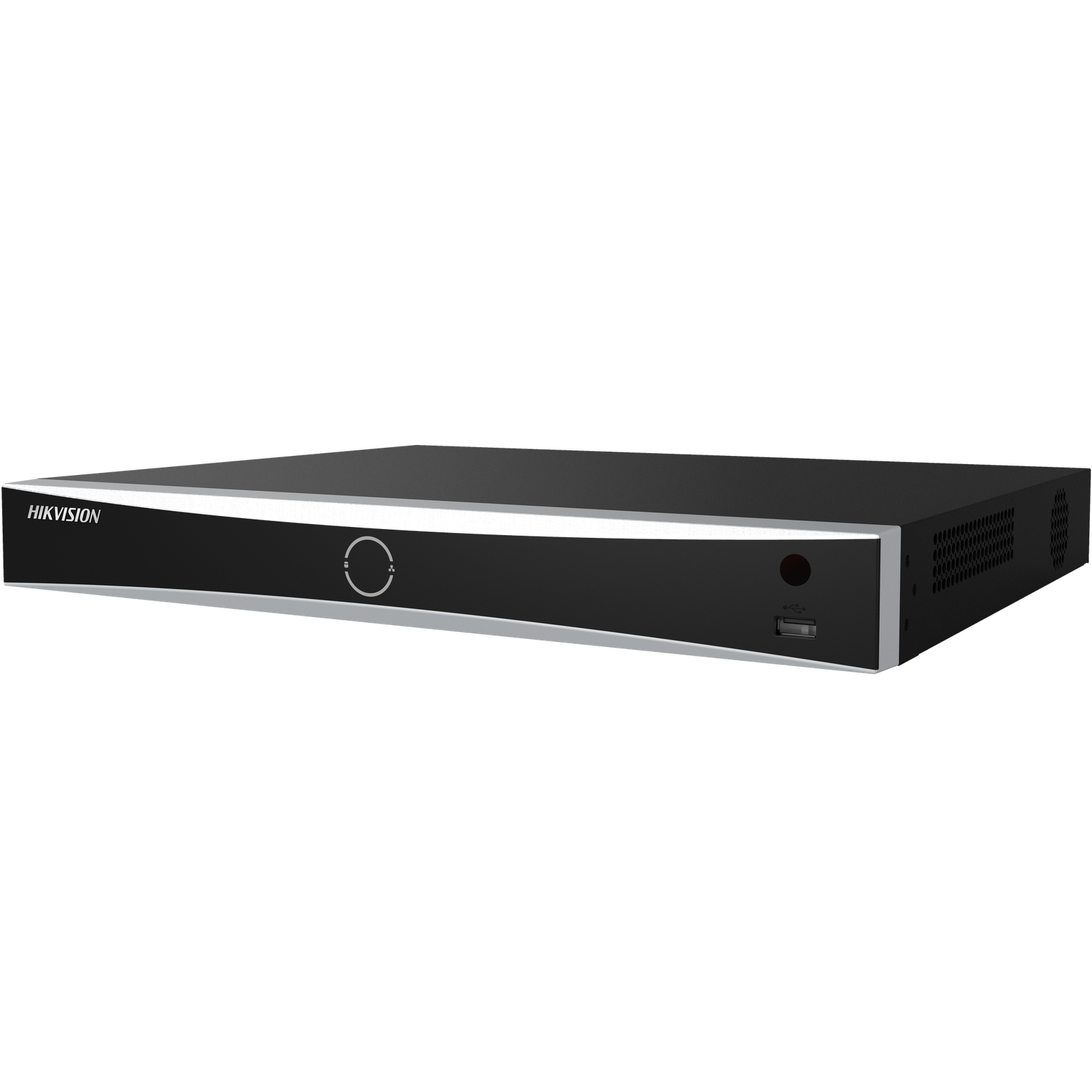

Hikvision DS-7616NXI-K2/16P(D)/Alarm4+1
18,17€ / 48 mėn.
441,40€(Kaina be PVM)534,10€(Kaina su PVM)
| Modelis: DS-7616NXI-K2/16P(D)/Alarm4+1 | |
| Kanalų skaičius: 16 | |
| PoE prievadai: 16 | |
| AcuSense arba veidų atpažinimo kanalai: 4 | |
| HDD palaikymas: 2 HDD iki 10TB | |
| Vaizdo išėjimai: VGA, HDMI | |
| Vaizdo suspaudimas: H.265+ | |
| Įvesties srautas: 160 Mbps | |
| Išvesties srautas: 256 Mbps |
Turime
Išmanioji analizė
| AI by NVR | Facial recognition, perimeter protection, video structuralization |
| AI pagal kamerą | Facial recognition, perimeter protection, video structuralization, motion detection2.0, ANPR, people counting, VCA |
| Variklis | 1 engine can run an intelligent algorithm, engine mode is adjustable |
Veido atpažinimas
| Veido aptikimas ir analizė | Face picture comparison, human face capture, face picture search |
| Veido paveikslų biblioteka | Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) |
| Face Picture Comparison (Captured from Camera) | 8-ch; Comparison speed: 24 pictures per second |
| Veido aptikimas ir analizės našumas | 8-ch 2 MP, up to 8 MP |
AcuSearch
| By NVR | up to 4-ch |
| Pagal kamerą | All channels *：The camera should enable AcuSearch function |
Perimetro apsauga
| By NVR | 8-ch 2 MP, up to 8 MP |
| Pagal kamerą | perimeter protection powered by self-learning with AcuSense cameras: All channels |
Self-Learning
| Perimetro apsauga | All channels; Analysis speed: 4 pictures per second; Note: Enabling self-learning would occupy an engine. |
Video Structuralization
| Structured Analysis | 6-ch 2 MP, up to 8 MP |
| Veido paveikslų biblioteka | Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 500,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) |
| Veido nuotraukos palyginimas | 8-ch; Comparison speed: 16 pictures per second |
ANPR
| Pagal kamerą | All channels |
| Numerių atributai | Vehicle brand, vehicle color, vehicle type |
| Transporto priemonės atributai | Plate number, license plate color, license plate type |
Vaizdas ir garsas
| IP vaizdo įrašų įvestis | 8-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Įeinantis pralaidumas | 128 Mbps |
| Išeinantis pralaidumas | 256 Mbps |
| HDMI išvestis | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| Vaizdo išvesties režimas | HDMI/VGA independent output |
| CVBS išvestis | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Garso išvestis | 1-ch, RCA (Linear, 1 KΩ) |
| Dvipusis greitis | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| VGA išvestis | 1920 × 1080/60Hz |
Iškodavimas
| Vaizdo iškodavimo formatas | H.265/H.265+/H.264/H.264+ |
| Iškodavimo pajėgumas | 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps) |
| Sinchroninis atkūrimas | 8-ch |
| Įrašymo raiška | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
Internetas
| Nuotolinis prisijungimas | 128 |
| Protokolai | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Suderinama naršyklė | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
| Tinklo sąsaja | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
PoE
| Sąsaja | 8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| Sistemos parametrai | ≤ 120 W |
| Standartas | IEEE 802.3 af/at |
Sąsajos
| SATA | 2 SATA interfaces; 3.5-inch HDD |
| eSATA | 1 eSATA interface |
| Talpa | Up to 16 TB capacity for each disk |
| Serijinė sąsaja | N/A |
| USB sąsaja | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Ispėjamojo signalo įvestis/išvestis | 4/1 |
Pagrindinis
| GUI kalba | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian |
| Maitinimas | 100 to 240 VAC, 50 to 60 Hz |
| Energijos sunaudojimas | ≤ 50 W (without HDD and PoE off) |
| Darbinė temperatūra | -10 to 55° C (14 to 131° F) |
| Atsparumas drėgmei | 10 to 90% |
| Dydis | 385 × 315 × 52 mm ( 15.2″× 12.4″ × 2.0″) |
| Svoris | ≤ 3 kg (without HDD, 2.2 lb.) |
Sertifikatai
| Sertifikatai | CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
| CE | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
| Svoris | 4,552 kg |
|---|---|
| Gamintojas |
