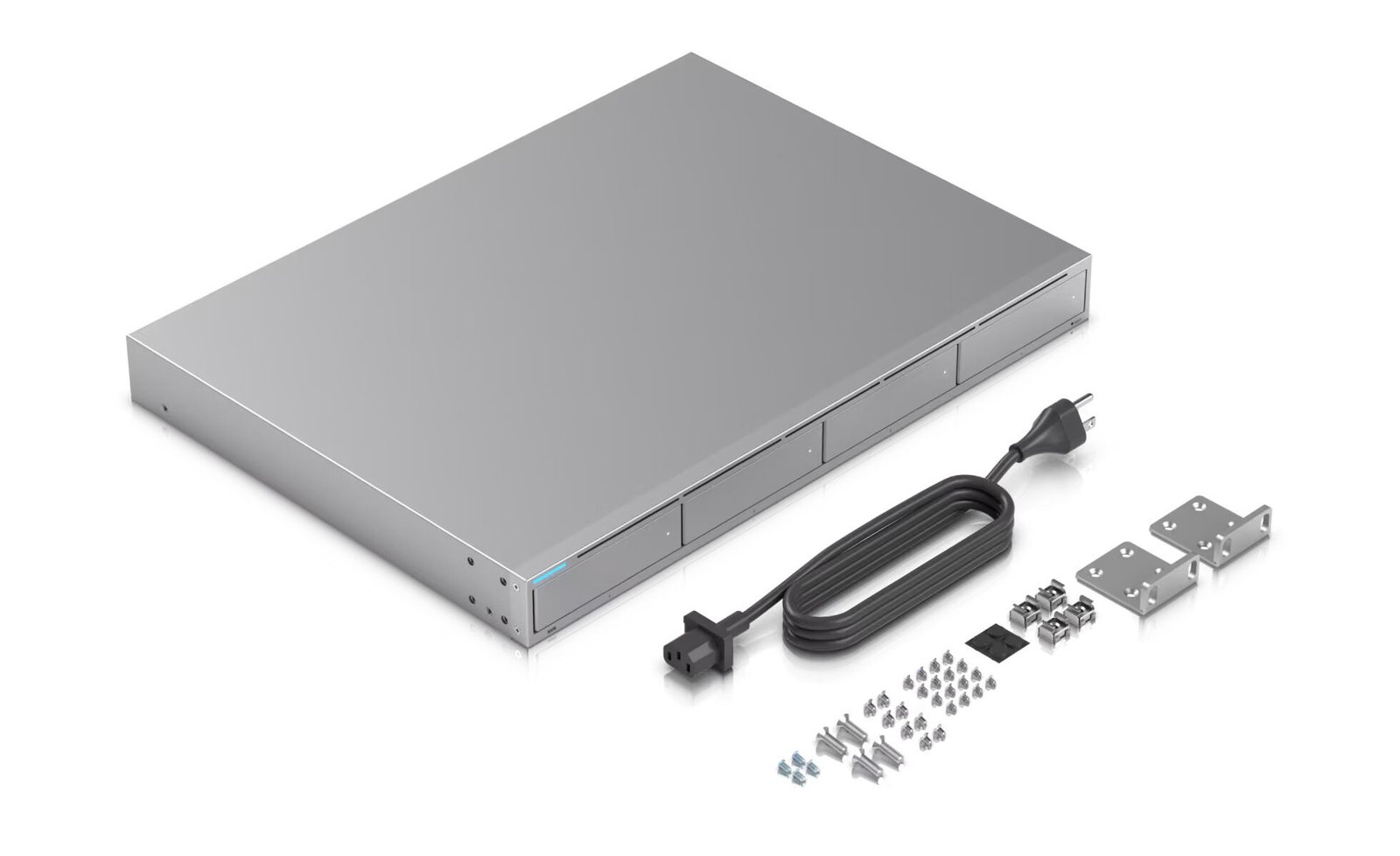

Ubiquiti UniFi UNVR-EU

• Facial Recognition
• Facial Detection and AnalyticsSearch by picture is supported
• Face Picture Library32 libraries；100, 000 pictures
• Face Picture Comparison


  16-ch face pictures comparison alarm,

  Alarm linkage actions: recording, audio warning, notify surveillance center, send email



• Perimeter Protection
• Human/Vehicle AnalysisUp to 16-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

• Video and Audio
• IP Video Input16-ch；Up to 12 MP resolution
• HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA Simultaneous Output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Incoming Bandwidth320 Mbps
• Outgoing Bandwidth256 Mbps
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Decoding
• Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
• Decoding Capability16-ch @ 1080p
• Synchronous playback16-ch
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF

• Network
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Remote Connection128
• Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

• Auxiliary Interface
• SATA4 SATA interfaces
• eSATA1 eSATA interface
• CapacityUp to 10 TB capacity for each HDD
• Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/8

• General
• Power Supply≤ 80 W
• Consumption≤ 30 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %
• Chassis19-inch rack-mounted 1.5U chassis
• Dimension (W × D × H)445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
• ≤ 5 kg (11 lb)
