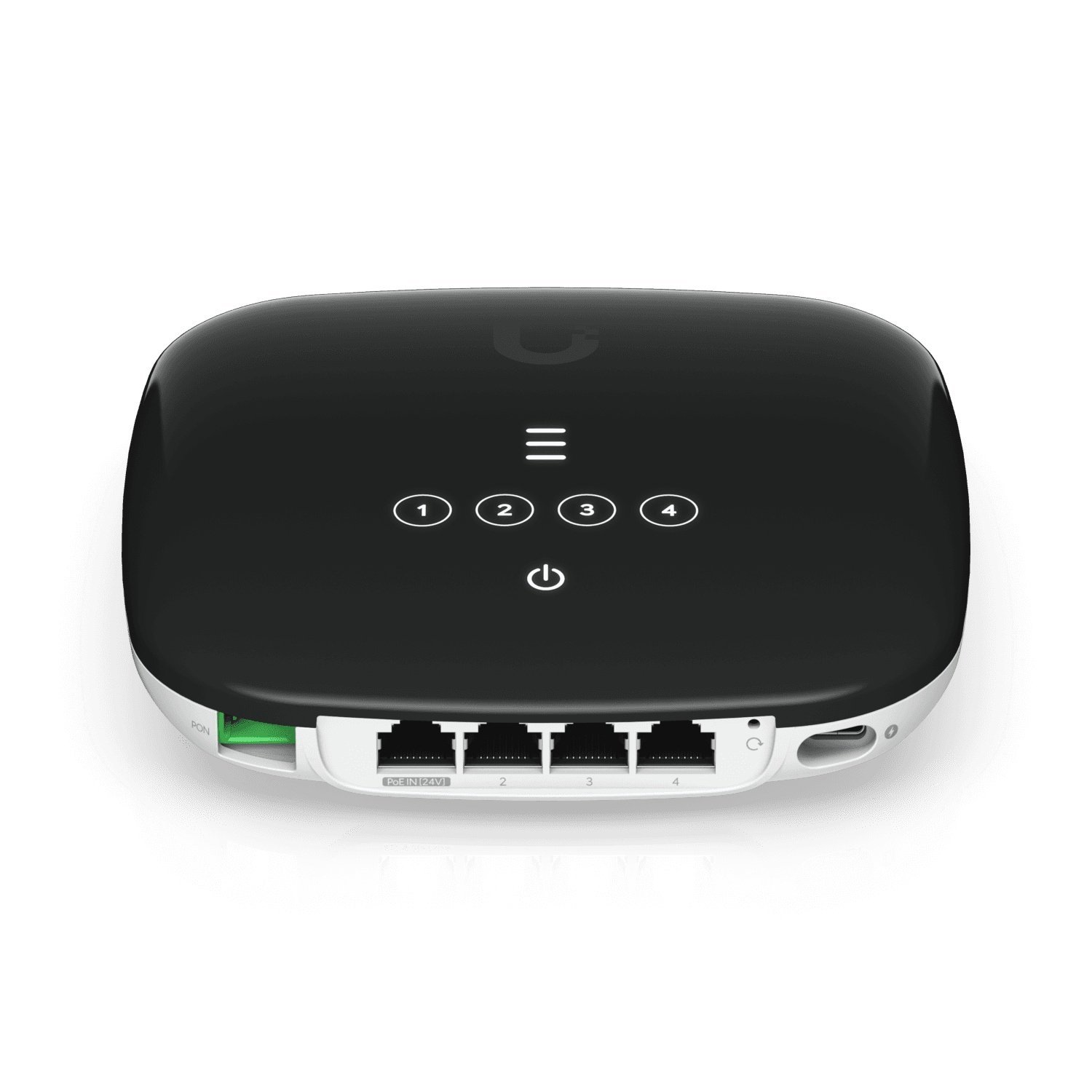

Ubiquiti UniFi UF-WIFI6
113,86€(Kaina be PVM)137,77€(Kaina su PVM)
- Modelis: Ubiquiti UF-WIFI6
- WAN: 1x SC/APC, ITU-G.984 GPON
- LAN: 4x GbE RJ45
- Maitinimas: USB-C 5V DC, 3A / 24V pasyvus PoE, 0.5A
- Energijos suvartojimas: 11W
- Duomenų gavimo greitis (downstream): 2.488 Gbps
- Duomenų siuntimo greitis (upstream): 1.244 Gbps
- Wi-Fi greitis: iki 300 Mbps @ 2.4 GHz, iki 1.2 Gbps @ 5 GHz
Neturime
- Bendras
- Matmenys140.8 x 141.5 x 31.7 mm (5.5 x 5.6 x 1.3″)
- Svoris415 g (14.6 oz)
- Dėklo medžiagaUV-stabilized polycarbonate (PC110U)
- Tinklo sąsaja(1) SC/APC, ITU-G.984 GPON WAN port; (4) GbE RJ45 LAN ports
- WiFi Standards802.11 b/g/n/ac/ax (5/2.4 GHz)
- Kontrolės sąsajaEthernet In-Band
- Maitinimo būdasUSB-C 5V DC, 3A; 24V passive PoE, 0.5A
- Maitinimo šaltinis5V DC, 3A power adapter, 1.5 m cord (included)
- Passive PoE Pins2-pair (4, 5+; 7, 😎
- Palaikomas įtampos diapazonas10–30V DC (passive PoE); 5V DC (adapter)
- Maks. energijos suvartojimas11W
- Total Non-blocking Line RateDownstream: 2.488 Gbps; Upstream: 1.244 Gbps
- Optical Module TX Range0.5 to 5 dBm
- Optical Module RX Range-8 to -28 dBm
- Max. WiFi TX Power2.4 GHz: 20 dBm; 5 GHz: 20 dBm
- MIMO2 x 2 (2.4 GHz and 5 GHz)
- Max. WiFi Radio Rate2.4 GHz: 300 Mbps; 5 GHz: 1.2 Gbps
- Antenos stiprinimas2.4 GHz: 1 dBi; 5 GHz: 3 dBi
- Mygtukas(1) Factory reset
- Aplinkos darbinė temperatūra-15 to 45° C (5 to 113° F)
- Darbinė aplinkos drėgmė10 to 90% noncondensing
- SertifikataiFCC, IC, CE
- Atitinka NDAAYes
- LEDs – PON Status(3) Signal LEDs with multicolor indicators for signal strength
- LEDs – EthernetSteady white: link up; Blinking white: activity; OFF: link down
- LEDs – PowerWhite: ON
- ModeONU/ONT layer 2/3 Ethernet switch
- PaslaugosWeb server, telnet, NAT, bridging/routing, firewall, application passthrough
- ĮrankiaiDashboard, monitoring, alarms, logs
- Other FeaturesRemote reset, reboot, firmware upgrade, VLAN support
- SaugumasGEM Port Encryption
- Ubiquiti Specific FeaturesUISP Mobile App
- Belaidžio ryšio saugumasWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
- Operating WavelengthTX: 1310 nm; RX: 1490 nm
- Line CodeScrambled NRZ
- Optical Interface Bit RateDownstream: 2488.32 Mbit/s; Upstream: 1244.16 Mbit/s
- Physical Reach20 km
- Palaikomi duomenų perdavimo greičiai (802.11b)1, 2, 5.5, 11 Mbps
- Palaikomi duomenų perdavimo greičiai (802.11g)6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Palaikomi duomenų perdavimo greičiai (802.11n)6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
- Palaikomi duomenų perdavimo greičiai (802.11ac)6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
- Supported Data Rates (802.11ax)8.6 Mbps to 1.2 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80)
