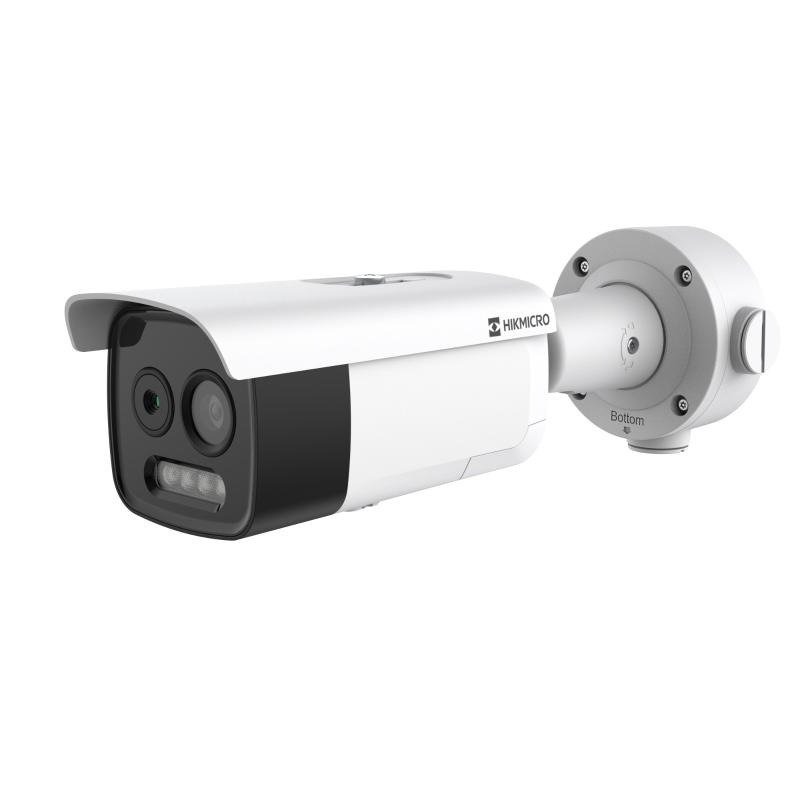

Termografinė kamera HikMicro HM-TD2628T-3/G1/T3A

Name: Termografinė kamera HikMicro HM-TD2628T-3/G1/T3A
SKU: KIPHMTD2628T3G1T3A
Availability: InStock

26,23€ / 60 mėn.

791,63€(Kaina be PVM)957,87€(Kaina su PVM) su PVM

Turime

SKU: KIPHMTD2628T3G1T3A

Patvirtinimai
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)KC (KSC9832: 2019; KSC9835: 2019)
AplinkosaugaCE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013IK10: IEC 62262-2002
SaugumasCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005LOA: SANS/IEC 60950-1

Garsinis ir vaizdinis signalas
Garso signalizacija Yes, for two types of audible alarm (VCA and Temperature Exception)2 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)
Vaizdinė signalizacijaYes. White light alarm with adjustable flashing frequencies
Baltos šviesos diapazonasUp to 30 m

Bendra informacija
Matmenys349.1 mm × 113 mm × 105mm
Energijos suvartojimas12 VDC ± 25%: 0.85A to 1.42 A, max. 12.8WPoE (802.3at, class 4): 42.5 V to 57 V, 0.22 A to 0.3 A, max. 12.8W
Maitinimo šaltinis12 VDC ± 25%, 24 VDC ± 25% two-core terminal blockPoE (802.3at, class 4)
Apsaugos lygisIP67 Standard, IK10TVS 6000V lightning protection, surge protection, voltage transient protection
Tinklo naršyklės kalba 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Svoris1710 g
Darbinė temperatūra / drėgmėTemperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less

Vaizdo efektas
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Tikslinė spalvaYes. Supported in white hot and black hot mode.

Sąsaja
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Signalizacijos įvestis2, alarm input (0-5 VDC)
Signalizacijos išvestis2, alarm output (alarm response actions configurable)
Garso įvestis1, 3.5 mm Mic in/Line in interfaceLine input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Garso išvestisLinear level, impedance: 600 Ω
Bendravimo sąsaja1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)

Tinklas
APIISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),OTAP
KlientasiVMS-4200, Hik-Connect
Vidinė atmintisMicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
ProtokolaiIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
SaugaUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
NaršyklėLive view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +Local service : Chrome 57.0+, Firefox 52.0 +

Išmanioji funkcija
Fire DetectionDynamic fire detection, up to 10 fire points detectable
Smoke DetectionSupport smoke detection on optical channel
Smoking DetectionUp to 10 smoking points detected
Temperatūros tikslumasMax (±2°C, ±2 %)
Temperatūros matavimas3 temperature measurement rule types (point, area, line), 21 rules in total
Temperatūros diapazonas-20 °C to 650 °C (-4 °F to 1202 °F)
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Vaizdas ir garsas
Garso glaudinimasG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Pagrindinis srautasThermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautasThermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
Vaizdo glaudinimasMain Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG

Video and Image
Spalvų paletės17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)

Svoris	2,421 kg
