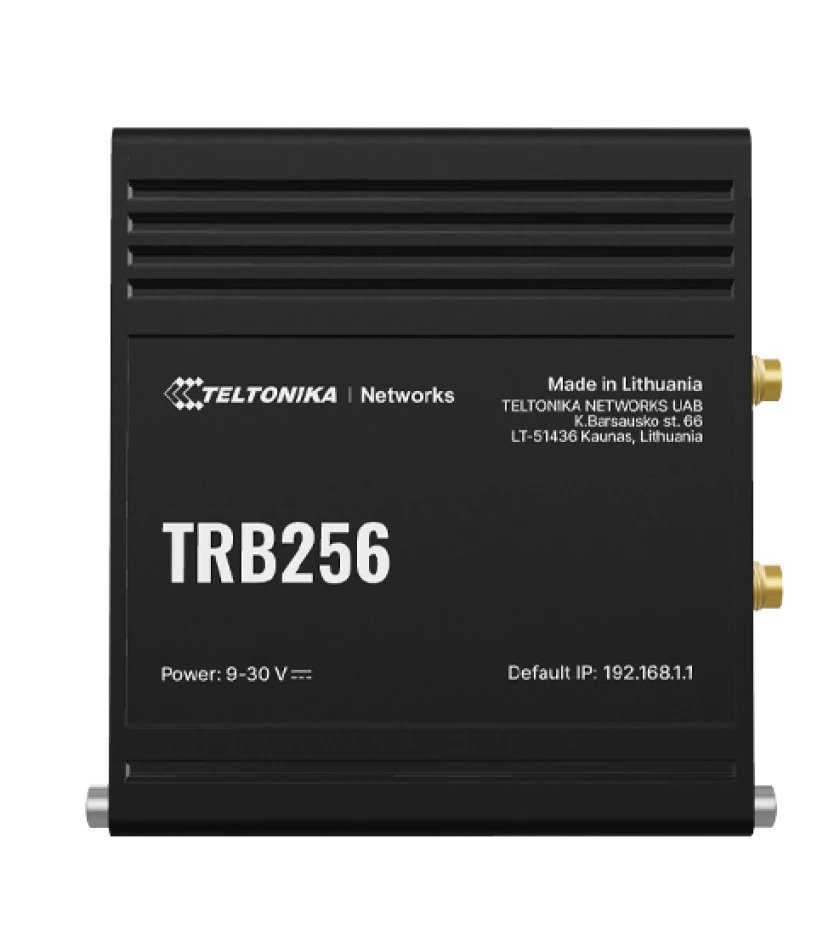

TELTONIKA pramoninė tinklo sąsaja LTE TRB256
7,49€ / 18 mėn.
109,21€(Kaina be PVM)132,15€(Kaina su PVM)
| Tipas: Tinklo sąsaja | |
| Modelis: Teltonika TRB256 | |
| Technologija: LTE (Cat1), 2G/4G | |
| Greitis: 10/100 Mbps | |
| Sąsajos: RTU (RS232 ir RS485) | |
| Protokolai: DNP3, DLMS, Modbus | |
| VPN palaikymas: Taip | |
| Nuotolinio valdymo sistema (RMS): Taip | |
| Operacinė sistema: RutOS | |
| Įėjimai/išėjimai: 3x In/Out | |
| SIM kortelių lizdai: 2x SIM | |
| GNSS/GPS: Taip | |
| Jungtys: SMA | |
| Apsaugos klasė: IP30 | |
| Darbinė temperatūra: -40°C iki +75°C | |
| Paskirtis: Pramoninis naudojimas | |
| Terminalų skaičius: 16 |
Turime
Pagrindinis
| Mobilus modulis | 4G LTE Cat M1 up to 588 DL/1119 UL kbps, Cat NB2 up to 127 DL/158.5 UL kbps, Cat NB1 up to 32 DL/70 UL kbps (simultaneous operation of cellular and GNSS connectivity is not supported) |
| 3GPP išleidimas | Release 14 |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail |
| Statusas | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Juodasis/baltasis sąrašas | Operator black/white list (by country or separate operators) |
| Grupės valdymas | Band lock, used band status display |
| SIM neaktyvumo apsaugos paslauga | Idle SIM remains inactive until switch occurs, preventing data usage |
| SIM PIN kodo valdymas | Setting, changing, disabling the SIM card’s PIN |
| APN | Auto APN |
| Tiltas | Direct connection (bridge) between mobile ISP and device on LAN |
| Perleidimas | Gateway assigns its mobile WAN IP address to another device on LAN |
| Tinklas | 1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Maršrutas | Static, Dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing |
| Interneto protokolai | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| VoIP praėjimo parama | H.323 and SIP-alg protocol NAT helpers |
| Ryšio stebėjimas | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Ugniasienė | Port forward, traffic rules, custom rules, TTL target customization |
| Ugniasienės būsenos puslapis | View Firewall statistics, rules, and counters |
| Prievadų valdymas | View, enable/disable device ports, auto-configure, change transmission speed |
| Tinklo topologija | Visual network representation showing device connections |
| Viešosios interneto prieigos taškas | Captive portal, Radius server, MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, customizable hotspot themes |
| DHCP | Static/dynamic IP allocation, DHCP relay, server configuration, status, static leases (MAC with wildcards) |
| QoS / išmanusis eilių valdymas (SQM) | Traffic priority by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | Supports over 25 providers; manual configuration possible |
| DNS per HTTPS | Proxy for secure DNS resolution |
| Tinklo atsarginės kopijos | VRRP, Wired options, automatic Failover, Mobile |
| SSHFS | Mount remote file system via SSH protocol |
| Eismo valdymas | Real-time monitoring, wireless signal charts, traffic usage history |
| Autentifikavimas | Pre-shared key, digital certificates, X.509, TACACS+, RADIUS users authentication, IP & login attempts block, time-based login blocking |
| Ugniasienė | Pre-configured rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T |
| Įsilaužimo prevencija | DDOS, port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan) |
| VLAN | Tag-based VLAN separation |
| Mobiliųjų kvotų kontrolė | Data limit, customizable period, warning limits, phone number |
| WEB filtras | Blacklist/Whitelist for site control |
| Prieigos kontrolė | SSH, Web interface, CLI, Telnet access control |
| SSL sertifikatas | Let’s Encrypt support |
| OpenVPN | Multiple clients/servers, 27 encryption methods (DES, AES, RC2, BF-CBC, CAST5) |
| IPsec | XFRM, IKEv1/IKEv2, 14 encryption methods (3DES, DES, AES128-256, GCM variants) |
| GRE | GRE tunnel, GRE over IPsec |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec |
| Stunnel | Add TLS encryption to existing clients/servers without code changes |
| DMVPN | IPsec VPNs, Phase 2/3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server |
| Tinc | Encryption, authentication, compression for tunnels; client/server |
| BACNET | Router mode, RS485, TCP support |
| OPC UA | Client/Server modes, TCP support |
| MODBUS | Server/Client, RS232, RS485, TCP, custom register block requests, multiple data formats |
| DNP3 | Station/Outstation modes, RS232, RS485, TCP |
| DLMS | Client mode, RS232, RS485, TCP |
| Teltonika API | Configurable API endpoints for data retrieval or modification |
| Stebėjimas | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event logs |
| FOTA | Firmware updates from server, automatic notifications |
| SSH | SSH (v1, v2) |
| SMS | Manage SMS status/configuration, HTTP POST/GET control |
| Call | Mobile data control, output toggling, reboot |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, etc. |
| MQTT | MQTT Broker/Publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
| ThingWorx | Monitor WAN type, IP, signal strength, and more |
| Kumuliškumas | Device model, serial number, IP, mobile cell ID, signal strength, and more |
| Azure IoT Hub | Data to server, direct methods for RutOS API calls |
| Sistemos CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB |
| FLASH saugykla | 16 MB |
| Operacinė sistema | RutOS (OpenWrt based Linux OS) |
| Kūrėjo įrankiai | SDK, Busybox shell, Lua, C, C++ |
| Pritaikymas | GPL customization (branding, colors, logos), Package Manager |
| GNSS | GPS, GLONASS, BeiDou, Galileo (in development) |
| Koordinatės | WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP | Networked Transport of RTCM via Internet Protocol |
| Geotvoros | Multiple configurable zones |
| RS232 | Terminal block: TX, RX, RTS, CTS |
| RS485 | Terminal block: D+, D-, R+, R- |
| I/O jungiklis | Set I/O conditions to initiate events |
| Sistemos parametrai | 2-pin in 16-pin industrial terminal block, 9 – 30 VDC, surge/reverse polarity protection |
| Energijos sunaudojimas | Idle: <2 W, Max: <3.5 W |
| Fizinės sąsajos | 1 x RJ45, 3 x configurable digital I/O, 2 SIM slots, SMA connectors for LTE/GNSS, reset button |
| Korpusas | Aluminium housing |
| Dydis | 83 x 25 x 74.2 mm |
| Svoris | 165 g |
| Montavimas | DIN rail, wall mount, flat surface (kit required) |
| Darbinė temperatūra | -40 °C to 75 °C |
| Drėgmė | 10% to 90% non-condensing |
| Įleidimo apsaugos reitingas | IP30 |
| Gamintojas |
|---|
