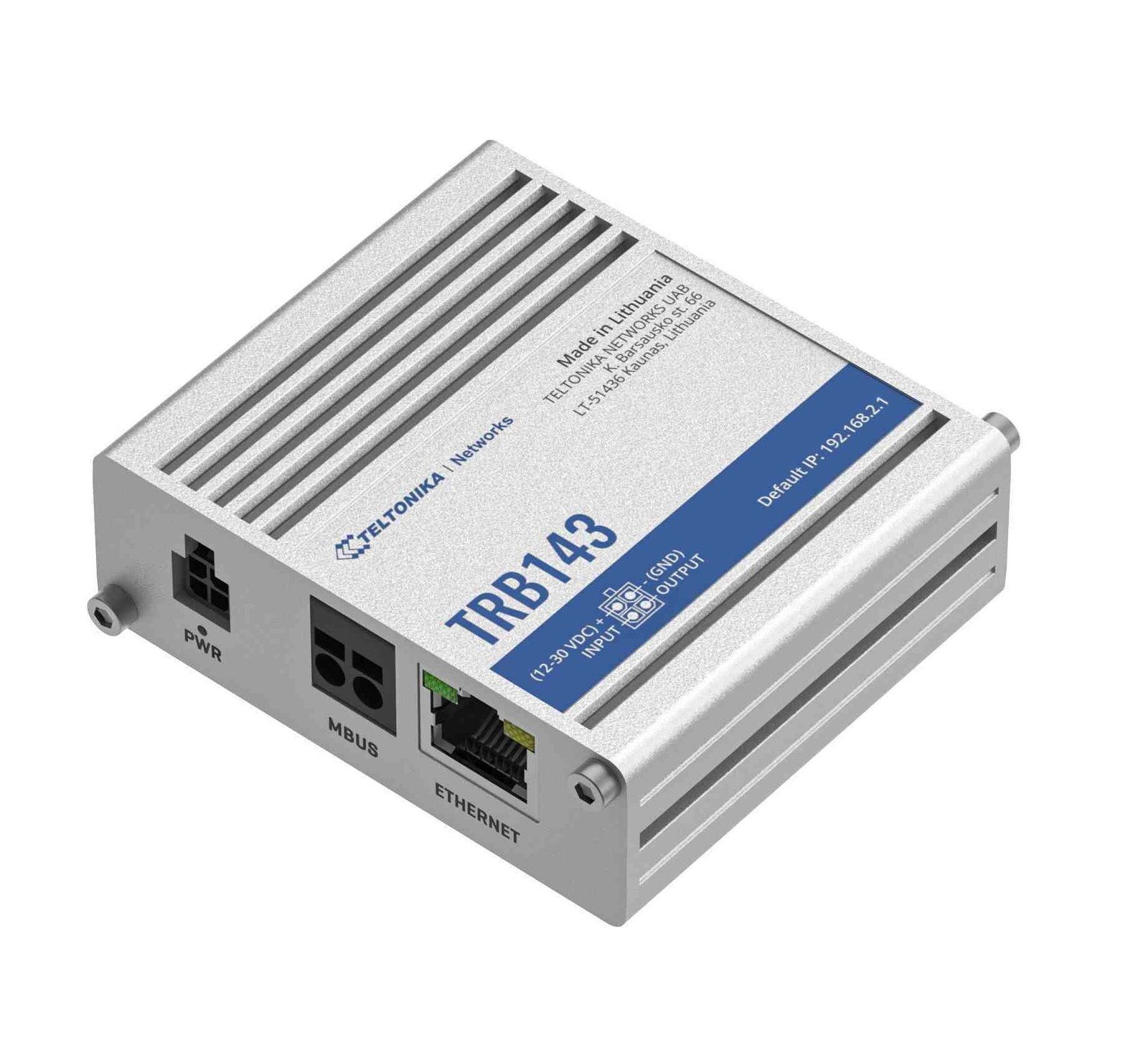

TELTONIKA mobilus ryšio sietuvas LTE TRB143
10,69€ / 24 mėn.
182,77€(Kaina be PVM)221,15€(Kaina su PVM) su PVM
- M-BUS sąsaja palaiko iki 250 pagalbinių įrenginių
- Ryšys 4G/LTE (Cat 4), 3G, 2G
-
Tvirtas aliuminis korpusas
Neturime
- Pagrindinis
- StatusasSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
- SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSDSupports sending and reading Unstructured Supplementary Service Data messages
- Juodasis/baltasis sąrašasOperator black/white list
- Multiple PDNPossibility to use different PDNs for multiple network access and services
- Grupės valdymasBand lock, Used band status display
- APNAuto APN
- TiltasDirect connection (bridge) between mobile ISP and device on LAN
- PerleidimasRouter assigns its mobile WAN IP address to another device on LAN
- LAN1 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- MaršrutasStatic routing
- Interneto protokolaiTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
- VoIP praėjimo paramaH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Ryšio stebėjimasPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- UgniasienėPort forward, traffic rules, custom rules
- DHCPStatic and dynamic IP allocation, DHCP Relay, Relayd
- QoS / išmanusis eilių valdymas (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNSSupported >25 service providers, others can be configured manually
- Tinklo atsarginės kopijosVRRP, Wired options, each of which can be used as an automatic Failover, Mobile
- Apkrovos balansavimasBalance Internet traffic over multiple WAN connections
- SSHFSPossibility to mount remote file system via SSH protocol
- AutentifikavimasPre-shared key, digital certificates, X.509 certificates
- UgniasienėPre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Įsilaužimo prevencijaDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLANPort and tag based VLAN separation
- Mobiliųjų kvotų kontrolėCustom data limits for SIM card
- WEB filtrasBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Prieigos kontrolėFlexible access control of TCP, UDP, ICMP packets, MAC address filter
- OpenVPNMultiple clients and a server can run simultaneously, 12 encryption methods
- OpenVPN šifravimasDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
- IPsecIKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)GRE
- PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3 support
- StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs code
- DMVPNMethod of building scalable IPsec VPNs
- SSTPSSTP client instance support
- ZeroTierZeroTier VPN client support
- WireGuardWireGuard VPN client and server support
- ID rangeRespond to one ID in range [1;255] or any
- Nuotolinės prieigos leidimasAllow access through WAN
- Pasirinktiniai registraiMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
- Palaikomos funcijos01, 02, 03, 04, 05, 06, 15, 16
- Palaikomi duomenų formatai8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
- Protokolo palaikymasThe M-Bus interface can support up to 250 slave devices and can power up to 6 slave devices.
- ProtokolaiHTTP(S), MQTT, Azure MQTT
- MQTT GatewayAllows sending commands and receiving data from MODBUS Master through MQTT broker
- Palaikomi režimaiTCP Master, DNP3 Outstation
- WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
- FOTAFirmware update from server, automatic notification
- SSHSSH (v1, v2)
- SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
- CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
- TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTTMQTT Broker, MQTT publisher
- SNMPSNMP (v1, v2, v3), SNMP Trap
- JSON-RPCManagement API over HTTP/HTTPS
- MODBUSMODBUS TCP status/control
- RMSTeltonika Remote Management System (RMS)
- Cloud of ThingsAllows monitoring of: Device data, Mobile data, Network info, Availability
- ThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- CumulocityAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
- CPUARM Cortex-A7 1.3 GHz
- RAM256 MB, DDR3
- FLASH saugykla512 MB, SPI Flash
- WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
- FOTAUpdate FW
- RMSUpdate FW/configuration for multiple devices at once
- Nustatymų įsiminimasUpdate FW without losing current configuration
- Operacinė sistemaRutOS (OpenWrt based Linux OS)
- KalbosBusybox shell, Lua, C, C++
- Kūrėjo įrankiaiSDK package with build environment provided
- Įvestis1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
- Išvestis1 x Digital Output, Open collector output, max output 30 V, 300 mA
- ĮvykiaiEmail, RMS, SMS
- I/O jugglerAllows to set certain I/O conditions to initiate event
- Jungtys4-pin industrial DC power socket
- Įeinančios įtampos diapazonas12 30 VDC
- PoE (pasyvus)Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 50 VDC
- Energijos sunaudojimasIdle: 3 W, Max: 6 W
- Tinklas1 x RJ45 port, 10/100/1000 Mbps
- IOS1 x Digital Input, 1 x Digital Output on 4-pin power connector
- LED indikatoriai3 x connection type status LEDs, 3 x connection strength LEDs, 1x Power LED
- SIM1 x SIM slot (Mini SIM 2FF), 1.8 V/3 V
- Sistemos parametrai1 x 4-pin power connector
- Antenos1 x SMA for LTE
- PerkrovimasReboot/User default reset/Factory reset button
- Mbus1 x M-Bus Interface”
- KorpusasAluminum housing
- Dydis74.5 x 25 x 73 mm
- Svoris145 g
- MontavimasDIN rail (can be mounted on two sides), flat surface placement
- Darbinė temperatūra-40 C to 75 C
- Drėgmė10% to 90% non-condensing
- IP reitingasIP30
- ReguliavimasCB, CE, UKCA, RoHS, REACH, WEEE
- ESDEN 61000-4-2:2009
- RSEN 61000-4-3:2006 + A1:2008 + A2:2010
- EFTEN 61000-4-4:2012
