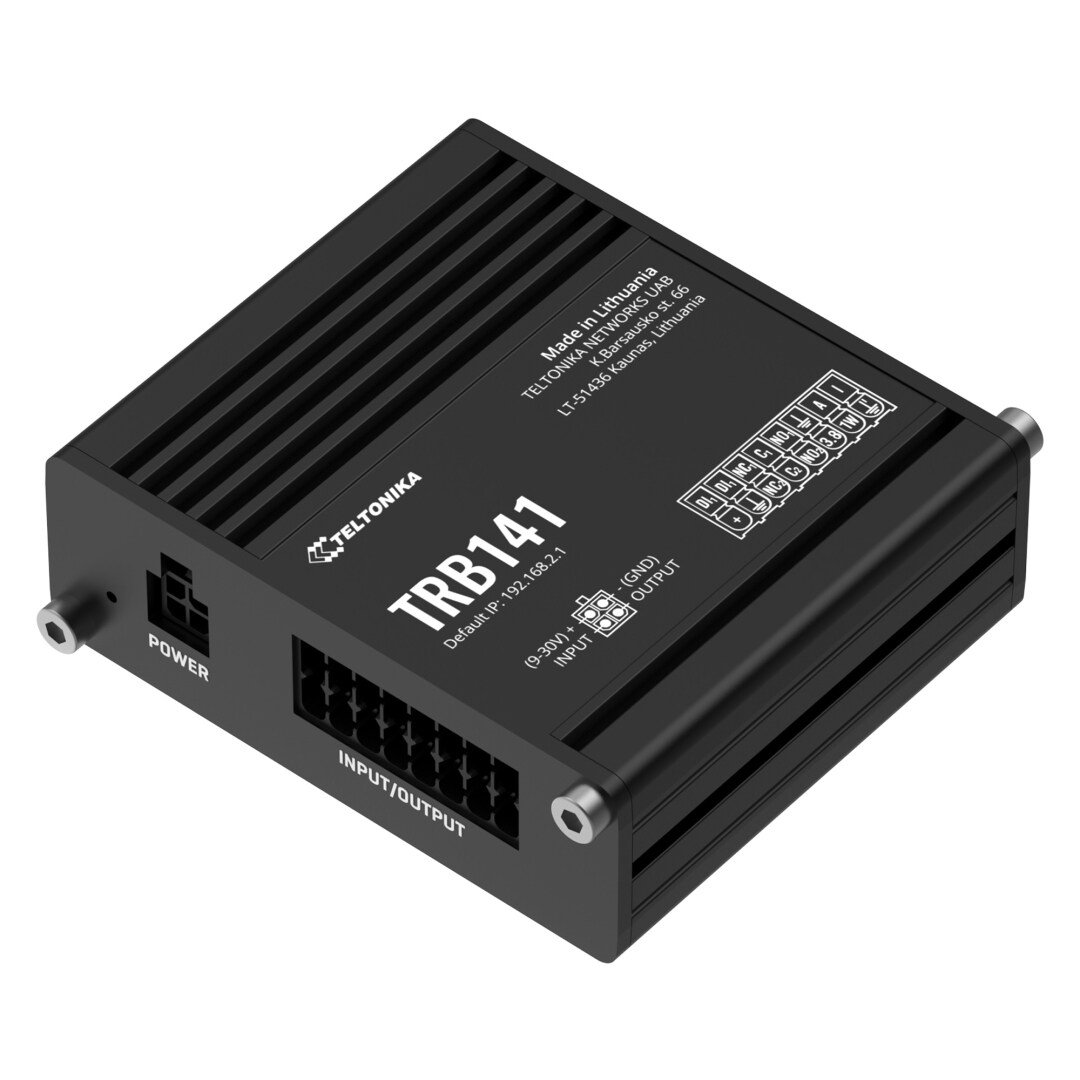

Sietuvas Teltonika TRB141
8,21€ / 24 mėn.
143,36€(Kaina be PVM)173,47€(Kaina su PVM)
| Tipas: Tinklo sietuvas | |
| Prekės ženklas: Teltonika | |
| Modelis: TRB141 | |
| Sąsaja: LTE | |
| Ryšio tipas: 4G/LTE (Cat1), 3G, 2G | |
| Protokolai: TCP, VPN | |
| Programinė įranga: RutOS | |
| Valdymas: RMS | |
| Įėjimai / išėjimai: 2× In/Out | |
| SIM lizdas: Taip | |
| Jungtis: SMA | |
| Apsaugos klasė: IP30 | |
| Pramoninis |
Liko tik 1. Reikia daugiau? Susisiekite su mumis.
Bendras
| Mobilus modulis | 4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps |
| 3GPP versija | Release 12 |
| Statusas | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Block/Allow list | Operator block/allow list (by country or individual operators) |
| Multiple PDN | Use of multiple PDNs for network access and services |
| Grupės valdymas | Band lock, used band status display |
| SIM PIN kodo valdymas | Setting, changing or disabling SIM PIN |
| APN | Auto APN |
| Tiltas | Direct mobile ISP-to-LAN device connection |
| Perleidimas | Gateway assigns mobile WAN IP to LAN device |
| Maršruto parinkimas | Static routing |
| Protokolai | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT |
| VoIP praėjimo parama | H.323 and SIP-alg NAT helpers for VoIP routing |
| Ryšio stebėjimas | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection |
| Užkarda | Port forward, traffic rules, custom rules, TTL target customization |
| Ugniasienės būsenos puslapis | Displays Firewall statistics, rules, and counters |
| Port management | View and control device ports, speed, and auto-configuration |
| Tinklo topologija | Visual network layout showing connected devices |
| DHCP | Static/dynamic IP allocation, relay, server configuration, leases with MAC wildcards |
| QoS / SQM | Traffic priority by source/destination, service, protocol, port; WMM, 802.11e |
| DDNS | Supports >77 providers, manual config available |
| DNS per HTTPS | Secure DNS via HTTPS proxy |
| Tinklo atsarginės kopijos | Mobile, VRRP, Wired auto failover options |
| SSHFS | Mount remote file system via SSH |
| Eismo valdymas | Real-time monitoring, signal charts, traffic history |
| Autentifikavimas | Pre-shared key, digital/X.509 certificates, TACACS+, RADIUS, IP/login blocking, time-based login blocking, random password generator |
| Firewall config | Preconfigured via WebUI, full CLI access, DMZ, NAT, NAT-T, NAT64 |
| Įsilaužimo prevencija | DDOS, SSH/HTTP/HTTPS attack prevention, port scan defense |
| VLAN | Port and tag-based VLAN separation |
| Mobiliųjų kvotų kontrolė | Data limits, custom period/start, warnings, phone number |
| WEB filtras | Blacklist, whitelist for web access control |
| Prieigos kontrolė | Control access to SSH, Web UI, CLI, Telnet |
| Certificate Manager | Create CA, server, client, Let’s Encrypt, SCEP certificates |
| OpenVPN | Multiple client/server support, 27 encryption methods |
| OpenVPN šifravimas | Supports DES, RC2, DES-EDE, AES (128/192/256-bit) in CBC, CFB, OFB, GCM modes, CAST5, BF, DESX |
| IPsec | XFRM, IKEv1/v2 with 14 encryption methods |
| GRE | GRE tunnel, GRE over IPsec supported |
| PPTP, L2TP | Client/server instances, L2TPv3, L2TP over IPsec |
| Stunnel | TLS proxy encryption for clients/servers without code changes |
| DMVPN | Scalable IPsec VPN, Phase 2/3, Dual Hub support |
| SSTP | SSTP client support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Encrypted/authenticated/compressed tunnels, client/server support |
| OPC UA | Client and Server modes |
| OPC UA connection types | TCP |
| Modbus MQTT Gateway | Send/receive MODBUS Server data via MQTT |
| MODBUS modes | Server, Client |
| MODBUS connection types | TCP |
| Pasirinktiniai registrai | MODBUS TCP block requests for file read/write to extend client functions |
| MODBUS data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII |
| Data to Server protocols | HTTP(S), MQTT, Azure MQTT |
| Data to Server features | Extract and send parameters from different protocols to one server; LUA scripting support |
| DNP3 modes | Station, Outstation |
| DNP3 connection types | TCP |
| DLMS/COSEM protocol | DLMS standard for utility meter data exchange |
| DLMS modes | Client |
| DLMS connection types | TCP |
| Web API support | Teltonika Networks Web API (beta); endpoint documentation available |
| WEB UI | HTTP/HTTPS access, status, config, firmware update, CLI, logs |
| FOTA | Firmware update from server, auto-notification |
| SSH | SSH v1/v2 |
| SMS management | SMS status, configuration |
| Call functions | Reboot, status, mobile data toggle, output control, answer/hang-up with timer |
| TR-069 | Support for OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT features | MQTT Broker and Publisher |
| SNMP support | SNMP v1/v2/v3, SNMP Trap, brute force protection |
| JSON-RPC | HTTP/HTTPS management API |
| RMS | Teltonika Remote Management System |
| ThingWorx platform | WAN type, IP, operator name, signal strength, network type monitoring |
| Cumulocity platform | Monitors model, revision, WAN/IP, Cell ID, ICCID, IMEI, operator, signal, reboots, firmware updates |
| Azure IoT Hub | Send parameters to cloud, direct API methods, zero-touch provisioning |
| AWS IoT Core | Device API via AWS Jobs support |
| CPU | ARM Cortex-A7 1.2 GHz |
| RAM | 128 MB DDR2 |
| FLASH saugykla | 512 MB SPI Flash |
| WEB UI features | Update/config profiles, backups, firmware check |
| FOTA update | Firmware update supported |
| RMS firmware management | Remote firmware/config updates |
| Nustatymų įsiminimas | Firmware update without config loss |
| Gamintojo nustatymų atstatymas | Restores default settings including IP, PIN, and user data |
| Firmware customisation | RutOS (OpenWrt based), branding, logos, colors |
| Kalbos | Busybox, Lua, C, C++, Python |
| Kūrėjo įrankiai | SDK package provided |
| GPL customization | Create custom firmware and Web UI |
| Package Manager | Install additional device software |
| Įvestys | 2 x Digital (passive/active), 1 x Isolated, 1 x Analog (4–20 mA), 1 x Configurable; Logic Low: 0–5 V, High: 8–30 V |
| Išvestys | 2 x Relay (latching/non-latching), 1 x Configurable open collector (max 30 V, 300 mA) |
| Events trigger | Email, RMS, SMS |
| I/O jungiklis | Set I/O conditions to trigger events |
| Maitinimo jungtis | 4-pin industrial DC socket |
| Maitinimo įvestis | 9–30 VDC, reverse polarity and surge protection >31 VDC 10 µs max |
| Energijos sąnaudos | < 5 W |
| Fizinės sąsajos | 3 x Digital Inputs, 1 x Analog input, 2 x Relays (16-pin), 2 x I/O pins (4-pin power), 1 x SMA for LTE, 1 x micro USB, 1 x SIM slot (Mini SIM – 2FF), 1 x 1-Wire |
| Būsenos LED indikatoriai | 3 x Connection type, 5 x Signal strength, 1 x Power |
| Atstatymo mygtukas | Reboot, user reset, factory reset |
| Korpuso medžiaga | Aluminium housing |
| Matmenys (P × A × G) | 74.5 x 25 x 64.4 mm |
| Svoris | 136 g |
| Montavimo galimybės | DIN rail, wall, flat surface (kits required) |
| Darbinė temperatūra | -40 °C to 75 °C |
| Darbinė drėgmė | 10% to 90% non-condensing |
| Apsauga nuo dulkių ir drėgmės | IP30 |
| Regulatory certifications | CE, UKCA, EAC, UCRF, ANRT, Kenya, ICASA, Anatel, NOM, RCM, Giteki |
| Approved operator | Deutsche Telekom AG |
| EMC compliance | Draft EN 301 489-1 V2.2.0, EN 301 489-52 V1.1.0 |
| EMC immunity | EN 61000-4-2:2009 (ESD), EN IEC 61000-4-3:2006+A1+A2 (Radiated), EN 61000-4-4:2012 (EFT), EN 61000-4-5:2014 (Surge), EN 61000-4-6:2014 (CS), EN 61000-4-11:2004 (DIP) |
| RF standards | EN 301 511 V12.5.1, EN 301 908-1/2/13 V13.1.1 |
| Safety standards | EN 62368-1:2014+A11:2017, EN IEC 62232:2017, EN 50385:2017, AS/NZS 62368.1:2018, IEC 62368-1:2018 |
