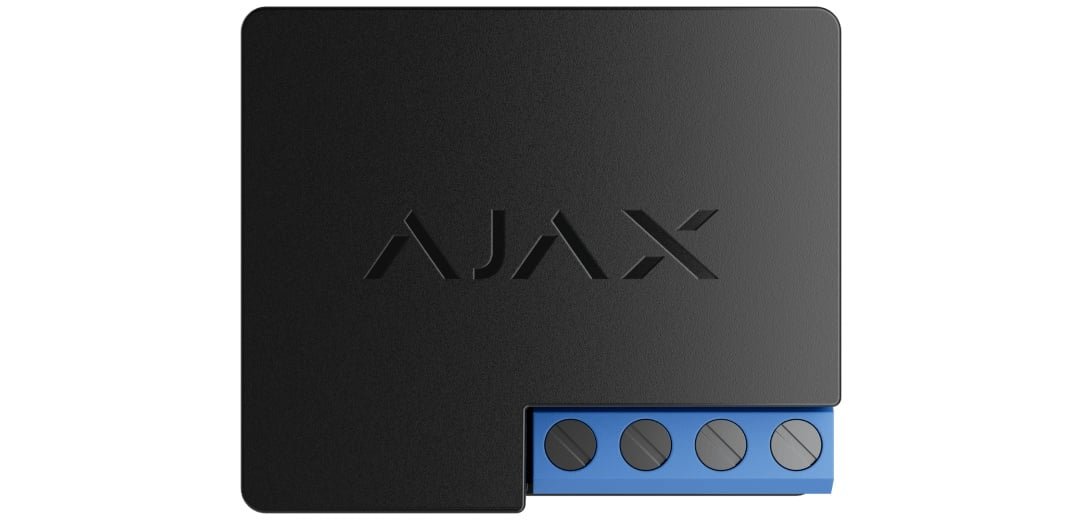

Relė Ajax Relay 38204.19.NC1 (7–24V)
5,19€ / 12 mėn.
49,84€(Kaina be PVM)60,31€(Kaina su PVM)
| Tipas: Relė | |
| Modelis: Ajax Relay | |
| Įtampos diapazonas: 7–24 V | |
| Apsaugos klasė: IP20 | |
| Gamintojo kodas: 38204.19.NC1 |
Liko tik 1. Reikia daugiau? Susisiekite su mumis.
Maitinimas
| External power supply | 7–24 V⎓, The relay does not supply additional power to devices connected to it. |
| Energy consumption | up to 1 W, In standby mode. |
| Cross-sectional area of the cable | 0.75–1.5 mm² (22–14 AWG) |
| Maximum resistive load | up to 5 A at 24 V⎓, up to 13 A at 110–230 V~ |
| Maximum inductive/capacitive load | up to 3 A at 24 V⎓, up to 8 A at 110–230 V~ |
| Voltage protection | minimum — 6.5 V⎓, maximum — 36.5 V⎓, Once the supply voltage exceeds the specified levels, the relay turns off automatically. |
| Temperatūros apsauga | over 149 °F at the installation site, over 185 °F inside the relay |
Bendravimas
| Jeweller ryšio technologija | Proprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more |
| Dažnių juostos | 866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region. |
| Maksimali efektyvi spinduliuojama galia (ERP) | up to 25 mW |
| Radijo signalo moduliacija | GFSK |
| Radijo ryšio veikimo nuotolis | up to 3,250 ft, Between the relay and a hub (or a range extender) in an open space., Calculate radio communication range at the facility |
| Šifruotas ryšys | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Dažnių šuoliai | To prevent radio interference and jamming., Learn more |
Pagrindinės savybės
| Valdymas per išmanųjį telefoną | The user can set up the relay configurations and receive notifications in an Ajax app. |
| Automatizavimo scenarijai | By arming/disarming, By schedule, By alarm, By temperature, By humidity 1, By CO₂ concentration 1, By touching LightSwitch / pressing Button, Learn more, 1 Scenarios by humidity and CO 2 concentrations are available when LifeQuality Jeweller is added to the system. |
| Reguliuojama impulso trukmė | from 0.5 to 255 s |
| Veikimo režimai | pulse, bistable |
| Kontakto būsena | normally open, normally closed |
Apsauga nuo sabotažo
| Apsauga nuo klastojimo | device authentication |
| Ryšio praradimo aptikimas | after 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more |
Korpusas
| Matmenys | 1.54″ × 1.3″ × 0.71″ |
| Svoris | 0.88 oz |
| Darbinės temperatūros diapazonas | from −4 °F to 147 °F |
| Drėgmė | up to 75% |
| Apsaugos klasė | IP20 |
| Svoris | 0,025 kg |
|---|---|
| Gamintojas |
