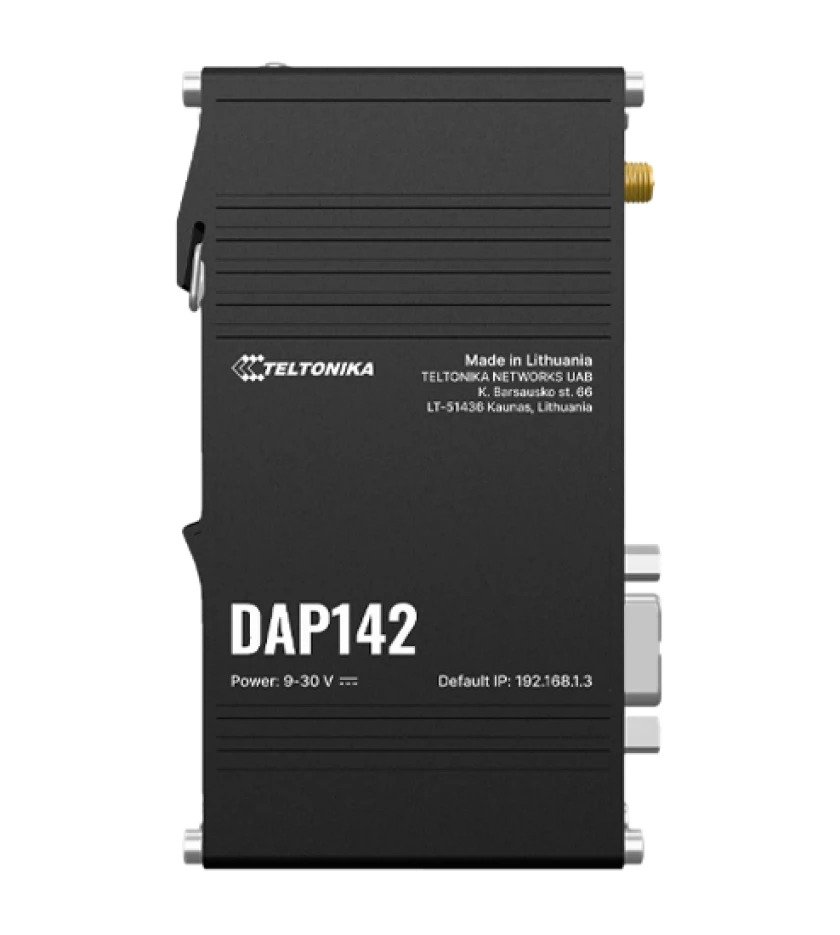

Prieigos taškas Teltonika DAP142
Preliminari mėnesinė įmoka nuo 6,23€ / 12 mėn.
60,59€(Kaina be PVM)73,31€(Kaina su PVM)
| Tipas: Prieigos taškas | |
| Modelis: Teltonika DAP142 | |
| LAN prievadai: 2x 100 Mbps | |
| Atmintis: 128MB DDR2 | |
| Flash atmintis: 16MB NOR | |
| Maitinimas: 3-pin, 9–30VDC | |
| Antenos jungtis: 1x RP-SMA | |
| Serijinė jungtis: 1x DB9 | |
| Wi-Fi vartotojų skaičius: iki 50 | |
| Dažnis: 50 MHz | |
| Darbinė temperatūra: -40…75°C |
Liko tik 1
Bevielis ryšys
| Belaidžio ryšio režimas | IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP |
| Wifi apsauga | WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, OWE, WPA2-EAP, WPA3-EAP |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi naudotojai | Up to 50 simultaneous connections |
| Belaidžio ryšio funkcijos | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Belaidžio ryšio MAC filtras | Allowlist, blocklist |
| Belaidžio ryšio QR kodų generatorius | Once scanned, a user will automatically enter your network without needing to input login information |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
Ethernet
| LAN | 2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
Tinklas
| Maršrutas | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Protokolai | TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL) |
| VoIP praėjimo parama | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Ryšio stebėjimas | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Ugniasienė | Port forward, traffic rules, custom rules |
| Ugniasienės būsenos puslapis | View all your Firewall statistics, rules, and rule counters |
| Prievadų valdymas | View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on |
| Tinklo topologija | Visual representation of your network, showing which devices are connected to which other devices |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
| QoS / išmanusis eilių valdymas (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | Supported >25 service providers, others can be configured manually |
| DNS per HTTPS | DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS |
| Tinklo atsarginės kopijos | Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover |
| Apkrovos balansavimas | Balance Internet traffic over multiple WAN connections |
| Hotspot 2.0 | Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks |
| SSHFS | Possibility to mount remote file system via SSH protocol |
| VRF support | Initial virtual routing and forwarding (VRF) support |
| Eismo valdymas | Real-time monitoring, wireless signal charts, traffic usage history |
Saugumas
| Autentifikavimas | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| Ugniasienė | Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Įsilaužimo prevencija | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| WEB filtras | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Prieigos kontrolė | Flexible access control of SSH, Web interface, CLI and Telnet |
| SSL sertifikatų generavimas | Let’s Encrypt and SCEP certificate generation methods |
VPN
| OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
| OpenVPN šifravimas | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| DMVPN | Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support. |
| Tailscale | Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol |
OPC UA
| Palaikomi režimai | Client, Server |
| Supported connection types | TCP |
MODBUS
| Palaikomi režimai | Server, Client |
| Supported connection types | TCP, RTU(RS232) |
| Pasirinktiniai registrai | MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality |
| Palaikomi duomenų formatai | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
DATA TO SERVER
| Protokolas | HTTP(S), MQTT, Azure MQTT |
| Data to server | Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature |
MQTT Gateway
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
DNP3
| Palaikomi režimai | Station, Outstation |
| Supported connection | TCP, RTU(RS232) |
DLMS/COSEM
| DLMS Support | DLMS – standard protocol for utility meter data exchange |
| Palaikomi režimai | Client |
| Supported connection types | TCP, RTU(RS232) |
| COSEM | Allows to scan meter COSEM objects for automatic detection and configuration |
API
| Teltonika Networks Web API (beta) support | Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com |
Monitoring & Management
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| El. paštas | Receive email message status alerts of various services |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| MODBUS | MODBUS TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
IoT platformos
| ThingWorx | Utility to interact with Thingworx cloud platform |
| Cumulocity – Cloud of Things | Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions |
| Azure IoT Hub | Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs |
| AWS IoT Core | Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality |
Sistemos Characteristikos
| Procesorius | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH saugykla | 16 MB serial NOR flash |
Nustatymai
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Nustatymų įsiminimas | Update FW without losing current configuration |
| Gamykloje nustatytų parametrų atstatymas | A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration |
FIRMWARE CUSTOMISATION
| Operacinė sistema | RutOS (OpenWrt based Linux OS) |
| Kalbos | Busybox shell (ash), Lua 5.1, C, C++ |
| Kūrėjo įrankiai | SDK package with build environment provided |
| GPL customization | You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs |
| Package Manager | The Package Manager is a service used to install additional software on the device |
Serial
| RS232 | Terminal block connector: TX, RX, RTS, CTS |
| Serial functions | Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client |
Energija
| Jungtis | 3-pos plugable terminal block |
| Įeinančios įtampos diapazonas | 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max |
| PoE (pasyvus) | Passive PoE over spare pairs. Possibility to power up through LAN2 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC |
| Energijos suvartojimas | Idle: < 1 W / Max: < 2 W |
Fizinės sąsajos
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| Būsenos LED indikatoriai | 2 x LAN type LED, 1 x Power LED |
| Energija | 1 x 3-pin power connector |
| Antenos | 1 x RP-SMA for Wi-Fi |
| RS232 | 1 x DB9 socket |
| Perkrovimas | Reboot/User default reset/Factory reset button |
| Kita | 1 x Grounding screw |
Fizinės specifikacijos
| Korpuso medžiaga | Aluminium housing |
| Matmenys (P x A x G) | 113.10 x 25 x 68.6 mm |
| Svoris | 149.2 g |
| Montavimas | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) |
Darbo aplinka
| Darbinė temperatūra | -40 °C to 75 °C |
| Drėgmė | 10% to 90% non-condensing |
| IP reitingas | IP30 |
Regulatory & Type Approvals
| Reguliavimas | CE, UKCA, CB, FCC/IC |
RF
| Standards (Wi-Fi 2.4 GHz, 5 GHz) | 47 CFR Part 15 Subpart C – § 15.247 |
| Gamintojas |
|---|
