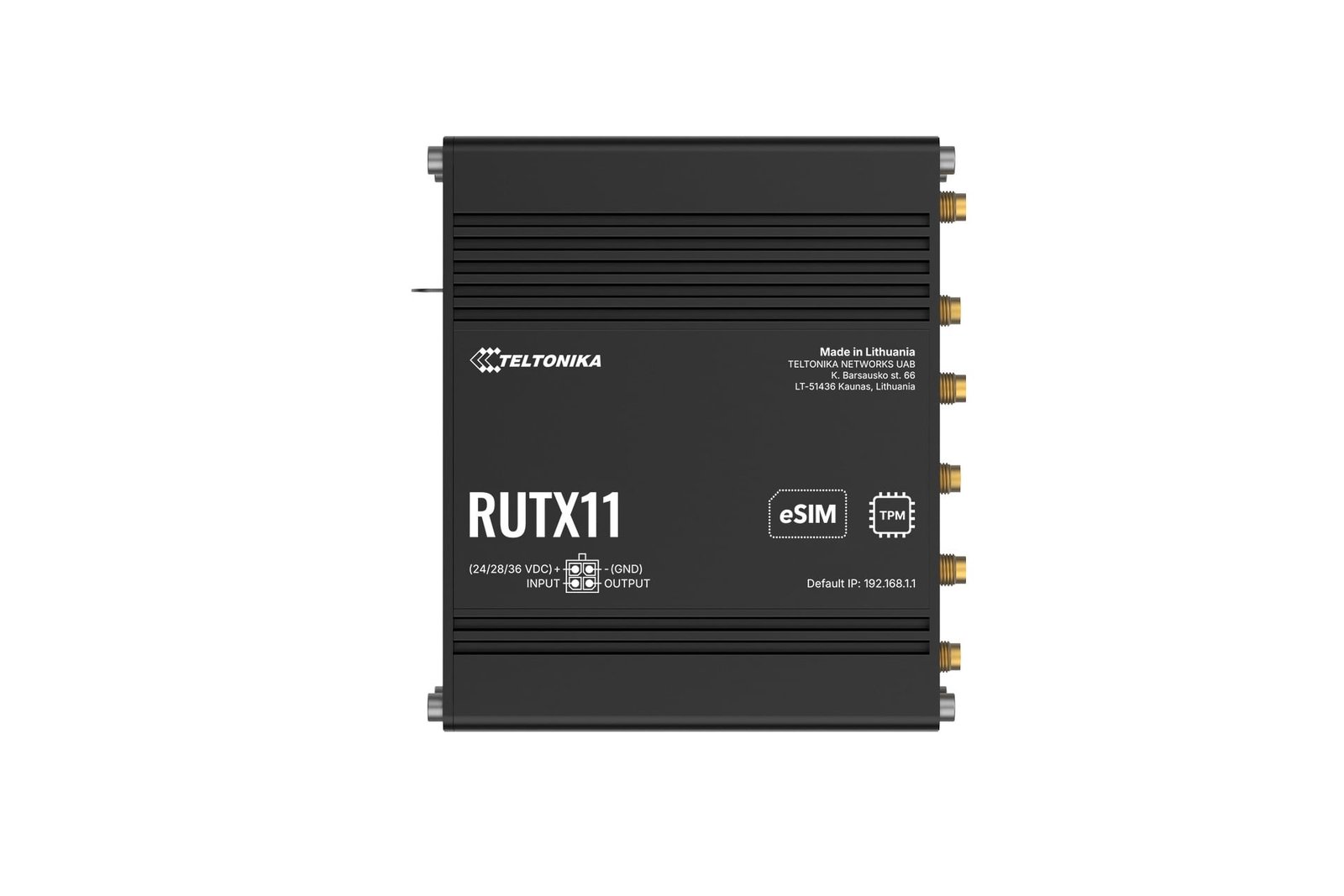

Pramoninis LTE modemas Teltonika RUTX11 20B200 su eSIM (LTE Cat 6, WiFi 5)
16,67€ / 48 mėn.
406,19€(Kaina be PVM)491,49€(Kaina su PVM) su PVM
- Tipas: Pramoninis LTE maršrutizatorius
- Prekės ženklas: TELTONIKA
- Modelis: RUTX11
- Mobilusis ryšys: LTE Cat 6, UMTS, GSM, GPRS
- Ryšys: Wi-Fi 5 (802.11ac), Bluetooth LE
- Tinklo sąsaja: 1 × WAN, 3 × LAN (10/100/1000 Mbps), USB
- SIM: 2 × SIM, eSIM
- Funkcijos: GNSS, SMS, I/O, Passive PoE (LAN1), RutOS
- Darbinė temperatūra: nuo -40 °C iki +75 °C
Turime
- Bendra informacija
- Mobilus modulis4G LTE Cat 6 up to 300 Mbps DL / 50 Mbps UL, 3G up to 42 Mbps DL / 5.76 Mbps UL
- 3GPP leidimasRelease 12
- eSIMConsumer type eSIM, profile download/removal, supports up to 7 eSIM profiles (feature availability varies by order code)
- SIM switchDual SIM and eSIM with automatic switching based on signal strength, data limit, SMS limit, roaming, network status, data connection failure, and SIM idle protection (feature availability varies by order code)
- Mobile statusIMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data usage, LAC, TAC, Cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
- SMSSMS status/configuration, Email-to-SMS, SMS-to-Email, SMS-to-HTTP, SMS-to-SMS, scheduled SMS, auto-reply, SMPP
- USSDSend and receive USSD messages
- Operator block/allow listBlock or allow operators by country or individual operator
- Keli PDNSupports multiple PDNs for different network access and services
- Dažnių juostų valdymasBand lock and used band status display
- SIM budėjimo apsaugaPeriodically switches to unused SIM to prevent blocking
- SIM PIN managementSet, change or disable SIM PIN
- APNAutomatic APN
- TiltasDirect bridge between mobile ISP and LAN device
- PerleidimasAssigns mobile WAN IP address directly to a LAN device
- Belaidžio režimas802.11b/g/n/ac Wave 2 (Wi-Fi 5), Dual Band MU-MIMO, up to 867 Mbps, AP/STA modes, 802.11r
- Wi-Fi saugumasWPA2/WPA3 Enterprise & Personal, OWE, AES-CCMP, TKIP, PMF (802.11w), EAP-TLS with PKCS#12 certificates, client separation
- SSID/ESSIDSSID stealth mode and MAC-based access control
- Wi-Fi naudotojaiUp to 150 simultaneous clients
- Wireless connectivity features802.11s Mesh, 802.11r Fast Roaming, 802.11k, 802.11v, Relayd
- Belaidžio ryšio MAC filtrasAllowlist and blocklist
- Belaidžio ryšio QR kodų generatoriusQR code for automatic Wi-Fi connection
- TravelMateForwards hotspot landing page to connected devices
- BluetoothBluetooth 5.0 with Bluetooth Low Energy (LE)
- WAN1 × Gigabit RJ45 WAN (10/100/1000 Mbps), IEEE 802.3/802.3u/802.3az
- LAN3 × Gigabit RJ45 LAN (10/100/1000 Mbps), IEEE 802.3/802.3u/802.3az
- MaršrutizavimasStatic, BGP, OSPFv2, RIP v1/v2, EIGRP, NHRP, Policy-based routing
- Tinklo protokolaiTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake-on-LAN, VXLAN
- VoIP perlaidaH.323 and SIP ALG
- Ryšio stebėsenaPing Reboot, Wget Reboot, Periodic Reboot, LCP, ICMP
- Ugnies sienaPort forwarding, traffic rules, custom rules, TTL customization, DMZ, NAT, NAT-T, NAT64
- Firewall statusView firewall statistics, rules and counters
- Prievadų valdymasEnable/disable ports, auto configuration, speed settings
- Tinklo topologijaGraphical connected device topology
- HotspotCaptive portal, Radius, SMS authentication, SSO, landing pages, user management, customizable themes
- DHCPStatic/dynamic allocation, relay, server, status, static leases with MAC wildcards
- QoS / SQMTraffic prioritization by source, destination, service, protocol or port, WMM, 802.11e
- DDNSSupports over 77 DDNS providers plus custom providers
- DNS per HTTPSSecure DNS proxy over HTTPS
- Tinklo atsarginisWi-Fi WAN, Mobile, VRRP, Wired failover
- Krovio balansavimasMultiple WAN load balancing
- SSHFSRemote filesystem mounting via SSH
- VRF supportVirtual Routing and Forwarding support
- Traffic managementReal-time monitoring, wireless signal charts, traffic history
- 802.1XPort-based network access control client
- AutentifikavimasPSK, X.509 certificates, TACACS+, Internal/External RADIUS, login blocking, password generator
- Atakų prevencijaSYN flood, SSH, HTTP/HTTPS attack protection, port scan prevention
- VLANPort-based and tag-based VLAN
- Mobiliojo kvotos valdymasData usage limits, warnings and scheduling
- Tinklo filtrasURL blocklist and allowlist
- Prieigos valdymasSSH, Web UI, CLI and Telnet access control
- TPMTPM 2.0 authentication module (feature availability varies by order code)
- Sertifikatų tvarkyklėCreate CA, server, client, Let’s Encrypt and SCEP certificates
- OpenVPNMultiple client/server instances, 27 encryption methods
- IPsecIKEv1/IKEv2, XFRM, 14 encryption methods
- GREGRE tunnel and GRE over IPsec
- PPTP / L2TPClient/Server, L2TPv3, L2TP over IPsec
- StunnelTLS encryption proxy
- DMVPNPhase 2, Phase 3 and Dual Hub support
- SSTPSSTP client
- ZeroTierZeroTier VPN client
- WireGuardWireGuard VPN client and server
- TincTinc VPN client and server
- TailscaleTailscale VPN using WireGuard
- OPC UAClient and Server over TCP
- MODBUSServer and Client over TCP and USB
- MODBUS custom registersCustom register block requests with file read/write support
- MODBUS data formats8-bit, 16-bit, 32-bit INT/UINT/FLOAT, HEX, ASCII
- Data to serverHTTP(S), MQTT, Azure MQTT, LUA scripting
- MQTT šliuzasModbus MQTT Gateway
- DNP3Station and Outstation over TCP and USB
- DLMS/COSEMClient over TCP and USB
- APITeltonika Networks Web API (Beta)
- WEB UIHTTP/HTTPS management, firmware updates, CLI, logs, troubleshooting
- FOTAFirmware updates from server with notifications
- SSHSSH v1/v2
- Call managementReboot, status, mobile data, digital output, answer/hang-up, Wi-Fi control
- TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem
- MQTTMQTT Broker and Publisher
- SNMPSNMP v1/v2/v3, traps, brute-force protection
- JSON-RPCManagement API over HTTP/HTTPS
- RMSTeltonika Remote Management System
- IoT platform supportThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core
- CPUQuad-core ARM Cortex-A7, 717 MHz
- RAM256 MB DDR3
- Flash storage256 MB SPI Flash
- Programinės įrangos atnaujinimasWeb UI, FOTA, RMS
- Išsaugoti nustatymusFirmware updates without losing configuration
- Gamyklo nustatymas iš naujoRestores factory defaults
- Operacinė sistemaRutOS (OpenWrt-based Linux)
- Supported programming languagesBusyBox Shell, Lua, C, C++, Python, Java (Package Manager)
- Kūrėjo įrankiaiSDK with build environment
- GPL pritaikymasCustom firmware and branded Web UI support
- Package ManagerInstall additional software packages
- GNSSGPS, GLONASS, BeiDou, Galileo, QZSS
- KoordinatėsWeb UI, SMS, TAVL, RMS
- NMEANMEA 0183
- NTRIPSupported
- Serverio programinė įrangaTAVL, RMS
- GeofencingMultiple configurable geofence zones
- USBUSB 2.0
- USB applicationsSamba share, USB-to-Serial
- External USB devicesHDD, flash drive, modem, printer, USB-Serial adapter
- Supported file systemsFAT, FAT32, exFAT, NTFS (read only), ext2, ext3, ext4
- Skaitmeninis įvesties1 × Digital Input (0–6 V low, 8–30 V high)
- Digital output1 × Open collector output, 30 V, 300 mA max
- ĮvykiaiEmail, RMS, SMS
- I/O valdymasEvent automation based on I/O conditions
- Maitinimo jungtis4-pin industrial DC connector
- Įėjimo įtampa9–50 VDC with reverse polarity and surge protection; Railway version: 24–36 VDC
- Pasyvus PoE9–50 VDC via LAN1 (Mode B, non-802.3af/at/bt)
- Didžiausias energijos suvartojimas16 W
- Ethernet interfaces4 × Gigabit RJ45
- I/O interfaces1 × Digital Input, 1 × Digital Output
- Būsenos LED indikatoriai4 × WAN, 2 × Mobile type, 5 × Signal strength, 8 × LAN, 1 × Power, 2 × Wi-Fi
- SIM lizdai2 × Mini SIM (2FF), 1.8 V / 3 V
- Antena2 × SMA (Mobile), 2 × RP-SMA (Wi-Fi), 1 × RP-SMA (Bluetooth), 1 × SMA (GNSS)
- USB port1 × USB Type-A
- PerkrovimasReboot, user reset, factory reset button
- Other interfaceGrounding screw
- Korpusų medžiagaAnodised aluminium housing and panels
- Matmenys115 × 44.2 × 95.1 mm
- Svoris456 g
- MontavimasDIN rail, wall mount or flat surface (mounting kit required)
- Darbinė temperatūra-40 °C to +75 °C
- Darbinė drėgmė10% to 90% non-condensing
- Apsauga nuo įėjimo (IP apsaugos klasė)IP30
- Reguliavimo patvirtinimaiCE, UKCA, FCC, EAC, UCRF, CITC, ICASA, ANRT, IC, PTCRB, RCM, IMDA, SIRIM, NTC, E-mark, Railway, UL/CSA, CB, ISED, ETA-WPC, MTCTE
- Certified operatorsAT&T, Verizon, T-Mobile, Deutsche Telekom AG
- Vehicle certificationECE R10 (E-mark)
- EMC standartaiEN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301 489 series, FCC Part 15, ICES-003, AS/NZS CISPR 32
- Immunity standardsEN 61000-4-2, EN IEC 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
- RF standardsEN 300 328, EN 303 413, EN 301 893, EN 300 440, EN 301 908 series, AS/NZS 4268, AS/CA S042
- Wi-Fi RF complianceFCC Part 15C/15E, KDB DFS, RSS-247, RSS-Gen
- RF exposure47 CFR §2.1091, KDB 447498, RSS-102
- Saugos standartaiEN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, IEC 62368-1:2018, AS/NZS 62368.1:2022
| Svoris | 0,131 kg |
|---|
