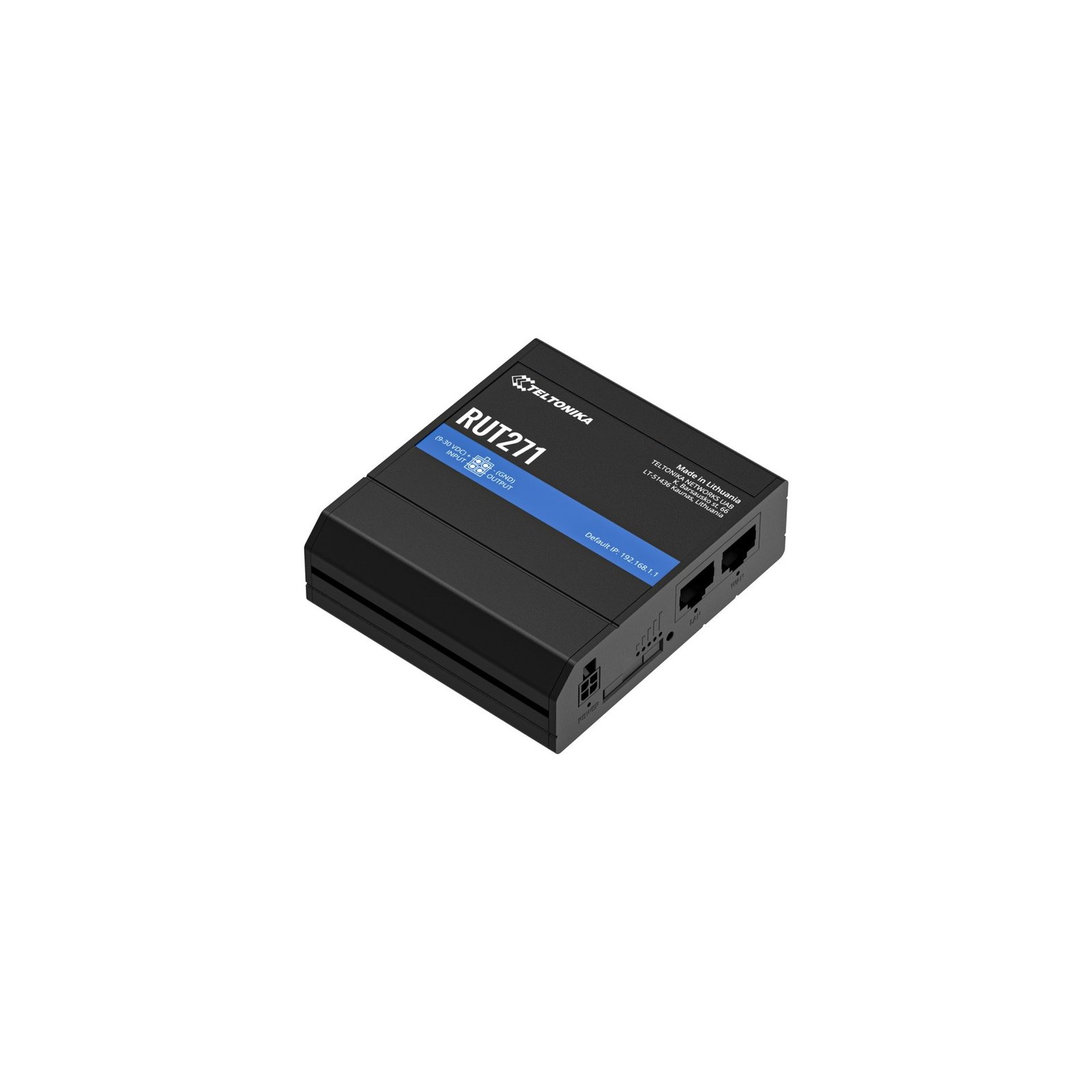

Modemas Teltonika RUT271 (5G, LTE Cat 6)
13,33€ / 36 mėn.
282,18€(Kaina be PVM)341,44€(Kaina su PVM)
| Tipas: Pramoninis 5G (LTE/4G) modemas | |
| Prekės ženklas: Teltonika | |
| Modelis: RUT271 | |
| Tinklo technologija: 5G RedCap Cat 6 (iki 223 Mbps DL / 123 Mbps UL, Sub-6 GHz SA) | |
| Jungtys: 1 × WAN, 1 × LAN (10/100 Mbps) | |
| Ryšys: Wi-Fi 802.11b/g/n, SMS, I/O (1 įvestis / išvestis) | |
| Procesorius: MediaTek MIPS 24Kc 580 MHz | |
| Tvirtinimas: DIN bėgelis | |
| Maitinimas: Passive PoE | |
| Apsaugos klasė: IP30 |
Neturime
Bendrosios savybės
| Mobilus modulis | 5G Sub-6GHz SA: 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4: 195 Mbps DL, 105 Mbps UL |
| 3GPP versija | Release 17 RedCap |
| eSIM | Consumer type eSIM, up to 7 profiles (download/remove), data plans not included |
| SIM switch | Dual SIM + eSIM, auto-switch on signal loss, roaming, limits, no network, etc. |
| SIM management | SIM PIN code management, SIM idle protection |
| Mobile network info | IMSI, ICCID, operator info, signal metrics (RSSI, RSRP, SINR, etc.) |
| SMS | 2-way SMS, scheduling, SMS to/from Email/HTTP/SMS, SMPP support |
| USSD | Supports sending/reading USSD |
| Block/Allow lists | Operator block/allow by country/operator |
| Multiple PDN | Supports multiple PDNs for network/service separation |
| Grupės valdymas | Band lock, used band status view |
| APN | Auto APN |
| Tilto režimas | Direct bridge from mobile ISP to LAN |
| Passthrough mode | Assign mobile IP to LAN device |
| Belaidžio ryšio režimas | 802.11 b/g/n (Wi-Fi 4), AP & STA modes |
| Wi-Fi saugumas | WPA2/WPA3, WPA-EAP, EAP-TLS, OWE, 802.11w PMF, MAC access control |
| SSID features | SSID hiding, MAC filtering, QR code access |
| Wi-Fi naudotojai | Up to 50 simultaneous connections |
| Wireless mesh features | 802.11s mesh, 802.11r fast roaming, 802.11v BSS transition, 802.11k RRM |
| TravelMate | Forwards captive portal page |
| WAN ports | 1× 10/100 Mbps, IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX |
| LAN ports | 1× 10/100 Mbps, IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX |
| Maršruto parinkimas | Static, Dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based |
| Protokolai | TCP, UDP, IPv4/IPv6, ICMP, HTTP(S), SNMP, MQTT, VRRP, PPP, Telnet, etc. |
| VoIP NAT helpers | H.323 and SIP ALG support |
| Ryšio stebėjimas | Ping, Wget, LCP/ICMP inspection, auto reboot |
| Užkarda | Port forwarding, traffic rules, custom rules, stats UI |
| Port management | Enable/disable, auto-config, speed control |
| Tinklo topologija | Visual map of connected devices |
| DHCP | Static/dynamic, relay, server config, MAC-based leases |
| QoS / SQM | Traffic priority by service/port, WMM, 802.11e |
| DDNS | 77+ supported providers, custom options |
| DNS per HTTPS | Secure DNS via HTTPS proxy |
| Failover options | Wi-Fi WAN, Mobile, VRRP, Wired |
| Apkrovos balansavimas | Multi-WAN traffic balancing |
| Hotspot features | Captive portal, RADIUS (internal/external), SMS auth, landing pages, theming |
| SSHFS | Remote filesystem mounting via SSH |
| Autentifikavimas | PSK, digital/X.509 certs, TACACS+, RADIUS, login blocking, password generator |
| Firewall advanced | DMZ, NAT, NAT-T, NAT64, unlimited rules via CLI |
| Įsilaužimo prevencija | DDOS, port scans, SYN flood, HTTP/S attack blocks |
| VLAN support | Tag and port-based VLAN separation |
| Mobiliųjų kvotų kontrolė | Data limit, period, warnings, SIM switch |
| Web filtering | Blacklist, Whitelist |
| Prieigos kontrolė | SSH/Web/CLI/Telnet restriction |
| Certificate manager | Generate/import CA, server, client, Let’s Encrypt, SCEP certs |
| 802.1x | Port-based network access control |
| VPN protocols | OpenVPN, IPsec, GRE, L2TP, PPTP, SSTP, ZeroTier, WireGuard, DMVPN, Tinc, Stunnel |
| VPN encryption (OpenVPN) | Supports 27+ cipher modes including AES-GCM, AES-CBC, 3DES, etc. |
| VPN encryption (IPsec) | Supports AES-GCM, AES-CBC, DES, 3DES, IKEv1, IKEv2, XFRM |
| OPC UA | Client/Server over TCP |
| MQTT šliuzas | Supports Modbus MQTT, Modbus server via MQTT broker |
| MODBUS support | Client/Server over TCP, custom registers, data types: INT, UINT, FLOAT, HEX, ASCII |
| Data to server | HTTP(S), MQTT, Azure MQTT; supports multi-protocol aggregation |
| DLMS/COSEM | Client over TCP for utility meter data exchange |
| DNP3 | Station/Outstation over TCP |
| API support | Teltonika Web API (beta) |
| Web management | Web UI (HTTP/HTTPS), CLI, multi-log support, event logs |
| FOTA | Firmware updates with notification and cloud management |
| SSH | SSH v1/v2 support |
| SMS remote control | SMS-based status, control, reboot, I/O management |
| Call control | Reboot, Wi-Fi on/off, data on/off, timers |
| Email alerts | Status reporting via email |
| TR-069 | Supported with multiple ACS vendors |
| MQTT | MQTT broker and publisher |
| SNMP | v1/v2/v3 + trap support |
| JSON-RPC | Management over HTTP/HTTPS |
| RMS | Teltonika Remote Management System integration |
| IoT platformos | ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core |
| Procesorius | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB DDR2 |
| Flash (atmintis) | 32 MB NOR |
| Firmware/Configuration | Web UI, backup/restore, OTA via FOTA/RMS, configuration profiles |
| Įrangos tinkinimas | RutOS (OpenWrt), SDK, Busybox, Lua, C/C++, custom branding, package manager |
| įvestis | 1× Digital Input (0–6 V LOW, 8–30 V HIGH) |
| išvestis | 1× Digital Output (Open collector, max 30 V, 300 mA) |
| Įvykiai | Email, RMS, SMS |
| I/O jungiklis | Configurable I/O-based event triggering |
| Maitinimo jungtis | 4-pin industrial DC socket |
| Power input range | 9 – 30 VDC, reverse polarity/surge protected |
| Pasyvus PoE | Supported via LAN1 (Mode B), 9–30 VDC |
| Energijos sąnaudos | Idle: <1.5 W, Max: <3 W |
| Ethernet prievadai | 2 × RJ45 (10/100 Mbps) |
| I/O ports | 1 × DI, 1 × DO (shared on power connector) |
| Būsenos LED indikatoriai | 3 × Connection type, 5 × Signal strength, 2 × LAN, 1 × Power |
| SIM slot | 1 × Mini SIM (2FF), external holder, 1.8 V / 3 V |
| Antenos jungtys | 2 × SMA (mobile), 1 × RP-SMA (Wi-Fi) |
| Atstatymo mygtukas | Reboot, User Reset, Factory Reset |
| Korpuso medžiaga | Aluminum body, plastic end panels |
| Matmenys | 83 x 25 x 74 mm |
| Svoris | 130 g |
| Montavimo galimybės | DIN rail, wall, flat surface (with kit) |
| Darbinė temperatūra | -40 °C to 75 °C |
| Darbo drėgmė | 10% to 90% non-condensing |
| Ingress protection | IP30 |
| Reguliavimo patvirtinimai | CE, UKCA, FCC, IC (ISED), RCM, CB, WEEE |
| EMC/EMI standards | EN 55032, EN 55035, EN 301 489 series, FCC Part 15, ICES-003, CISPR 32 |
| Safety standards | EN IEC 62368-1, EN IEC 62311, AS/NZS 62368.1, IEC 62368-1:2018 |
| RF compliance | EN 300 328, EN 301 908 series, FCC §15.247, §15.407, RSS-247, AS/NZS 4268 |
| RF exposure standards | FCC §2.1091, §1.1310, KDB 447498; IC RSS-102 Issue 6 |
