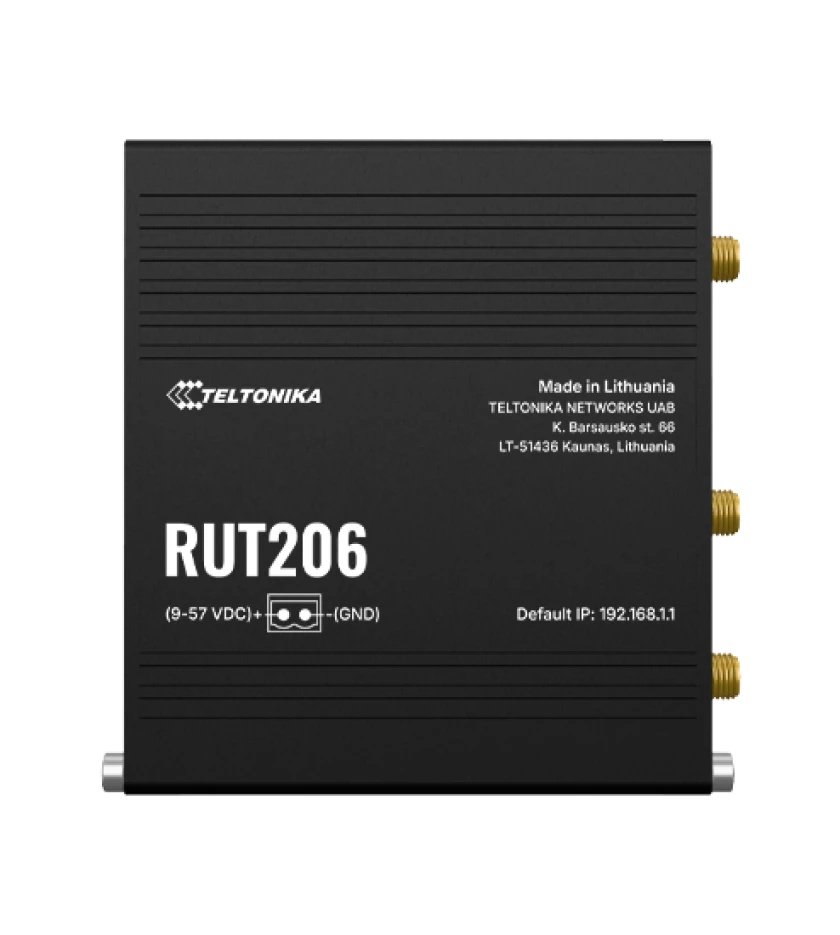

Modemas Teltonika RUT206 LTE(4G)
8,33€ / 24 mėn.
145,00€(Kaina be PVM)175,45€(Kaina su PVM)
| Tipas: Modemas | |
| Pramoninis | |
| Modelis: RUT206 | |
| Prekės ženklas: Teltonika | |
| Mobilusis ryšys: LTE (4G) Cat 4 | |
| Atsisiuntimo greitis: Iki 150 Mbps | |
| Išsiuntimo greitis: Iki 50 Mbps | |
| Tinklo palaikymas: UMTS, GSM, GPRS | |
| LAN prievadai: 1x LAN 10/100 Mbps | |
| WAN prievadai: 1x WAN | |
| Wi-Fi standartas: Wi-Fi 4 | |
| Darbo režimai: AP, STA | |
| SMS funkcija: Taip | |
| I/O prievadai: 1 įvestis/išvestis | |
| Procesorius: Mediatek MIPS 24Kc 580 MHz | |
| Protokolai: Modbus, RS232/485 | |
| Maitinimas: Passive PoE In, 9-57V | |
| Apsaugos klasė: IP30 |
Turime
Pagrindinis
| Mobilus modulis | 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps |
| 3GPP išleidimas | Release 9 |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Statusas | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Juodasis/baltasis sąrašas | Operator black/white list (by country or separate operators) |
| Grupės valdymas | Band lock, Used band status display |
| SIM neaktyvumo apsaugos paslauga | Idle SIM remains inactive until device switches to it, preventing unnecessary data usage |
| SIM PIN kodo valdymas | Enables setting, changing, or disabling the SIM card’s PIN |
| APN | Auto APN |
| Tiltas | Direct connection (bridge) between mobile ISP and device on LAN |
| Perleidimas | Router assigns its mobile WAN IP address to another device on LAN |
| Belaidžio ryšio režimas | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| Wi-Fi saugumas | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| SSID/ESSID | SSID stealth mode and access control based on MAC address |
| Wi-Fi naudotojai | Up to 50 simultaneous connections |
| Belaidžio ryšio funkcijos | Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Belaidžio ryšio MAC filtras | Allowlist, blocklist |
| Belaidžio ryšio QR kodų generatorius | Auto-connect to network via QR code scanning |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
| WAN | 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Maršrutas | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing |
| Interneto protokolai | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on LAN (WOL), VXLAN |
| VoIP praėjimo parama | H.323 and SIP-alg protocol NAT helpers for proper VoIP packet routing |
| Ryšio stebėjimas | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Ugniasienė | Port forward, traffic rules, custom rules, TTL target customization |
| Ugniasienės būsenos puslapis | View all Firewall statistics, rules, and rule counters |
| Prievadų valdymas | View, enable/disable, configure transmission speed of device ports |
| Tinklo topologija | Visual representation of connected devices |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases with MAC wildcards |
| QoS / išmanusis eilių valdymas (SQM) | Traffic priority queuing by source/destination, service, protocol, or port, WMM, 802.11e |
| DDNS | Supported for >25 service providers; manual configuration available |
| DNS per HTTPS | Enables secure DNS resolution via HTTPS |
| Tinklo atsarginės kopijos | Wi-Fi WAN, Mobile, VRRP, Wired options for automatic Failover |
| Apkrovos balansavimas | Distributes Internet traffic over multiple WAN connections |
| Viešosios interneto prieigos taškas | Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, user management, 9 customizable themes |
| Hotspot 2.0 | Seamless, secure, and automatic connection to trusted wireless networks |
| SSHFS | Supports remote file system mounting via SSH protocol |
| Eismo valdymas | Real-time monitoring, wireless signal charts, traffic usage history |
| Autentifikavimas | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS authentication, IP & login attempt blocking, built-in random password generator |
| Ugniasienė | Preconfigured rules via WebUI, unlimited rules via CLI, DMZ, NAT, NAT-T, NAT64 |
| Įsilaužimo prevencija | DDOS protection (SYN flood, SSH, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Mobiliųjų kvotų kontrolė | Customizable mobile data limit, warning alerts, phone number configuration |
| WEB filtras | Blacklist for blocking unwanted websites, Whitelist for allowed sites |
| Prieigos kontrolė | Flexible access control for SSH, Web UI, CLI, and Telnet |
| SSL sertifikatų generavimas | Supports Let’s Encrypt and SCEP certificate generation |
| 802.1x | Port-based network access control server |
| OpenVPN | Multiple clients and server support, 27 encryption methods |
| IPsec | XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, AES128, AES256, AES128GCM8, AES256GCM16, etc.) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Client/Server support, L2TPv3, L2TP over IPsec support |
| Stunnel | Proxy for adding TLS encryption to clients and servers |
| DMVPN | Scalable IPsec VPN support, Phase 2 and Phase 3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Encrypted tunneling with client and server support |
| BACNET | Router mode with RS485, TCP support |
| OPC UA | Client and Server modes with TCP support |
| MODBUS | Server and Client modes, RTU and TCP support, custom register block requests |
| DNP3 | TCP Master, DNP3 Outstation; RS232, RS485, TCP support |
| DLMS | Client mode for utility meter data exchange; TCP support |
| COSEM | Scans COSEM objects for auto-detection and configuration |
| API | Teltonika Networks Web API (beta) support |
| Monitoring & Management | HTTP/HTTPS WebUI, FOTA updates, SSH (v1, v2), SMS commands, remote call management, TR-069, MQTT, SNMP, JSON-RPC, RMS support |
| IoT Platforms | ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core integration |
| Procesorius | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB DDR2 |
| FLASH saugykla | 32 MB NOR Flash |
| Programinės įrangos atnaujinimas | Update via WebUI, FOTA, RMS; configuration backup and restore |
| Gamintojo nustatymų atstatymas | Restores all system settings, IP, PIN, and user data to default |
| Operacinė sistema | RutOS (OpenWrt-based Linux OS) |
| Kalbos | Busybox shell, Lua, C, C++ |
| Kūrėjo įrankiai | SDK package with build environment |
| Serial | RS232 (no flow control), RS485 (half-duplex 2-wire) |
| SD CARD | Micro SD (internal), up to 2 TB, FAT32/NTFS/ext2/ext3/ext4 |
| PoE In | 1 x PoE In, Active PoE 802.3af Class 0 (12.94 W) |
| Maitinimo įvestis | 9 – 57 VDC, reverse polarity & surge protection |
| Fizinės sąsajos | 2 x RJ45 ports, 10/100 Mbps; 2 x SIM slots (Mini SIM – 2FF); 2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi |
| Dydis | 83 x 25 x 83 mm |
| Svoris | 132 g |
| Montavimas | DIN rail, wall, flat surface (kit required) |
| Darbinė temperatūra | -40 °C to 75 °C |
| Apsauga nuo įsiskverbimo | IP30 |
| Sertifikatai | CE, UKCA, CB, RCM, EAC, UCRF |
