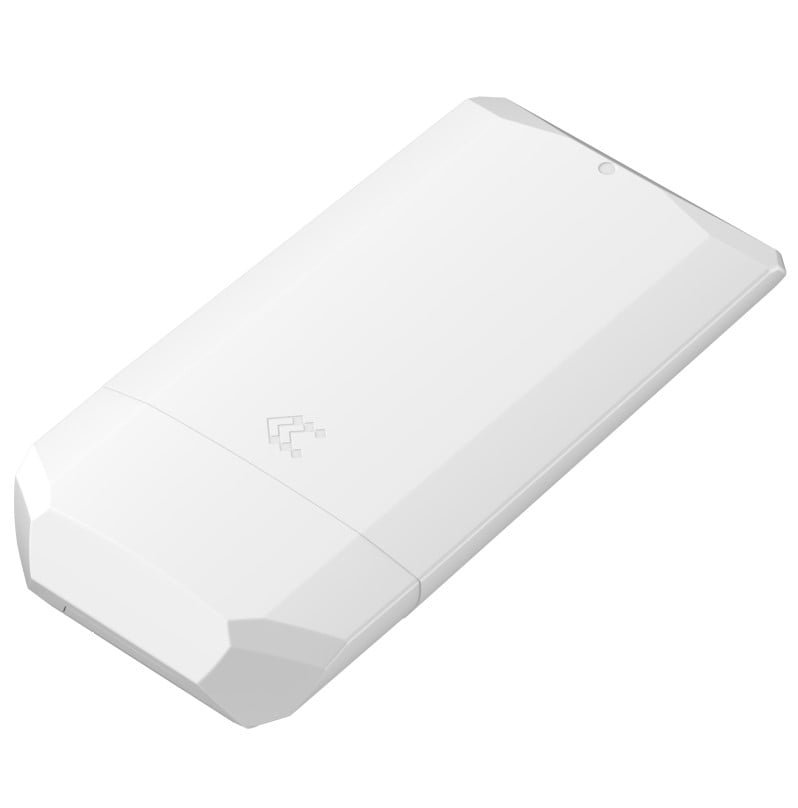

Name: Maršrutizatorius Teltonika OTD500 (5G)
SKU: MOTD500
Availability: OutOfStock

Maršrutizatorius Teltonika OTD500 (5G)

451,16€(Kaina be PVM)545,90€(Kaina su PVM)

Neturime

Tipas: Maršrutizatorius
Modelis: OTD500
Prekės ženklas: Teltonika
Ryšys: 5G
Jungtys: 2x RJ45, 1x PoE-in, 1x PoE-out
PoE standartas: 802.3af
Maksimali galia: 15W
Operatyvioji atmintis (RAM): 256 MB DDR3
SIM kortelės: 2x SIM
Atsparumo klasė: IP55
Darbinė temperatūra: -40…+55°C

Pagrindinis
Mobilus modulis5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4×4 MIMO), 900/550 Mbps UL (2×2); 4G LTE – LTE Cat 19 1.6Gbps DL/200Mbps UL; 3G up to 42 Mbps DL/5.76Mbps UL
3GPP išleidimasRelease 16
eSIMConsumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
StatusasIMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSDSupports sending and reading Unstructured Supplementary Service Data messages
Juodasis/baltasis sąrašasOperator black/white list (by country or separate operators)
Grupės valdymasBand lock, Used band status display
SIM neaktyvumo apsaugos paslaugaInactive SIM remains idle until switched to, preventing unintended data usage
SIM PIN kodo valdymasSet, change, or disable SIM card PIN
APNAuto APN
TiltasDirect connection (bridge) between mobile ISP and device on LAN
PerleidimasRouter assigns its mobile WAN IP address to another device on LAN
Framed routingSupport for an IP network behind 5G UE
ETHERNET2 x ETH ports (can be configured as WAN), 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az, supports auto MDI/MDIX crossover
PoE IN1 x PoE In, 802.3af/at standard
PoE OUT1 x PoE Out, 802.3af Alternative B, Max power 15W (power supply dependent)
MaršrutasStatic and Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Interneto protokolaiTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthroughH.323 and SIP-alg protocol NAT helpers for proper routing of VoIP packets
Ryšio stebėjimasPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
UgniasienėPort forwarding, traffic rules, custom rules, TTL target customization
Firewall statusView firewall statistics, rules, and rule counters
Prievadų valdymasEnable/disable device ports, auto-configure, change transmission speed
Tinklo topologijaVisual representation of connected devices
DHCPStatic and dynamic IP allocation, DHCP relay, server configuration, static leases
QoS / Smart Queue ManagementTraffic priority queuing by source/destination, service, protocol, or port, WMM, 802.11e
DDNSSupports >25 service providers, manual configuration possible
DNS per HTTPSSecure DNS resolution via DNS over HTTPS proxy
Tinklo atsarginės kopijosVRRP, wired options, automatic failover
Apkrovos balansavimasBalance Internet traffic across multiple WAN connections
Viešosios interneto prieigos taškasCaptive portal, Radius server, MAC authentication, SMS authorization, SSO authentication, custom themes
SSHFSMount remote file system via SSH protocol
VRF supportInitial virtual routing and forwarding (VRF) support
Eismo valdymasReal-time monitoring, wireless signal charts, traffic usage history
AutentifikavimasPre-shared key, digital certificates, X.509 certificates, TACACS+, RADIUS authentication, IP & login attempts block, time-based login blocking, built-in random password generator
UgniasienėConfigurable via WebUI, CLI, DMZ, NAT, NAT-T, NAT64
Įsilaužimo prevencijaDDOS, SSH attack, HTTP/HTTPS attack prevention, port scan protection
VLANPort and tag-based VLAN separation
Mobiliųjų kvotų kontrolėMobile data limit, customizable period, start time, warning limit, phone number
WEB filtrasBlacklist/whitelist for web content access
Prieigos kontrolėFlexible SSH, Web interface, CLI, and Telnet access control
TPMTPM 2.0 standard authentication module
SSL certificate generationLet’s Encrypt and SCEP certificate methods
802.1xPort-based network access control server
VPNOpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale support
OpenVPN encryption27 encryption methods including AES-256-GCM, AES-128-CBC, and more
IPsecSupports XFRM, IKEv1, IKEv2, with 14 encryption methods
MODBUSSupports Client/Server modes, TCP connection, custom register block requests
DATA TO SERVERHTTP(S), MQTT, Azure MQTT, extract parameters from multiple sources to a single server
MQTT GatewayModbus MQTT Gateway for sending commands and receiving data from MODBUS Server
DNP3Supports Station, Outstation modes over TCP
DLMSClient mode, COSEM object scanning, TCP connection
APITeltonika Networks Web API (beta) support for device management and monitoring
WEB UIHTTP/HTTPS access, configuration, FW update, CLI, troubleshooting, logs
FOTAFirmware update via server, automatic notifications
SSHSSH v1/v2 support
EmailReceive status alerts via email
SMSSend/read SMS via HTTP POST/GET
CallReboot, status check, mobile data on/off, output on/off, call control
TR-069Supports OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Monitoring & ManagementMQTT, SNMP (v1, v2, v3), SNMP Trap, JSON-RPC, RMS support
IoT PlatformsThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core
Sistemos CharacteristikosMediaTek Dual-core 880 MHz CPU, 256 MB DDR3 RAM, 16 MB NOR + 256 MB NAND flash
FirmwareSupports RutOS (OpenWrt-based), customization, SDK, package manager
Sistemos parametraiRJ45 socket, input voltage range 42.5–57.0 VDC, PoE input 42.5–57.0 VDC, power consumption <9W (max)
Physical Interfaces2 x RJ45 ports, status LEDs, 2 x SIM slots, 4 x internal antennas
Antenna specifications617 – 960 / 1695 – 2690 / 3300 – 4200 / 4200 – 5000MHz, 50 Ω, VSWR <3.5, gain <4.9 dBi, omnidirectional
Atstatymo mygtukasReboot/User default reset/Factory reset
KorpusasPlastic (PC+ASA)
Dydis110 x 49.30 x 235 mm
Svoris385 g
MontavimasBracket for vertical flat surface or pole mounting
Darbinė temperatūra-40 °C to 55 °C
Drėgmė10% to 90% non-condensing
Ingress ProtectionIP55
Regulatory ApprovalsCE, UKCA, RCM, CB, EAC, UCRF, WEEE
EMC ComplianceEN 55032, EN 55035, EN 61000 series
Safety StandardsCE (EN IEC 62368-1), RCM (AS/NZS 62368.1), CB (IEC 62368-1)
