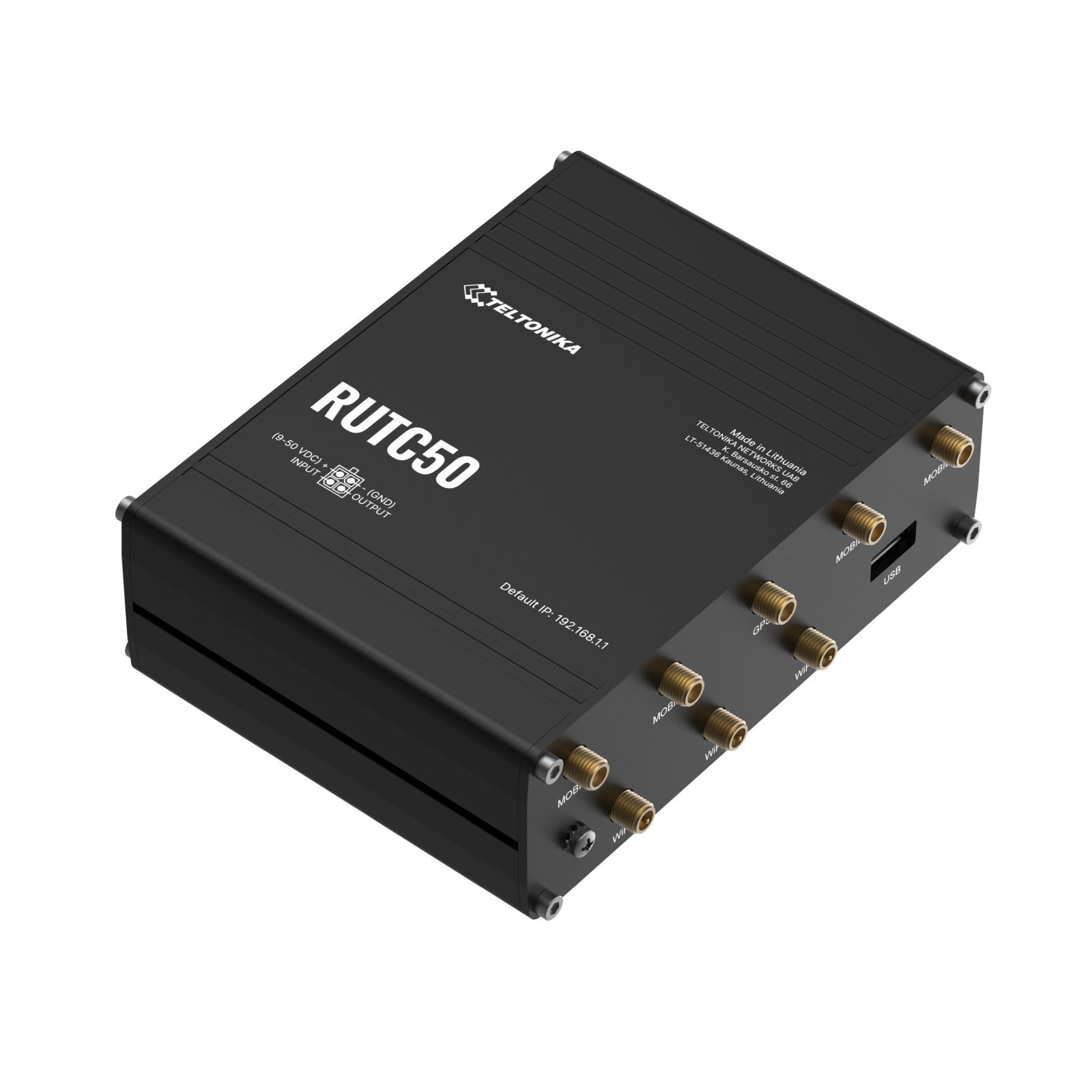

Maršrutizatorius TELTONIKA LTE RUTC50

26,00€ / 60 mėn.

784,89€(Kaina be PVM)949,72€(Kaina su PVM) su PVM

Tipas: maršrutizatorius
Prekės ženklas: Teltonika
Modelis: RUTC50
5G Sub‑6 GHz (SA/NSA), iki 2.4/3.4 Gbps DL, 4×4 MIMO
4G LTE Cat19
Prievadai: 1 × WAN, 4 × LAN 10/100/1000 Mbps
Mesh palaikymas (802.11s)
USB: USB 2.0
SMS, I/O palaikymas
Dual SIM
GNSS
Maitinimas: 9–50 VDC, „Passive PoE“ LAN1
Darbinė temperatūra: -40…+75 °C
Pramoninis

SKU: LTERUTC50

Kategorijos: Komutavimo įranga, Maršrutizatoriai, Tinklų įranga

Žymos: Komutavimo įranga, Main, Maršrutizatoriai, Tinklų įranga

Aprašymas

Bendra
Mobilus modulis5G Sub-6 Ghz SA/NSA 2.4/3.4 Gbps DL (4×4 MIMO), 900/550 Mbps UL (2×2); 4G LTE Cat 19 1.6 Gbps DL, Cat 18 200 Mbps UL; 3G 42 Mbps DL, 5.76 Mbps UL
eSIMConsumer type eSIM, up to 7 profiles, does not include data plans
3GPP leidimasRelease 16
SIM perjungimas (dvivietis)2 SIM cards, auto-switch on weak signal, data limit, SMS limit, roaming, no network, network denied, data fail, idle protection
SIM perjungimas (dvivietis + eSIM)2 SIM cards and 1 eSIM, auto-switch on weak signal, data limit, SMS limit, roaming, no network, network denied, data fail, idle protection
Būsenos parametraiRSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, SIM provider, operator, network type, cell ID, LAC, TAC, ARFCN, UARFCN, EARFCN
SMSSMS status, configuration, Email to SMS, SMS to Email, SMS to HTTP, scheduled, autoreply, SMPP
USSD palaikymasSend/read USSD messages
Blokuojamų/Leidžiamų sąrašasOperator block/allow by country or specific operator
Keli PDNUse different PDNs for network access and services
Dažnių juostų valdymasBand lock, used band status display
SIM budėjimo apsaugaAuto switch to unused SIM periodically to prevent block
SIM PIN kodo valdymasSet, change, or disable SIM card PIN
APNAuto APN
Tiltinis režimasDirect bridge from mobile ISP to LAN device
Perlaidos režimasAssign mobile WAN IP to LAN device
Rėminis maršrutizavimasSupports IP network behind 5G UE
Belaidžio režimas802.11b/g/n/ac/ax (Wi-Fi 6), up to 2402 Mbps (5 GHz), 576 Mbps (2.4 GHz), MU-MIMO
Wi-Fi saugumasWPA2-Enterprise, WPA3, PEAP, WPA2-PSK, WPA-EAP, OWE, AES-CCMP, TKIP, client separation, EAP-TLS with PKCS#12, 802.11w PMF
SSID/ESSIDStealth mode, MAC access control
Wi‑Fi naudotojaiUp to 512 simultaneous connections
Belaidžio ryšio ypatybėsMesh (802.11s), fast roaming (802.11r), BSS transition (802.11v), RRM (802.11k)
MAC filtravimasAllowlist, blocklist
Wi-Fi QR codeScan to connect without entering password
TravelMateRedirect Wi-Fi hotspot landing page to next connected device
WAN prievadas1 x 10/100/1000 Mbps, IEEE 802.3/3u/3az, auto MDI/MDIX
LAN prievadai4 x 10/100/1000 Mbps, IEEE 802.3/3u/3az, auto MDI/MDIX
MaršrutizavimasStatic, BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, policy-based routing
Tinklo protokolaiTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP perlaidaH.323 and SIP-alg NAT helpers
Ryšio stebėsenaPing Reboot, Wget Reboot, Periodic Reboot, LCP, ICMP
Ugnies sienaPort forwarding, traffic rules, custom rules, TTL customization
Ugnies sienos būsenos puslapisView all firewall rules, statistics, counters
Prievadų valdymasEnable/disable, auto-config, change transmission speed
Tinklo topologijaVisual representation of network connections
DHCPStatic/dynamic IP, DHCP relay, server config, MAC static leases with wildcards
QoS / SQMTraffic priority by source, destination, service, protocol, port, WMM, 802.11e
DDNSSupports over 77 providers, custom config possible
DNS per HTTPSSecure DNS resolution through DoH proxy
Tinklo atsarginisWi-Fi WAN, Mobile, VRRP, Wired failover options
Krovio balansavimasBalance traffic across multiple WAN connections
HotspotCaptive portal, Radius auth, SMS/SSO, landing page, walled garden, user limits, 9 themes, custom themes
Hotspot 2.0Seamless, secure, automatic connection to trusted Wi-Fi networks
SSHFSMount remote file systems via SSH
Eismo valdymasReal-time traffic monitor, signal charts, usage history
Prievado veidrodinimasMirror Ethernet traffic for monitoring and analysis
802.1x klientasPort-based network access control
AutentifikavimasPre-shared key, digital certs, X.509, TACACS+, RADIUS, IP/login block, time-based lockouts
Ugnies sienos konfigūracijaPre-set via WebUI, custom via CLI, DMZ, NAT, NAT-T, NAT64
Atakų prevencijaDDOS, port scan, SYN-FIN, X-mas, NULL flag, SSH/HTTP attacks
VLANPort/tag-based VLAN separation
Mobiliojo kvotos valdymasData limits by time, warning threshold, phone number
Tinklo filtrasBlock or allow specified websites
Prieigos valdymasSSH, WebUI, CLI, Telnet control
TPMTPM 2.0 secure module
Sertifikatų tvarkyklėCreate CA, server, client, SCEP, Let’s Encrypt certificates
OpenVPNMultiple clients & server, 27 encryption types
OpenVPN šifravimasAES, DES, RC2, CAST5, GCM, CBC, CFB, OFB, etc.
IPsecXFRM, IKEv1/v2, 14 encryption methods incl. AES-GCM
GREGRE tunnel and GRE over IPsec
PPTP/L2TPClient/server support, L2TPv3, L2TP over IPsec
StunnelTLS encryption proxy wrapper
DMVPNScalable IPsec VPNs with Dual Hub, Phases 2 & 3
SSTPClient instance supported
ZeroTierVPN client support
WireGuardVPN client and server support
TincVPN with encryption, auth, compression (client/server)
TailscaleWireGuard-based mesh VPN, simplified connections
OPC UAClient and Server over TCP
MQTT šliuzasSend/receive MODBUS data via MQTT broker
MODBUS režimaiClient, Server
MODBUS jungtysTCP, USB
MODBUS registraiCustom register read/write to router file system
MODBUS duomenų tipaiINT, UINT (8/16/32-bit), float, HEX, ASCII, byte orders
Duomenų į serverį protokolaiHTTP(S), MQTT, Azure MQTT
Duomenų į serverį logikaExtract/send from multiple protocols, custom LUA scripting
DNP3 režimaiStation, Outstation over TCP
DLMS/COSEMClient mode, TCP and USB supported
Žiniatinklio APITeltonika Web API (beta), documented endpoints
WEB vartotojo sąsajos ypatybėsHTTP(S), status, config, FW update, CLI, logs, diagnostics
FOTAFirmware updates via server
SSH palaikymasSSH v1/v2
SMS komandosEnable/disable mobile, reboot, output control
Skambučių funkcijosReboot, output, hangup, Wi-Fi toggle via call
El. pašto įspėjimaiSend alerts for monitored events
TR-069OpenACS, GenieACS, AVSystem, FreeACS, etc.
MQTT palaikymasBroker and publisher roles
SNMP versijosv1, v2, v3 with trap and brute-force protection
JSON-RPC APIHTTP(S) based configuration API
RMSTeltonika Remote Management System
ThingWorxMonitor WAN, IP, operator name/type/signal
CumulocityMonitor model, firmware, ICCID, signal, allow reboot/FW update
Azure IoT HubData upload, API call support, device provisioning
AWS IoT CoreCloud jobs, API access
„Docker“ palaikymasRun custom containers for apps/services
CPUMediatek Dual-core, 1.3 GHz ARM Cortex A53
RAM (variantas 1)512MB DDR3
RAM (variantas 2)1GB DDR4
FLASH atmintis (variantas 1)16MB NOR, 512MB NAND
FLASH atmintis (variantas 2)16MB NOR, 8GB eMMC
Programinės įrangos atnaujinimasWEB UI, FOTA, RMS
Išsaugoti nustatymusUpdate firmware without wiping configuration
Gamyklo nustatymas iš naujoRestore factory defaults including IP and PIN
Operacinė sistemaRutOS (OpenWRT-based)
Palaikomos kalbosBash, Lua, C, C++, Busybox shell
SDK palaikymasSDK with full build environment provided
GPL pritaikymasBrand firmware with custom UI and colors
Paketo tvarkyklėInstall optional software via GUI
GNSS sistemosGPS, GLONASS, BeiDou, Galileo, QZSS
Koordinačių ataskaitosWebUI, SMS, TAVL, RMS
NMEA palaikymasNMEA 0183
NTRIP palaikymasRTCM streaming via NTRIP
GNSS serverio suderinamumasTAVL, RMS
GeofencingMultiple configurable zones
USB specifikacijaUSB 2.0
USB funkcijosSamba share, USB-to-serial, external modem, HDD, printer
USB formataiFAT, FAT32, exFAT, NTFS (read-only), ext2/3/4
Skaitmeninis įvestis1 x DI (0–6V logic low, 8–50V logic high)
Skaitmeninis išvestis1 x DO, max 50V, 300mA open collector
I/O įvykiaiEvent trigger to Email, SMS, RMS
I/O valdymasDefine logic to trigger I/O based actions
Maitinimo jungtis4-pin industrial DC socket
Maitinimo įėjimo diapazonas9–50 VDC, surge & reverse polarity protection
Pasivus PoEOn LAN1, 9–30 VDC (not 802.3 compliant)
Energijos sunaudojimas (variantas 1)Idle < 4.5 W, Max < 13.5 W
Energijos sunaudojimas (variantas 2)Idle < 5.6 W, Max < 20.2 W
Ethernet prievadai5 x RJ45 10/100/1000 Mbps
Skaitmeninio I/O jungtis1 DI + 1 DO on 4-pin power connector
LED indikatoriai4 WAN, 3 Mobile Type, 3 Mobile Strength, 8 LAN, Power, 2 Wi-Fi, 2 WAN
SIM lizdai2 x Mini SIM (2FF), external holders, eSIM optional
Antena4 x SMA (Mobile), 3 x RP-SMA (Wi-Fi), 1 x SMA (GNSS)
USB prievadai1 x USB A
Atstatymo mygtukasReboot, user reset, factory reset
Įžeminimas1 x grounding screw
Korpusų medžiagaAnodized aluminum housing and panels
Matmenys130.4 × 42.6 × 103.4 mm
Svoris452 g
Tvirtinimo parinktysDIN rail, wall, flat surface (kits required)
Darbinė temperatūra-40 °C to 75 °C
Darbinė drėgmė10% to 90% non-condensing
Apsauga nuo įėjimo (IP apsaugos klasė)IP30
Reguliavimo (variantas 1)REACH, RoHS, CE, UKCA, CB
Reguliavimo (variantas 2)CE/RED, UKCA, CB, RCM, EAC, UCRF, WEEE
Transporto priemonių sertifikataiECE R118, ECE R10 (E-mark)
EMC standartaiEN 55032, 55035, 61000-3-2/3-3, 301 489, etc.
RF atitiktisEN 300 328, 440, 893, 303 413, 301 908
Saugos standartaiEN IEC 62368-1, 62311
