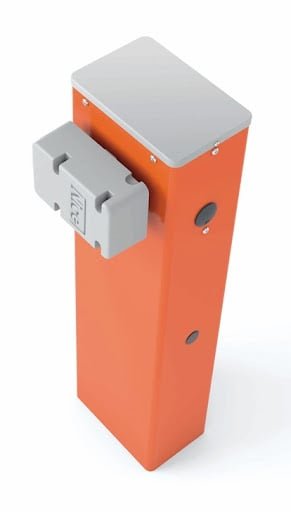

Kelio užtvaras NICE Wides (iki 3m)
748,70€(Kaina be PVM)905,93€(Kaina su PVM)
- Tipas: Kelio užtvaras
- Modelis: NICE Wides
- Mechanizmas: Elektromechaninis
- Maksimalus ilgis: iki 3 m
- Ciklai per valandą: 100
- Atidarymo greitis: 4 s
Neturime
- Bendra informacija
- ModelisWIDES
- Strypo ilgisUp to 3 m (modular aluminium bar)
- NaudojimasDesigned for short access points such as small parking areas or private entrances
- Variklio tipas24 VDC gearmotor, non-reversible, integrated control unit
- Energijos suvartojimas300 W
- Maitinimo šaltinis230 VAC 50/60 Hz input, 24 VDC motor output
- Current draw1.1 A
- Atidarymo greitis1.5 seconds (fastest in Wide series)
- Sukimo momentas120 Nm
- Darbo ciklasUp to 300 cycles/hour
- Apsaugos klasėIP54
- Darbinė temperatūra-20°C to +55°C
- Korpuso medžiagaReinforced galvanised steel cabinet, painted with orange polyester powder (WIDES); also available in grey, white, and stainless steel (WIDESGR1, WIDESWH, WIDESI)
- Matmenys (I x P x A)320 x 205 x 1000 mm
- Svoris43 kg
- Valdymo blokasIntegrated in the base of the cabinet; same control board as other Wide models; joystick interface
- Saugos funkcijosObstacle detection, encoder-based motion control, crush prevention during operation
- Atsileidimo mechanizmasMetal triangle key release, protected from tampering and weather
- MontavimasBar can be installed on either right or left side
- Atsarginė baterijaCompatible with PS324 (24 V backup battery with charger)
- Connectivity and Smart FeaturesSupports BlueBUS, BiDi, Yubii, Solemyo (solar), Opera; programmable via MyNice Pro App, BiDi-WiFi, and Pro-View
- Budėjimo režimasEnergy-saving mode when not in operation
- SuderinamumasIntegrated receiver works with ERA INTI, ERA ONE, MYGO, DOMÌ; BlueBUS photocells, ERA FLOR series controls, ELDC lights, loop detectors LP21 and LP22
- Accessories supportedXBA19 (aluminium bar), XBA4 (signal light), WIA10 (swivel mount), SIA1 (anchoring base), WA12 (support stand), WA11 (joint)
- SertifikataiCE compliant
| Svoris | 43 kg |
|---|---|
| Gamintojas |
