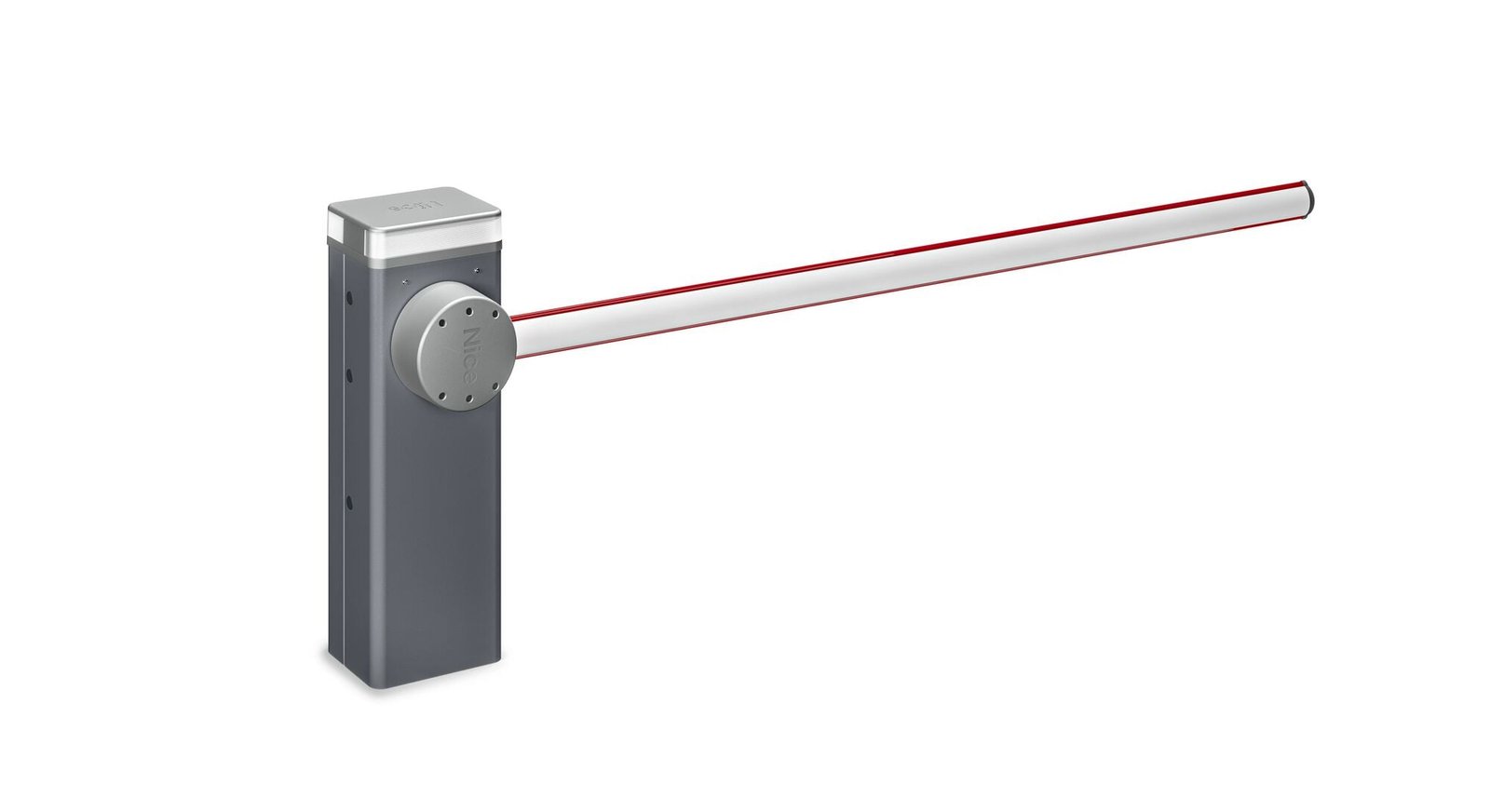

Kelio užtvaras NICE M7BAR (iki 7m)
34,93€ / 60 mėn.
1.037,94€(Kaina be PVM)1.255,91€(Kaina su PVM)
| Tipas: Kelio užtvaras | |
| Modelis: NICE M7BAR | |
| Maksimalus ilgis: iki 7 m | |
| Ciklai per valandą: 200 | |
| Atidarymo greitis: 6 / 10 s | |
| Įtampa: 230 VAC / 24 VDC | |
| IP klasė: IP54 | |
| Sukimo momentas: 300 Nm | |
| Galia: 110 W |
Liko tik 1. Reikia daugiau? Susisiekite su mumis.
Bendra informacija
| Modelis | M7BAR |
| Strypo ilgis | 7 m |
| Naudojimas | Electromechanical barrier system for intensive vehicle access control in large entrances and wide roadways |
| Variklio tipas | Non-reversible 230 VAC gearmotor with integrated 24 VDC control system |
| Energijos suvartojimas | 150 W |
| Maitinimo šaltinis | 230 VAC 50/60 Hz input, 24 VDC motor output |
| Atidarymo greitis | 3 to 8 seconds (adjustable) |
| Sukimo momentas | 280 Nm |
| Darbo ciklas | Up to 500 cycles/hour |
| Apsaugos klasė | IP54 |
| Darbinė temperatūra | -20°C to +55°C |
| Korpuso medžiaga | Steel case with cataphoretic treatment and polyester powder coating |
| Spalvų pasirinkimai | Orange (RAL2004), White (RAL9010), Grey (RAL7015), Stainless steel (INOX) |
| Matmenys (I x P x A) | 400 x 299 x 1215 mm |
| Svoris | 90 kg |
| Valdymo blokas | Integrated control board with display and joystick-based user interface |
| Išmaniosios funkcijos | Supports master/slave functionality for dual-barrier synchronization |
| Saugos funkcijos | Encoder-based position detection, obstacle sensing, electromechanical limit switches, integrated diagnostics |
| Režimas nutrūkus elektros tiekimui | Optional PS224 backup battery (24 VDC) ensures operation during power outages |
| Budėjimo režimas | Automatic energy-saving mode when idle |
| Atsileidimo mechanizmas | Manual key release (installable on either side) |
| Ryšys | BlueBUS, BiDi, Yubii, Solemyo (solar), and Opera; programmable with MyNice Pro App or BiDi-WiFi |
| Priedai | Supports rubber edge (XBA3), signaling light (XBA4), swivel mount (XBA10), articulated joint (XBA11), aluminium bar (XBA15), reflective tape (WA10), gear rack (WA13), loop detectors (LP21, LP22) |
| Sertifikatai | CE compliant |
| Svoris | 85 kg |
|---|---|
