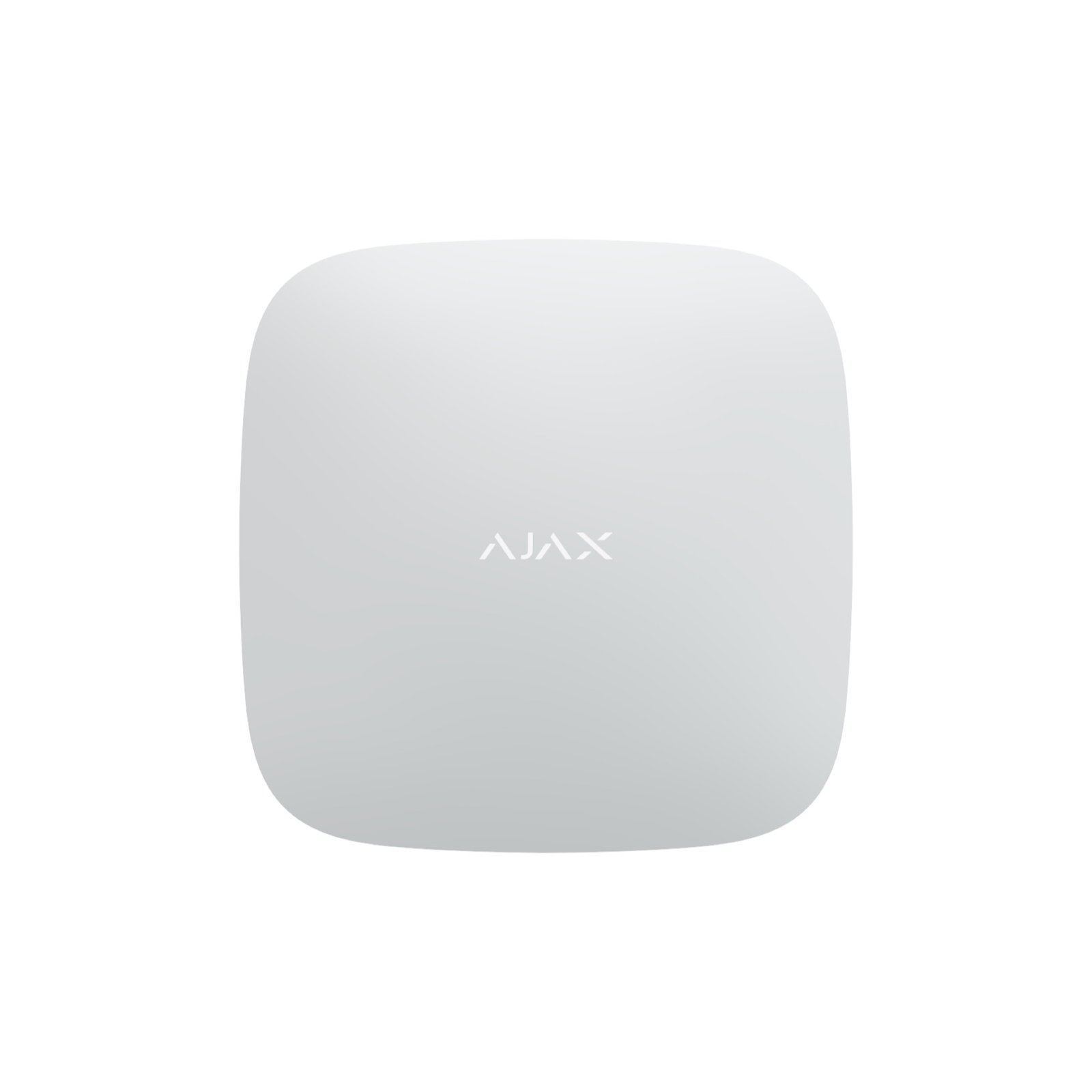

Kartotuvas Ajax Rex 2 38207.106.WH1 (Baltas)
11,79€ / 24 mėn.
200,57€(Kaina be PVM)242,69€(Kaina su PVM)
| Tipas: Belaidis kartotuvas | |
| Modelis: Ajax Rex 2 | |
| Spalva: Balta | |
| Veikimo atstumas: Iki 3400 m (atviroje erdvėje) | |
| Suderinamumas: Palaiko MotionCam | |
| Gamintojo kodas: 38207.106.WH1 |
Liko tik 1. Reikia daugiau? Susisiekite su mumis.
Jungčių galimybės
| Number of ReX 2 Jeweller connected to the hub | 5, For all compatible hub models. |
| Number of devices connected to ReX 2 Jeweller | up to 199, Depends on the hub model. Only Hub 2 Plus Jeweller and Hub 2 (4G) Jeweller are under certification by UL. |
Bendravimas
| Jeweller ryšio technologija | Proprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more |
| Dažnių juostos | 866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz* 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards. |
| Maksimali efektyvi spinduliuojama galia (ERP) | up to 25 mW, Automatic power control to reduce power consumption and radio interference. |
| Radijo signalo moduliacija | GFSK |
| Radijo ryšio veikimo nuotolis | up to 5,550 ft, Between the range extender and a hub in an open space., Calculate radio communication range at the facility |
| Šifruotas ryšys | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Dažnių šuoliai | To prevent radio interference and jamming., Learn more |
| Wings ryšio technologija | Proprietary wireless communication technology to transmit photo verifications., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Data packages reload in case of transmission errors., Photo delivery check., Learn more |
| Dažnių juostos | 866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz* 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards. |
| Radijo ryšio veikimo nuotolis | up to 5,600 ft, Between the range extender and a hub in an open space., Calculate radio communication range at the facility |
| Šifruotas ryšys | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Dažnių šuoliai | To prevent radio interference and jamming., Learn more |
| Ethernet | 1 8P8C socket (up to 100 Mbps), An alternative or main communication channel to transmit events, alarms, and photos. |
Pristatymo laikas
| Pavojaus signalo pristatymo laikas į valdymo pultą | 0.3 s |
| Photo delivery time to the hub | 18 s, Via ReX 2 Jeweller using the Wings channel. Delivery time depends on the settings., 10 s, Via ReX 2 Jeweller using the Ethernet channel. Delivery time depends on the settings., Learn more |
Apsauga nuo sabotažo
| Sabotažo signalas | Notifications on attempts to detach the device from the surface or remove it from the mounting panel., Learn more |
| Apsauga nuo klastojimo | device authentication |
| Ryšio praradimo aptikimas | after 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more |
Maitinimas
| Pagrindinis | 110–240 V, 50/60 Hz, Up to 6 W of mains power consumption. |
| Atsarginės kopijos | built-in backup battery Rechargeable Li-ion Polymer Battery XK 953562T 3.7 V⎓, 2 Ah, Calculated battery life:, Up to 24 hours of backup battery life when Ethernet is disabled., Up to 12 hours of backup battery life when Ethernet is enabled., Up to 38 hours of backup battery life. ReX 2 Jeweller average consumption is up to 41* mA when Ethernet is disabled., Up to 12 hours of backup battery life. ReX 2 Jeweller average consumption is up to 161* mA when Ethernet is enabled., Up to 4 hours of maximum time to recharge a backup battery of maximum capacity to 80% of its rated capacity., * From the backup battery after the loss of the main power supply., The range extender manufactured after October 7, 2022 , has a 3-pin battery. If the range extender was manufactured earlier, the battery can be a 2-pin or 3-pin one. To find out the battery type, contact Ajax Technical Support or check it manually., Learn more, Manufacturer, Dongguan Lean Power, UL listed. |
| Tipas | type A, Power supply is used inside the supervised premises. |
| Ramioji įrenginio srovės sąnauda esant nominaliai įtampai | 14.5 mA |
| Maksimali įrenginio srovės sąnauda esant nominaliai įtampai | 95.8 mA |
| Maža baterijos įtampa | 3.7 V⎓ |
| Mažos baterijos atsigavimo įtampa | 4.1 V⎓ |
| Galutinė baterijos įtampa | 3.6 V⎓, Device is switched off. |
| Minimali atsarginės baterijos energija įkrautoje būsenoje | 100% |
| Alternatyva | 6 V⎓, Connected via an alternative power supply unit * 6V PSU (type A which is sold separately ., 12-24 V⎓, Connected via an alternative power supply unit * 12–24V PSU (type A) which is sold separately ., Learn more, * Not evaluated by UL. |
Korpusas
| Matmenys | 6.42″ × 6.42″ × 1.42″ |
| Balto įrenginio svoris | 12.84 oz |
| Juodo įrenginio svoris | 11.85 oz |
| Darbinės temperatūros diapazonas | from 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards. |
| Drėgmė | up to 75%, Humidity of up to 93% is certified according to UL/ULC standards. |
| Apsaugos klasė | IP30, IK06 |
| Gamintojas |
|---|
