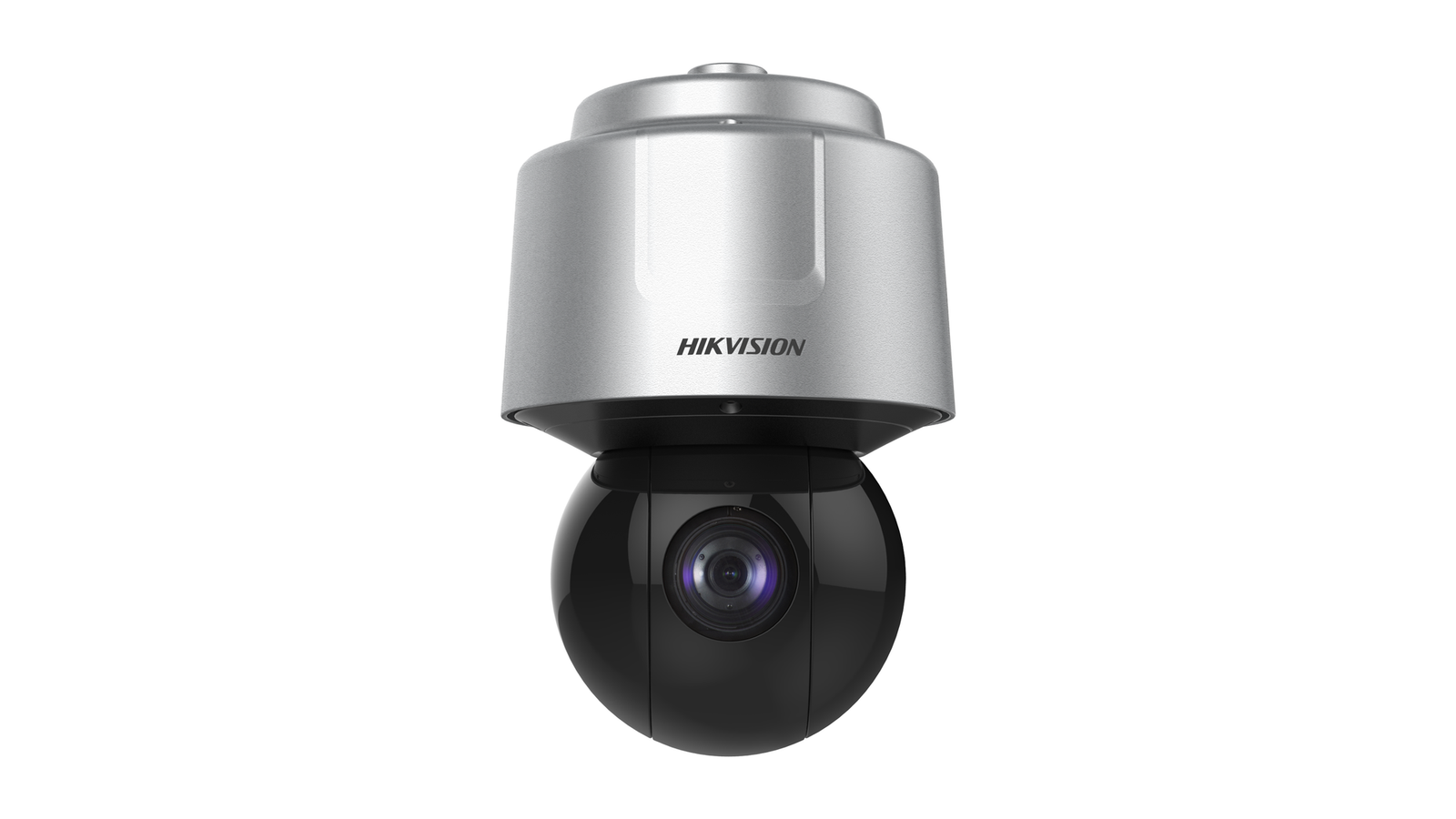

IP valdoma kamera Hikvision DS-2DF6A836X-AEL(T5)

Preliminari mėnesinė įmoka nuo 114,64€ / 60 mėn.

3.860,58€(Kaina be PVM)4.671,30€(Kaina su PVM)

1/1.8″ Progressive Scan CMOS sensorius
8MP kamera
Be ir pašvietimo
DarkFighter technologija
Funkcija: Automatinis sekimas 2.0
36× optinis priartinimas 16× skaitmeninis priartinimas
IP67, IK10

Liko tik 1

Gamintojas: Hikvision SKU: KIPDS2DF6A836XAELT5

Sensorius	1/1.8＂ progressive scan CMOS
Min. apšvietimas	color: 0.005Lux @ (F1.2，AGC ON),B/W: 0.0005Lux @ (F1.2，AGC ON)
Užrakto greitis	1/1 s to 1/30,000 s
Lėtas užraktas	yes
Fokusavimas	auto;semi-auto;manual
Day & Night	ICR
Diena/Naktis režimas	day, night, auto, scheduled-switch
BLC	yes
WDR	140 dB WDR
HLC	yes
3D DNR	yes
Rūko šalinimas	yes
EIS	Yes. Built-in gyroscope to improve EIS performance.
Regioninė ekspozicija	yes
Regioninis fokusavimas	yes
Baltos spalvos balansas	auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
Skaitmeninis priartinimas	16x
Optinis priartinimas	36x
Privatumo kaukė	up to 24 masks;polygon region ;mosaic mask ;mask color configurable
DORI	Detect (25px/m): 4300 m Observe (63px/m): 1706.3 m Recognize (125px/m): 860 m Identify (250px/m): 430 m
SNR	≥52dB
Pagrindinės funkcijos	mirror, password protection, watermark, IP address filter
Optinio rūko šalinimas	yes

FOV	6.0 mm to 216 mm, 36× Optical
Priartinimo greitis	approx. 4.5 s
FOV	Horizontal field of view: 56.6° to 1.7° (wide-tele), Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.9° (wide-tele)
Diafragama	F1.2

Movement Range (Pan)	360°
Movement Range (Tilt)	-20° to 90° (auto flip)
Pan greitis	pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
Tilt greitis	tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
Proporcingas priartinimas	yes
Iš anksto išsaugoti nustatymai	300
Patruliavimas	8 patrols, up to 32 presets for each patrol
Išsaugotų rėžimų skenavimas	4 pattern scans, record time over 10 minutes for each scan
Išjungimo atmintis	yes
Park Action	preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D pozicija	yes
PTZ būsenos vaizdavimas	yes
Išsaugotų nustatymų sustabdymas	yes
Užduočių grafikas	preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Maks. rezoliucija	3840 × 2160
Pagrindinis srautas	50 Hz: 25 fps (3840 × 2160, 2560×1440, 1920×1080, 1280×960, 1280×720) 60 Hz: 24 fps (3840 × 2160, 2560×1440, 1920×1080, 1280×960, 1280×720)
Antrinis srautas	50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
Trečias srautas	50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Vaizdo suspaudimas	H.265;H.264;MJPEG
Vaizdo bitų greitis	32 Kbps to 16384 Kbps
H.264 tipas	baseline profile;main profile;high profile
H.265 tipas	main profile
H.264+	yes
H.265+	yes
SVC	yes
ROI	fixed region

Garso suspaudimas	G.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM
Audio Bit rate	64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32~192 Kbps(MP2L2)

Vidinė atmintis	NAS (NFS, SMB/ CIFS);ANR
Protokolai	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
API	ISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);Open-ended API;Third-party management platform;ISUP;Ehome
Tiesioginis vaizdo žiūrėjimas	Up to 20 channels
User/Host	Up to 32 users. 3 levels: Administrator, Operator and User
Sklandus srautas	yes
Saugumo sprendimai	User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Klientas	Hikcentral;iVMS-4200;Hik-Connect
Naršyklė	IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Bendravimo sąsaja	RJ45, self-adaptive 10M/100M Ethernet port
Saugyklos vieta	Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Signalizacijos įvestis	7 alarm inputs
Signalizacijos išvestis	2 alarm outputs
Garso įvestis	1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Garso išvestis	1 audio output, line level, impedance: 600 Ω
Vaizdo išvestis	NTSC;PAL;1.0V[p-p]/75Ω;BNC connector
RS-485	HIKVISION, Pelco-P, Pelco-D, self-adaptive

Sistemos parametrai	24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
Darbo sąlygos	Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
Dydis	⌀ 231.1 mm × 355.6 mm (⌀ 9.10″ × 14″)
Svoris	Approx. 6 kg (13.23 lb.)
Tinklo naršyklės kalba	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

EMC	FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)
Saugumas	UL (UL 62368-1) CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
Aplinkosauga	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Apsauga	IP67 Standard;IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5

Perimetro apsauga	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Veido atpažinimas	Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Kelių eismo funkcijos	Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)
Pagrindinės funkcijos	alarm input and output;motion detection;video tampering alarm;exception
Išmaniosios funkcijos	object removal detection;unattended baggage detection;vandal-proof alarm;parking detection;region entrance detection;region exiting detection;line crossing detection;intrusion detection;audio exception detection
Išmanus sekimas	manual tracking;auto-tracking;event tracking
Išmanus įrašymas	ANR;Dual-VCA
Signalizacijos sąsaja	Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
