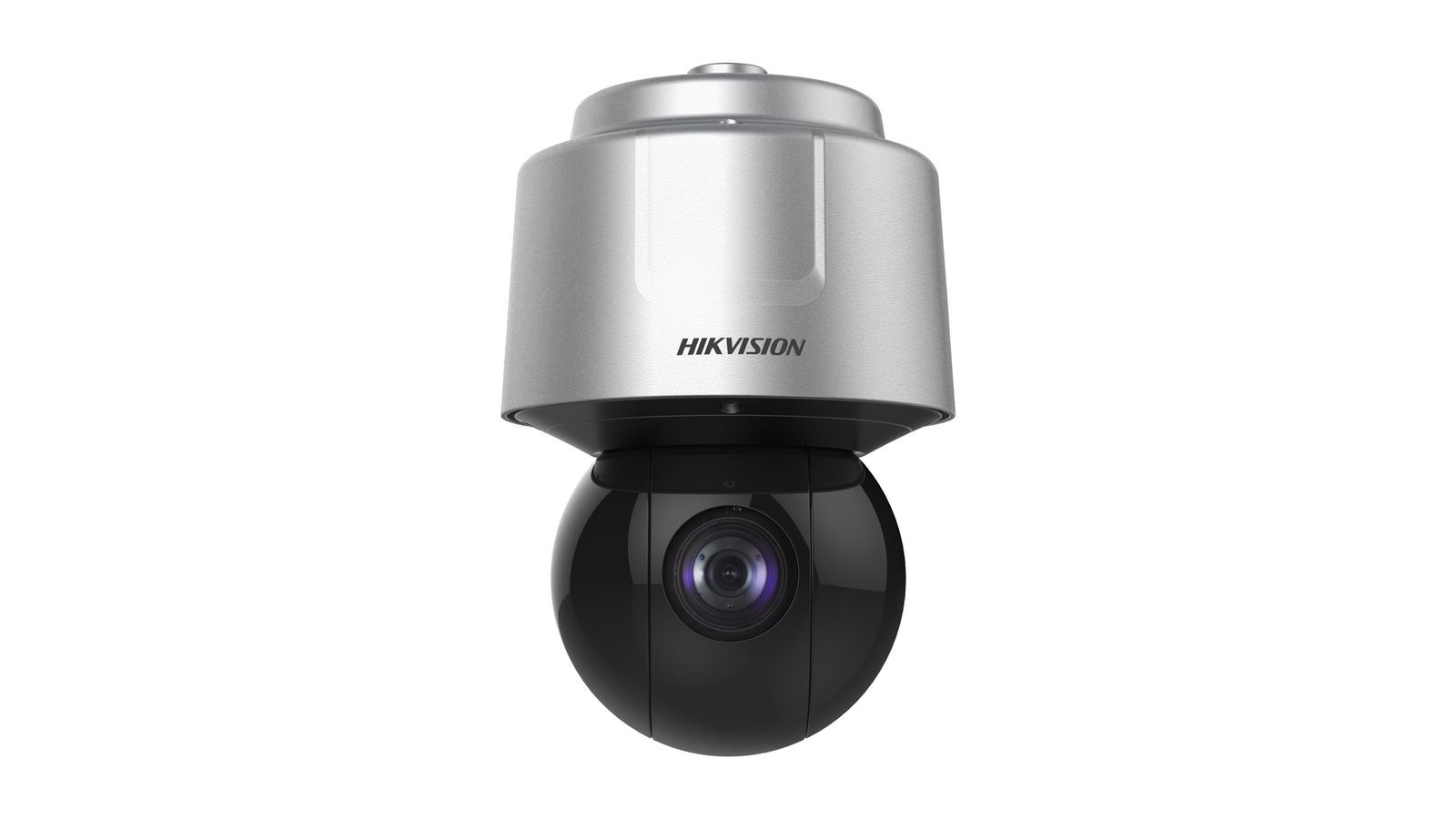

IP speed dome kamera Hikvision DS-2DF6A225X-AEL (x25, DarkFighter)

Preliminari mėnesinė įmoka nuo 60,32€ / 60 mėn.

1.821,68€(Kaina be PVM)2.204,23€(Kaina su PVM)

IP kamera
Modelis: DS-2DF6A225X-AEL
Gamintojas: Hikvision
Stilius: SPEED DOME
Priartinimas: x25 ZOOM
Technologijos: DARKFIGHTER
Jutiklis: 1/1.8’’ CMOS
Objektyvas: 5.9-147.5mm (59.8°-3.3°)
IR pašvietimas: Be IR
Triukšmo mažinimas: 3D DNR
Plati dinaminė sritis (WDR): 120dB
Kodavimo technologija: H.265+
Rezoliucija: 2MP
Apsaugos klasė: IK10, IP67
Maitinimas: 24V, High PoE

Liko tik 1

Gamintojas: Hikvision SKU: KIPDS2DF6A225XAEL

Kategorijos: IP kameros, IP vaizdo apsauga, PTZ kameros

Žymos: IP kameros, IP vaizdo apsauga, Main, PTZ kameros

Aprašymas
Papildoma informacija

Kamera

Sensorius	1/1.8″ progressive scan CMOS
Maks. rezoliucija	1920 × 1080
Min. apšvietimas	Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
Užrakto greitis	1/1 s to 1/30,000 s
Day & Night	IR cut filter
Priartinimas	25x optical, 16x digital
Lėtas užraktas	Yes
DORI	Detect (25px/m): 2034.5 m Observe (63px/m): 807.3 m Recognize (125px/m): 406.9 m Identify (250px/m): 203.4 m

Lęšis

FOV	5.9 mm to 147.5 mm
FOV	Horizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele)
Fokusavimas	Semi-auto, manual, auto, rapid focus
Diafragama	Max. F1.5
Priartinimo greitis	Approx. 4.8 s

PTZ

Movement Range (Pan)	360°
Movement Range (Tilt)	-20° to 90° (auto flip)
Pan greitis	Pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
Tilt greitis	Tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
Proporcingas Pan	Yes
Iš anksto išsaugoti nustatymai	300
Išsaugotų nustatymų sustabdymas	Yes
Patruliavimas	8 patrols, up to 32 presets for each patrol
Išsaugotų rėžimų skenavimas	4 pattern scans, record time over 10 minutes for each scan
Park Action	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D pozicija	Yes
PTZ būsenos vaizdavimas	Yes
Užduočių grafikas	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Išjungimo atmintis	Yes

Vaizdas

Pagrindinis srautas	50 Hz: 25 fps (1920×1080, 1280×960, 1280×720) 60 Hz: 24 fps (1920×1080, 1280×960, 1280×720)
Antrinis srautas	50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
Trečias srautas	50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Vaizdo suspaudimas	Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
Vaizdo bitų greitis	32 Kbps to 16384 Kbps
H.264 tipas	Baseline profile, main profile, high profile
H.265 tipas	Main profile
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	8 fixed regions for each stream

Garsas

Garso suspaudimas	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Garso bitų greitis	64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Internetas

Protokolai	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
Tiesioginis vaizdo žiūrėjimas	Up to 20 channels
API	Open-ended API, ISAPI, Hikvision SDK, Third-party management platform, ISUP, Open Network Video Interface (Profile S, Profile G, Profile T)
Sklandus srautas	Yes
User/Host	Up to 32 users. 3 levels: Administrator, Operator and User
Saugumas	User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Vidinė atmintis	NAS (NFS, SMB/ CIFS), ANR
Klientas	iVMS-4200, Hik-Connect, HikCentral
Naršyklė	IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Nuotrauka

Diena/Naktis režimas	Day, night, auto, scheduled-switch
Wide Dynamic Range (WDR)	140 dB WDR
SNR	≥ 52 dB
Rūko šalinimas	Optical defog
Vaizdo stabilizavimas	EIS (Built-in gyroscope to improve EIS performance)
Nuotraukų pagražinimas	BLC, HLC, 3D DNR
Privatumo kaukė	24 programmable polygon privacy masks, mask color or mosaic configurable
Regioninis fokusavimas	Yes
Regioninė ekspozicija	Yes

Sąsaja

Vaizdo išvestis	1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
Interneto sąsaja	1 RJ45 10M/100M self-adaptive Ethernet port
Saugyklos vieta	Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Garsas	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Signalizacija	7 alarm inputs, 2 alarm outputs
RS-485	HIKVISION, Pelco-P, Pelco-D, self-adaptive

Funkcijos

Pagrindinės funkcijos	Motion detection, video tampering alarm, alarm input and output, exception
Išmaniosios funkcijos	Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection
Sąsaja	Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Išmanus sekimas	Manual tracking, auto-tracking

Išmaniosios funkcijos

Veido atpažinimas

Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture

Perimetro apsauga

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Kelių eismo funkcijos

Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)

Pagrindinis

Sistemos parametrai	24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
Dydis	⌀ 231.1 mm × 355.6 mm (⌀ 9.10″ × 14″)
Svoris	Approx. 6 kg (13.23 lb.)
Darbo sąlygos	Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Pagrindinės funkcijos	Mirror, password protection, watermark, IP address filter
Kalba	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Patvirtinimai

EMC	FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
Saugumas	UL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
Aplinkosauga	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Apsauga	Lightning Protection, Surge Protection and Voltage Transient Protection, ±6 kV Line to Gnd, ±3kV Line to Line, IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
