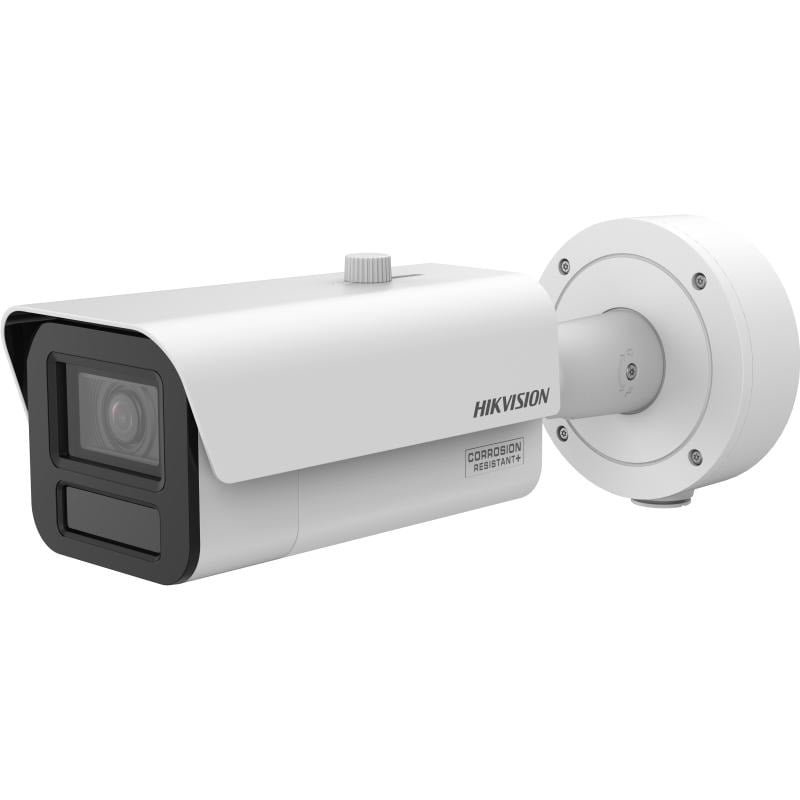

IP kamera Hikvision iDS-2CD7A46G2/P-IZHSY F2.8-12 (4MP, LPR, IR 60 m)
Preliminari mėnesinė įmoka nuo 46,50€ / 60 mėn.
1.406,42€(Kaina be PVM)1.701,77€(Kaina su PVM)
| Aukštos kokybės vaizdas su 4 MP raiška | |
| Puikus veikimas esant silpnam apšvietimui dėl DarkFighter 2.0 technologijos | |
| Sodrus vaizdas esant stipriam foniniam apšvietimui dėl 150 dB AWDR technologijos | |
| Efektyvi H.265+ suspaudimo technologija taupo pralaidumą ir atmintį | |
| 5 srautai skirtingiems taikymo poreikiams | |
| Atsparumas vandeniui ir dulkėms (IP67), atsparumas vandalizmui (IK10) ir korozijai (NEMA 4X, pasirenkama) | |
| Didelis kadrų dažnis – iki 2MP@120fps ir 4MP@60fps | |
| Integruotas šildytuvas užtikrina aiškų vaizdą lietingomis ar snieguotomis oro sąlygomis | |
| Integruotas G jutiklis vibracijos aptikimui | |
| Integruotas energijos matuoklis istorinei energijos statistikai | |
| Valstybinio numerio atpažinimas ir transporto priemonės atributų atpažinimas |
Neturime
Patvirtinimai
| Apsauga nuo korozijos | NEMA 4X (NEMA 250-2018) |
| Automatika | EN50121-4 |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015 |
| Aplinkosauga | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Kita | PVC FREE |
| Apsauga | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Saugumas | CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1 |
Garsas
| Garso bitų greitis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Garso atrankos dažnis | 8 kHz/16 kHz/32 kHz/48 kHz |
| Garso tipas | Mono sound |
| Pašalinių garsų šalinimas | Yes |
Camera
| Diena&Naktis | IR cut filter,Blue glass module (less ghost phenomenon) |
| Vaizdo jutiklis | 1/1.8″ Progressive Scan CMOS |
| Maks. rezoliucija | 2688 × 1520 |
| Min. apšvietimas | Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Užrakto greitis | 1 s to 1/100,000 s |
DORI
| DORI | Wide：2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 mTele:2.8 to 12 mm:D (Detect): 151.7 m, O (Observe): 60.2 m, R (Recognize): 30.3 m, I (Identify): 15.2 m8 to 32 mm:D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m |
Išmaniosios funkcijos
| Meta duomenys | Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggering |
| Kelių eismo ir transporto priemonių aptikimas | Smart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate ≥98%Capture rate ≥99%Driving direction accuracy rate ≥98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode |
Funkcijos
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection |
| Sąsaja | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning |
| Išmaniosios funkcijos | scene change detection,audio exception detection,defocus detection |
Bendra informacija
| Rasos šalinimas | Yes |
| Device Management | Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces |
| Matmenys | With -Y: Ø140 mm × 377.4 mm (Ø5.5″ × 14.9″), Without -Y: Ø144.1 mm × 374.7 mm (Ø5.7″ × 14.8″) |
| Pagrindinės funkcijos | Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log |
| Šildytuvas | Yes |
| Integrated Connector Panel | -Y: No |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Medžiaga | Aluminum alloy body |
| Pakuotės dydis | 425 mm × 190 mm × 180 mm (16.7″ × 7.5″ × 7.1″) |
| Energija | three-core terminal block,12 VDC ± 20%, 1.88 A, max. 22.56 W,24 VAC ± 20%, 1.57 A, max. 21.5 W,PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.4 A, max. 22.6 W |
| Darbo sąlygos | -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) |
| Sandėliavimo sąlygos | -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) |
| Svoris | Approx. 2170 g (4.78 lb.) |
| Svoris su įpakavimu | Approx. 3275 g (7.22 lb.) |
Apšvietimas
| IR bangos ilgis | 850 nm |
| Išmanus papildomas apšvietimas | Yes |
| Papildomo apšvietimo diapazonas | 2.8 to 12 mm: Monitoring: 60 m; 8 to 32 mm: Monitoring: 100 m |
| Papildomo apšviešimo tipas | IR |
Nuotrauka
| Diena/Naktis režimas | Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger |
| Nuotraukų pagražinimas | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Nuotraukos parametrų keitiklis | Yes |
| Vaizdo nustatymai | Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
| Vaizdo stabilizavimas | EIS |
| Nuotraukos perdanga | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Privatumo kaukė | 8 programmable polygon privacy masks |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 150 dB |
Sąsaja
| Alarm | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
| Garsas | 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound |
| Interneto sąsaja | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Galia | 12 VDC, max. 100 mA |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Perkrovimo mygtukas | Yes |
| Vaizdo išvestis | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
| Wiegand | 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit) |
Objektyvas
| Diafragma | 2.8 to 12 mm: F1.38 to F2.53, 8 to 32 mm: F1.7 to F1.73 |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 106° to 41.8°, vertical FOV 55.4° to 23.6°, diagonal FOV 130° to 48.1°8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3° |
| Fokusavimas | Auto,Semi-auto,Manual |
| Rainelės tipas | P-iris |
Mobile Communication
| Dažnis | NO |
| SIM Card Type | NO |
| Standartas | NO |
Tinklas
| API | ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Klientas | iVMS-4200,Hik-Connect,Hik-Central |
| Vidinė atmintis | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets |
| Saugumas | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256 |
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
| Naudotojas/prievadas | Up to 32 users3 user levels: administrator, operator, and user |
| Naršyklė | Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Vaizdas
| Bitų dažnio valdymas | CBR,VBR |
| Penktasis srautas | 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480) |
| Ketvirtas srautas | 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480) |
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Pagrindinis srautas | Monitoring mode:50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080)60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080)*High frame rate is supported under monitoring mode only.smart mode:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Antrinis srautas | 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480) |
| Tikslinis apkarpymas | Yes |
| Trečias srautas | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Vaizdo bitų greitis | 32 Kbps to 8 Mbps |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG |
| e-PTZ | Support Patrol and Auto Tracking settings |
| Svoris | 2,744 kg |
|---|---|
