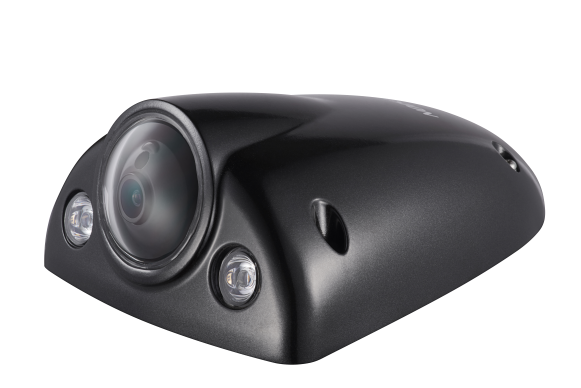

IP kamera DS-2XM6522G1-ID F2.8
385,25€(Kaina be PVM)466,15€(Kaina su PVM)
| IP kamera 2MP | |
| 2.8mm(~105°) objektyvas | |
| 120 dB WDR | |
| IR iki 10m | |
| H.265+ | |
| IP68, IK10 | |
| PoE |
Liko tik 1
Kamera
| Min. apšvietimas | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| P/N | PAL: 25fps NTSC: 30fps |
| Sensorius | 1/2.8″ Progressive Scan CMOS |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Case Type | Wedge |
| Lėtas užraktas | Yes |
| Rezoliucija | 2MP |
| Day & Night | IR Cut Filter |
| Kampo keitimas | 2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90° 4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90° |
Lęšis
| Focal Length & FOV | 2.8 mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126° 4 mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104° 6 mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62° |
| Lęšio montavimas | M12 |
| Lęšio tipas | Fixed Lens |
| Max. Aperture | 2.8 mm/4 mm/6 mm: F 1.6
|
Apšvietimas
| Išmanus papildomas apšvietimas | Yes |
| IR bangos ilgis | 850nm |
| IR distancija | Up to 30m |
Vaizdas
| Maks. rezoliucija | 1920 × 1080 |
| Pagrindinis srautas | 50Hz:25fps(1920 x 1080, 1280×960, 1280 x 720) 60Hz:30fps(1920 x 1080, 1280×960, 1280 x 720) |
| Antrinis srautas | 50Hz:25fps(704 x 576, 640×480, 352 x 288, 320×240) 60Hz:30fps(704 x 576, 640×480, 352 x 288, 320×240) |
| Trečias srautas | 50Hz:25fps(1920 x 1080, 1280×960, 1280×720, 704×576, 640×480, 352 x 288, 320×240) 60Hz:30fps(1920 x 1080, 1280×960, 1280×720, 704×480, 640×480, 352 x 240, 320×240) |
| Vaizdo suspaudimas | Main Stream: H.265 /H.264/H.264+/H.265+ Sub-Stream: H.265 /H.264 / H.264+/H.265+/MJPEG Third Stream: H.265 /H.264/H.264+/H.265+ |
| Vaizdo bitų greitis | Main Stream: 256 Kbps to 12 Mbps Sub-Stream: 256 Kbps to 4 Mbps Third Stream: 256 Kbps to 12 Mbps |
| H.264 tipas | BaseLine Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | Support 2 fixed region for (main/sub) stream |
Internetas
| Protokolai | TCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS , RTSP, SNMP, QOS, ISUP5.0, ISUP2.0 |
| Tiesioginis vaizdo žiūrėjimas | Up to 8 channels |
| API | HIKSDK, ONVIF (PROFILE S, PROFILE G,PROFILE T), ISAPI |
| User Management | Up to 16 users 3 levels: Administrator, Operator and User |
| Naršyklė | IE8+, Chrome45+, Edge41+, Firefox45+ |
Nuotrauka
| Wide Dynamic Range (WDR) | 120 dB |
| Išmanusis IR | No |
| Nuotraukos nustatymai | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Diena/Naktis režimas | Day/Night/Auto/Schedule |
| SNR | ＞50dB |
| Nuotraukų pagražinimas | BLC, HLC, 3D DNR |
| Privatumo kaukė | 4 regions of privacy mask |
| Nuotraukos perdanga | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| DNR | 3D DNR |
Sąsaja
| Interneto sąsaja | Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port -M: 1 four-core M12 aviation plug |
| SD Card Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Garsas | No |
| Signalizacija | No |
| RS-485 | No |
| Perkrovimo mygtukas | Yes |
| Šildytuvas | Yes |
Funkcijos
| Susiejimo metodas | Upload to FTP, notify monitoring center center, send email, trigger recording |
| Pagrindinės funckcijos | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, TF card error) |
| Išmaniosios funkcijos | Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Object detection: detects faces and upload images Scene change detection, defocus detection |
Pagrindinis
| Produkto matmenys | Camera: 163.7 mm × 122.6 mm × 65.1 mm (6.4″ × 4.8″ × 2.6″) With package: 252 mm × 190 mm × 108 mm (9.9 × 7.5″ × 4.3″)” |
| Maitinimas | -I/ND: RJ45 interface, PoE power supply -ID: Ø 5.5 mm coaxial power plug, DC power supply -IDM: two-core Molex connector, DC power supply -IM/ND: four-core M12 aviation plug, PoE power supply |
| Energijos sunaudojimas | -ID, -IDM: 9~36 V DC, max. 10 W -I/ND, -IM/ND: PoE: (802.3af, 36 V to 57 V), max. 10 W |
| Apsauga | IP68(IEC 60529-2013), IK10(IEC 62262:2002), IP69K(ISO 20653:2013) |
| Maitinimas | -ID, -IDM: 9-36V, two-core terminal block, reverse polarity protection&PoE802.3af; -I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 3 |
| Medžiaga iš kurios padaryta kamera | Metal |
| Produkto svoris | Camera: Approx. 905 g (2.0 lb.) With package: 1271 g (2.8 lb.) |
| Darbo sąlygos | -30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing) |
| Kalba | Support English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish,Czech |
| Pagrindinės funkcijos | Anti-flicker, 3 streams, heartbeat, mirror, privacy mask |
Patvirtinimai
| Electrical Safety Protection | IK10(IEC 62262:2002） |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); |
| Saugumas | CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); |
| Aplinkosauga | CE-RoHS (2011/65/EU); |
| Automatika | EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10) |
| Svoris | 3,5 kg |
|---|
