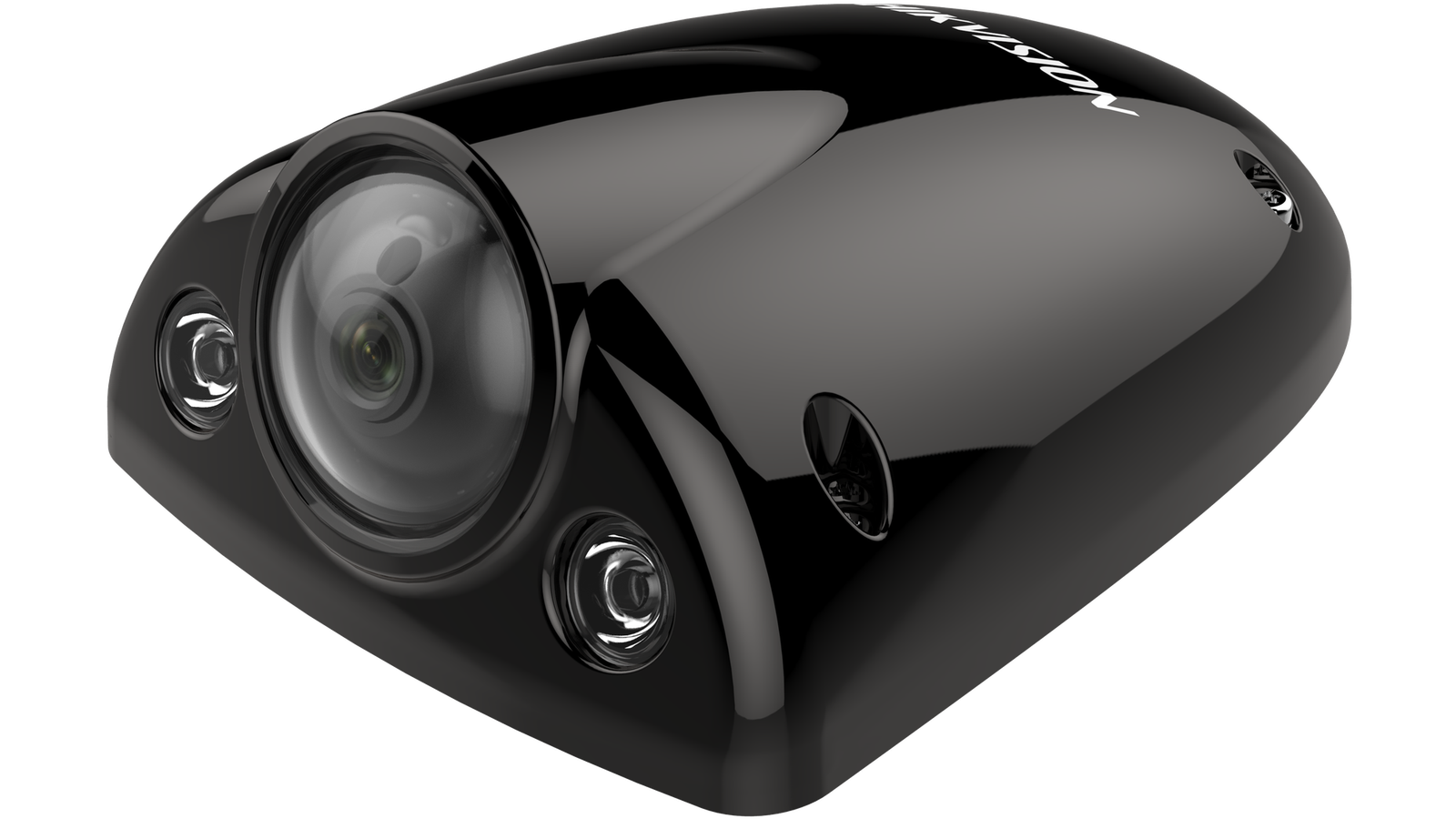

IP kamera DS-2XM6512G0-I/ND F2.8
Preliminari mėnesinė įmoka nuo 13,80€ / 36 mėn.
292,41€(Kaina be PVM)353,82€(Kaina su PVM)
| IP kamera 1.3MP | |
| 2.8/4/6 mm fiksuotas objektyvas | |
| 120 dB WDR | |
| IR iki 10m | |
| H.265+ | |
| IP68, IK08 | |
| PoE |
Liko tik 1
Kamera
| Sensorius | 1/2.8″ Progressive Scan CMOS |
| Min. apšvietimas | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Užrakto greitis | 1 s to 1/100,000 s |
| Lėtas užraktas | Yes |
| WDR | 120 dB |
| Day & Night | IR Cut Filter |
| Kampo keitimas | 2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90° 4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90° |
Lęšis
| Focal Length & FOV | 2.8 mm: horizontal FOV 104°, vertical FOV 56°, diagonal FOV 121° 4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59° |
| Lęšio montavimas | M12 |
| Diafragama | 2.8 mm/4 mm: F2.0; 6 mm: F1.6 |
Vaizdas
| Maks. rezoliucija | 1536 × 864 |
| Pagrindinis srautas | 50Hz: 50 fps (1536 × 864, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 60 fps (1536 × 864, 1280 × 720, 704 × 480, 640 × 480) |
| Antrinis srautas | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240) |
| Trečias srautas | 50Hz: 25fps (1536 × 864, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (1536 × 864, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240) |
| Vaizdo suspaudimas | Main Stream: H.265 /H.264 Sub-Stream: H.265 /H.264 / MJPEG Third Stream: H.265 /H.264 |
| Vaizdo bitų greitis | 32 Kbps to 16 Mbps |
| H.264 tipas | BaseLine Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Garsas
| Garso suspaudimas | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Garso bitų greitis | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8Kbps-320Kbps(MP3) |
| Garso atrankos dažnis | 8kHz/16kHz/32kHz/44.1kHz/48kHz |
| Pašalinių garsų šalinimas | Yes |
Internetas
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Vidinė atmintis | MicroSD/SDHC/SDXC card (up to 128 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Klientas | iVMS-4200, Hik-Connect, Hik-Central |
| Naršyklė | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11; Local service: Chrome 41.0+, Firefox 30.0-51 |
Nuotrauka
| Nuotraukos nustatymai | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Diena/Naktis režimas | Day/Night/Auto/Schedule |
| Nuotraukų pagražinimas | BLC, HLC, 3D DNR, Defog, EIS |
| DNR | 3D DNR |
Sąsaja
| Interneto sąsaja | Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port -M: 1 four-core M12 aviation plug |
| Vidinė atmintis | No |
| Garsas | No |
| Signalizacija | No |
| Perkrovimo mygtukas | Yes |
Funkcijos
| Pagrindinės funckcijos | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Išmaniosios funkcijos | Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Object detection: detects objects and upload images Scene change detection, defocus detection |
| Sąsaja | Upload to FTP/NAS/memory card, notify monitoring center, send email, trigger recording, trigger capture |
Pagrindinis
| Kameros dydis | Camera: 163.7 × 122.6 × 65.1 mm (6.4″ × 4.8″ × 2.6″) With package: 252 × 190 × 108 mm(9.9 × 7.5″ × 4.3″)” |
| Kameros svoris | Camera: Approx. 850 g (1.9 lb.) With package: 1200 g (2.6 lb.) |
| Darbo sąlygos | -40 °C to 70 °C (-40 °F to 158 °F).Humidity 95% or less (non-condensing) |
| Pagrindinės funkcijos | Anti-flicker, 3 streams, heartbeat, mirror, privacy mask |
| Energijos sunaudojimas | -ID, -IDM: 24 VDC, 0.36 A, max. 8.6 W -I/ND, -IM/ND: PoE: (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 8.8 W |
| Maitinimas | -ID, -IDM: 24 VDC ± 25%, two-core terminal block, reverse polarity protection; -I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 0 |
| Svoris | 0,918 kg |
|---|
