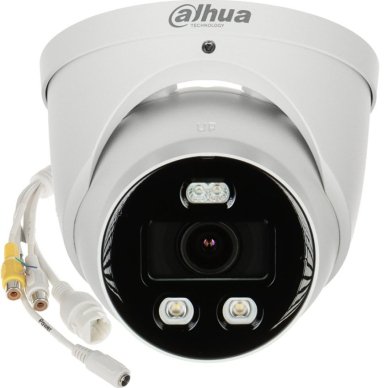

IP kamera Dahua Dome IPC-HDW3849H-AS-PV-0280B-PRO (Balta, 8MP, 2.8mm 109°, IR LED 30m, IP67)
11,69€ / 36 mėn.
243,98€(Kaina be PVM)295,21€(Kaina su PVM)
| Tipas: IP kamera | |
| Modelis: IPC-HDW3849H-AS-PV-0280B-PRO | |
| Prekės ženklas: Dahua | |
| Serija: WizColor | |
| Vaizdo jutiklis: 8 MP | |
| Objektyvas: 2.8 mm (109°) | |
| Apšvietimas: IR LED, iki 30 m | |
| Garsas: Integruotas mikrofonas | |
| Vaizdo technologijos: 120 dB WDR, 3D DNR, HLC, BLC | |
| Pažangios funkcijos: Perimetro apsauga, SMD 4.0, defog | |
| PoE | |
| Atmintis: SD kortelė iki 256 GB | |
| Atsparumas: IP67 |
Turime
Pagrindinis
| Sensorius | 1/1.8″ CMOS |
| Maks. rezoliucija | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 2 G |
| Skenavimo sistema | Progressive |
| Elektroninis užrakto greitis | Auto/Manual 1/3 s–1/100,000 s |
| Min. apšvietimas | 0.0008 Lux@F1.0 (Color, 30IRE), 0.0004 Lux@F1.0 (B/W, 30IRE), 0 lux (Illuminator on) |
| S/N santykis | >56 dB |
| Apšvietimo atstumas | Up to 30 m (98.43 ft) (IR), Up to 30 m (98.43 ft) (Warm light) |
| Apšvietimo valdymas | Auto; Manual |
| Apšvietimo skaičius | 2 (Multi-core (IR + warm) light) |
| Kampo keitimas | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Lęšio tipas | Fixed-focal |
| Lęšio montavimas | M16 |
| FOV | 2.8 mm; 3.6 mm |
| Maks. diafragma | F1.0 |
| FOV | 2.8 mm: H: 109°; V: 59°; D: 131°, 3.6 mm: H: 93°; V: 50°; D: 111° |
| Diafragmos valdymas | Fixed |
| Artimiausias fokusavimas | 2.8 mm: 3.2 m (10.50 ft), 3.6 mm: 4.4 m (14.44 ft) |
| DORI Distance (2.8 mm) | Detect: 82.0 m (269.03 ft), Observe: 32.8 m (107.64 ft), Recognize: 16.4 m (53.81 ft), Identify: 8.2 m (26.90 ft) |
| DORI Distance (3.6 mm) | Detect: 100.0 m (328.08 ft), Observe: 40.0 m (131.23 ft), Recognize: 20.0 m (65.62 ft), Identify: 10.0 m (32.81 ft) |
| IVS (Perimetro apsauga) | Intrusion, tripwire (supports classification and accurate detection of vehicles and humans) |
| SMD | SMD 4.0 |
| AcuPick | Deep learning-based target matching and search for people and motor vehicles |
| AI SSA | Deep learning algorithms adjust image parameters based on conditions |
| Išmanioji paieška | Works with Smart NVR for refined intelligent search and event extraction |
| Vaizdo suspaudimas | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Išmanusis kodekas | Smart H.265+; Smart H.264+ |
| AI kodavimas | AI H.265 (≥25% compression rate), AI H.264 (≥25% compression rate) |
| Vaizdo kadrų dažnis | Main stream: 3840 × 2160@(1–25/30 fps), Sub stream: 1920 × 1080@(1–25/30 fps), Third stream: 1920 × 1080@(1–25/30 fps) |
| Srauto pajėgumas | 3 streams |
| Rezoliucija | 8M (3840 × 2160), 6M (3200 × 1800), 5M (3072 × 1728), 4M (2688 × 1520/2560 × 1440), 3M (2304 × 1296), 1080p (1920 × 1080), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
| Bitų greičio kontrolė | CBR/VBR/ABR |
| Vaizdo bitų greitis | H.264: 3 kbps–16384 kbps, H.265: 3 kbps–16384 kbps |
| Dienos/nakties režimas | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| Baltos spalvos balansas | Auto; Natural; Street lamp; Outdoor; Manual; Regional custom |
| Stiprinimo valdymas | Auto |
| Triukšmo mažinimas | 3D NR |
| Judesių aptikimas | OFF/ON (4 areas, rectangular) |
| Intereso sritis | Yes (4 areas) |
| Išmanusis apšvietimas | Yes |
| Smart Dual Light | Yes |
| Rūko šalinimas | Yes |
| Vaizdo rotacija | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower) |
| Veidrodis | Yes |
| Privatumo maskavimas | 8 areas |
| LDC | Yes |
| Integruotas mikrofonas | Yes, dual Mic |
| Įmontuotas garsiakalbis | Yes, built-in speaker |
| Garso suspaudimas | PCM; G.711a; G.711Mu; G.726; G.723 |
| Pavojaus įvykis | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception |
| Tinklo prievadas | RJ-45 (10/100 Base-T) |
| SDK ir API | Yes |
| Protokolai | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Suderinamumas | ONVIF (Profile S; Profile G; Profile T); CGI |
| Naudotojas/prievadas | 20 (Total bandwidth: 64 M) |
| Saugykla | FTP; SFTP; Micro SD card (max. 512 GB); NAS |
| Naršyklė | IE11; Chrome; Firefox |
| Valdymo programinė įranga | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobilioji programa | iOS; Android |
| Kibernetinis saugumas | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Sertifikatai | CE-LVD: EN 62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Garso įvestis | 1 channel (RCA port) |
| Garso išvestis | 1 channel (RCA port) |
| Signalizacijos įvestis | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Signalizacijos išvestis | 1 channel out: wet contact, 300 mA 12 VDC |
| Maitinimas | 12 VDC; PoE |
| Dual Power Backup | Supports power redundancy when using both adapter and PoE, but will not restart when one is disconnected |
| Energijos sunaudojimas | Basic: 4.1 W (12 VDC); 6 W (PoE), Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.2 W (12 VDC); 10 W (PoE) |
| Darbo sąlygos (temperatūra) | –40 °C to +60 °C (–40 °F to +140 °F) |
| Darbo sąlygos (drėgmė) | ≤95% |
| Apsauga | IP67 |
| Korpuso medžiagas | Metal |
| Produkto dydis | Φ122.0 mm × 116.1 mm (4.80″ × Φ4.57″) |
| Svoris be įpakavimo | 0.8 kg (1.76 lb) |
| Svoris su įpakavimo | 1.0 kg (2.20 lb) |
| Svoris | 0,796 kg |
|---|---|
| Gamintojas |
