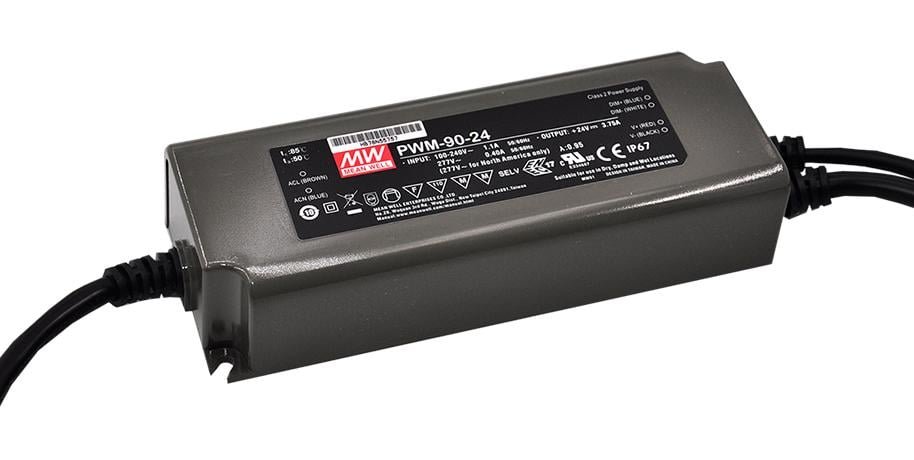

Impulsinis maitinimo šaltinis 24V 3.75A 90W IP67, dimeriuojamas
4,86€ / 12 mėn.
46,69€(Kaina be PVM)56,49€(Kaina su PVM)
| Tipas: Impulsinis maitinimo šaltinis | |
| Modelis: PWM-90-24 | |
| Įėjimo įtampos diapazonas: IN 90-305VAC / 127-431VDC | |
| Įtampa: 24V | |
| Galia: 90W | |
| Srovė: 3.75A | |
| Darbinė temperatūra: -40°C ÷ +70°C | |
| Dimeriavimas: 3in1 (0-10V; PWM, Rezistorius) | |
| Apsaugos klasė: OVC II | |
| Matmenys: 171 x 63 x 37.5 mm | |
| IP reitingas: IP67 | |
| Prekės ženklas: MEAN WELL |
Turime
Bendrieji duomenys
| Modelis | PWM-90-24 |
| Išvesties įtampa | 24V DC |
| Nominali srovė | 3.75A |
| Nominali galia | 90W |
| Output Type | Constant Voltage PWM style |
| PWM Frequency | 1.47kHz (Blank/DA type), 2.5kHz (DA2 type) |
| Dimming Function | 3-in-1 dimming (0–10VDC, 10V PWM, Resistance) |
| Dimming Range | 0 – 100% |
| Minimum Dimming Duty Cycle | 0.15% (0% possible under specific conditions) |
| Įvesties įtampos diapazonas | 90 – 305VAC / 127 – 431VDC |
| Dažnių diapazonas | 47 – 63 Hz |
| Galios faktorius | ≥0.98 @ 115VAC, ≥0.96 @ 230VAC, ≥0.92 @ 277VAC (full load) |
| Naudingumo koeficientas (tip.) | 90.5% |
| AC Current | 0.95A @ 115VAC, 0.5A @ 230VAC, 0.4A @ 277VAC |
| Įjungimo srovė | 60A @ 230VAC (cold start) |
| Nutekėjimo srovė | <0.25mA @ 277VAC |
| Perkrovos apsauga | 108–130% of rated power, hiccup mode, auto recovery |
| Viršįtampio apsauga | 28 – 34V, shutdown, re-power to recover |
| Over Temperature Protection | Shutdown, auto recovery |
| Hold-up Time | 16ms @ 115/230VAC |
| Setup Time | 500ms, Rise Time 80ms @ 115/230VAC |
| Operating Temperature (Tcase) | –40°C to +85°C |
| Max. Case Temperature | +85°C |
| Darbo drėgmė | 20 – 95% RH (non-condensing) |
| Storage Temperature/Humidity | –40 to +80°C / 10 – 95% RH |
| Isolation Voltage | I/P–O/P: 3.75kVAC |
| Izoliacijos varža | ≥100MΩ @ 500VDC / 25°C / 70% RH |
| EMC standartai | EN55015, EN61000-3-2 (Class C), EN61000-3-3, EN61547, EAC TP TC 020 |
| EMC imunitetas | EN61000-4-2~6,8,11; surge immunity 2kV (Line-Line) |
| Safety Approvals | UL8750, CSA C22.2 No.250.13-12, EN61347-1/-2-13, EN62384, BIS, GB19510.1/.14, IP67, EAC TP TC 004 |
| DALI/DALI-2 Support | DA/DA2 versions available with IEC62386 compliance |
| Korpusas | IP67 rated plastic housing, fully encapsulated, Class II |
| Aušinimas | Method Fanless (natural convection) |
| MTBF | >2.39M hours (Telcordia); >224k hours (MIL-HDBK-217F @ 25°C) |
| Matmenys | 171 × 63 × 37.5 mm (L × W × H) |
| Svoris | 0.77 kg; Packing: 18 pcs / 14.9 kg / 0.97 CUFT |
| Wiring AC Input | Brown (L), Blue (N) |
| Wiring DC Output | Red (+V), Black (–V) |
| Wiring Dimming | Purple (DIM+), Pink (DIM–) |
| Naudojimas | LED strip lighting, indoor LED, decorative, architectural, and industrial lighting |
| Garantija | 5 years |
| Svoris | 0,759 kg |
|---|---|
