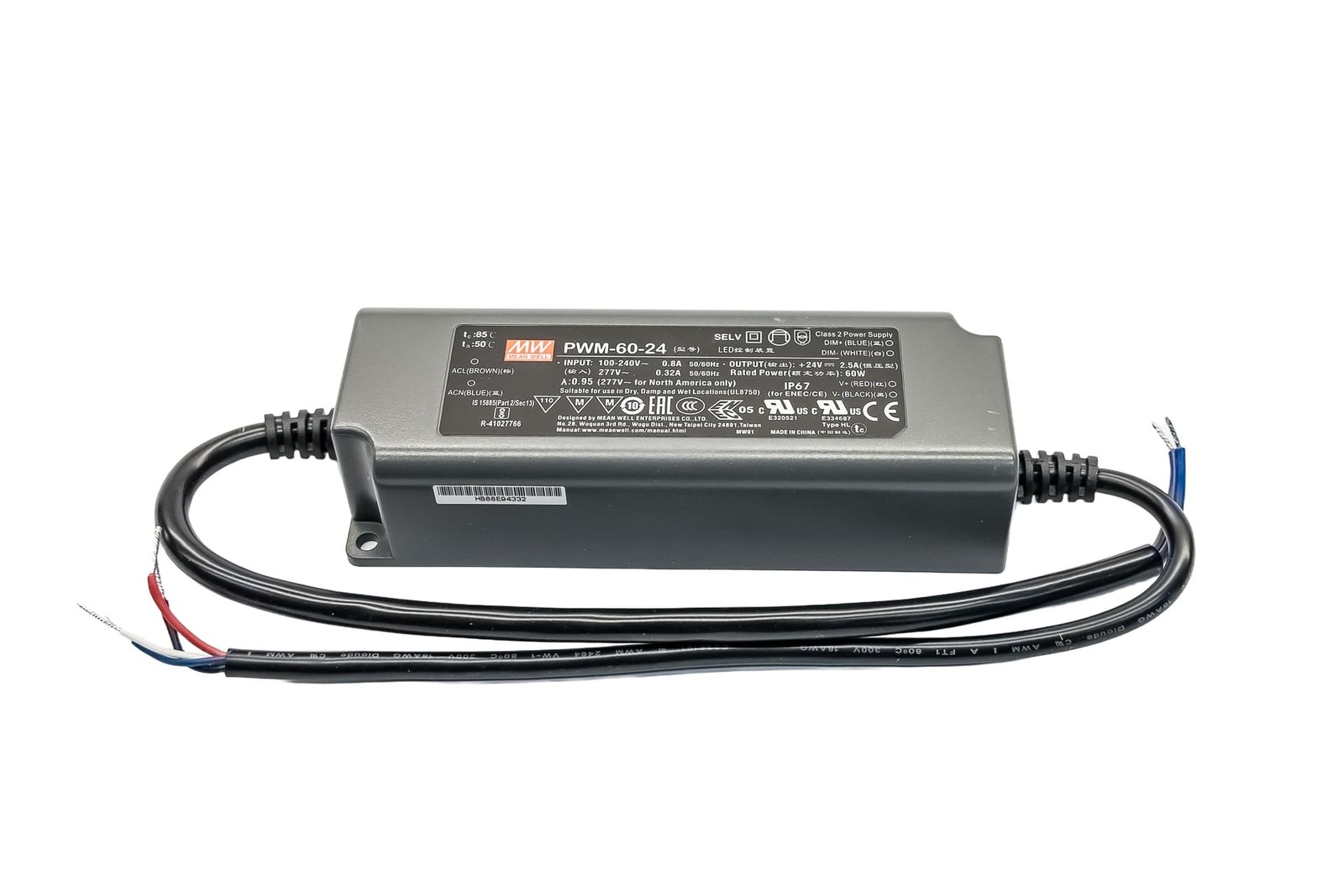

Impulsinis maitinimo šaltinis 24V 2.5A MEAN WELL
6,79€ / 6 mėn.
33,01€(Kaina be PVM)39,94€(Kaina su PVM)
| Tipas: Impulsinis maitinimo šaltinis | |
| Modelis: PWM-60-24 | |
| Įėjimo įtampos diapazonas: IN 90-305VAC / 127-431VDC | |
| Galia: 60W | |
| Srovė: 2.5A | |
| Įtampa: 24V | |
| Darbinė temperatūra: -40°C ÷ +85°C | |
| Apsaugos klasė: OVC II | |
| Matmenys: 159 x 97 x 30 mm | |
| IP reitingas: IP67 | |
| Prekės ženklas: MEAN WELL |
Turime
Bendrieji duomenys
| Modelis | PWM-60-24 |
| Išvesties įtampa | 24V DC |
| Nominali srovė | 2.5A |
| Nominali galia | 60W |
| Output Type | Constant voltage PWM-style output |
| Dimming Function | 3-in-1: 0–10V DC, 10V PWM signal, or resistance (Blank Type); DALI / DALI-2 (DA / DA2 Types) |
| PWM Frequency | 1.47 kHz (Blank/DA Type), 2.5 kHz (DA2 Type) |
| Įvesties įtampos diapazonas | 90 – 305 VAC / 127 – 431 VDC |
| Įvesties dažnis | 47 – 63 Hz |
| Naudingumo koeficientas (tip.) | 89% |
| Galios faktorius | >0.97 @ 115 VAC, >0.95 @ 230 VAC, >0.92 @ 277 VAC |
| Kintamosios srovės stipris (tip.) | 0.4A @ 230 VAC |
| Įjungimo srovė | Cold start 50A @ 230 VAC (measured at 50% Ipeak, twidth = 270μs) |
| Nutekėjimo srovė | <0.25 mA @ 277 VAC |
| Energijos suvartojimas be apkrovos | <0.5W |
| Perkrovos apsauga | 108–130% rated power (hiccup mode, auto recovery) |
| Overvoltage Protection | 28–34V (shutdown, re-power to recover) |
| Overtemperature Protection | Shutdown, re-power to recover |
| Short Circuit Protection | Shutdown, auto recovery (DA2: hiccup mode) |
| Darbinė temperatūra | Tcase: –40°C to +85°C |
| Max. Case Temperature | +85°C |
| Darbo drėgmė | 20 – 95% RH non-condensing |
| Storage Temperature / Humidity | –40°C to +80°C / 10 – 95% RH |
| Vibration Resistance | 10 – 500 Hz, 5G, 12 min/cycle, 72 min for X, Y, Z axes |
| Temperatūros koeficientas | ±0.03% / °C (0 – 50°C) |
| MTBF | 2626.6K hrs (Telcordia SR-332); 227.1K hrs (MIL-HDBK-217F @ 25°C) |
| Saugos standartai | UL8750, UL879 (for 12/24V Blank Type), CSA C22.2 No. 250.13-12, EN61347-1/-2-13, EN62384, IP67, BIS IS 15885 (for 12/24/48 Blank, 12/24-DA2), GB19510.1/.14 |
| DALI Standards | IEC62386-101/102/207/251 (DA/DA2 Types), DT6 device type |
| EMC standartai | EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2/3/4/5/6/8/11, EN61547 |
| Atsparumo įtampa | I/P–O/P: 3.75kVAC; I/P–DA: 1.5kVAC; O/P–DA: 1.5kVAC |
| Izoliacijos varža | 100 MΩ @ 500VDC / 25°C / 70% RH |
| Matmenys | 150 × 53 × 35 mm (L×W×H) |
| Svoris | 0.49 kg; Packing: 30 pcs / 15.7 kg / 1.0 CUFT |
| Connection Wire | UL2464 18AWG (Vo), 22AWG (DIM) |
| Waterproof Level | IP67 |
| Naudojimas | LED strip lighting, indoor lighting, decorative lighting, architectural lighting, industrial lighting |
| Mounting Direction | Horizontally mounted on flat surface (recommended) |
| Pastabos | Do not connect DIM– to Vo–; suitable for indoor or covered outdoor use; avoid submersion >30 min |
| Garantija | 5 years |
| Typical Lifetime | >50,000 hours @ Tcase ≤ 75°C |
| Svoris | 0,478 kg |
|---|---|
