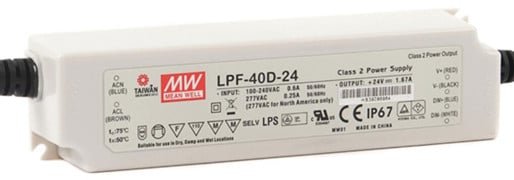

Impulsinis maitinimo šaltinis 24V 1.67A 40.8W IP67, dimeriuojamas
7,75€ / 6 mėn.
37,65€(Kaina be PVM)45,56€(Kaina su PVM) su PVM
- Tipas: Impulsinis maitinimo šaltinis
- Modelis: LPF-40D-24
- Įėjimo įtampos diapazonas: IN 90-305VAC / 127-431VDC
- Įtampa: 24V
- Galia: 40.8W
- Srovė: 1.67A
- Darbinė temperatūra: -35°C ÷ +70°C
- Dimeriavimas: 3in1 (0-10V; PWM, Rezistorius)
- Apsaugos klasė: OVC II
- Matmenys: 165 x 43 x 32 mm
- IP reitingas: IP67
- Prekės ženklas: MEAN WELL
Turime
- Bendrieji duomenys
- ModelisLPF-40D-24
- Išvesties įtampa24V DC
- Nominali srovė1.67A
- Nominali galia40.08W
- Constant Current Region14.4 – 24V
- Current Tolerance±5%
- Current Ripple≤5% @ rated current
- Įtampos diapazonas90 – 305 VAC / 127 – 431 VDC
- Dažnių diapazonas47 – 63 Hz
- Naudingumo koeficientas (tip.)87%
- Galios faktorius≥0.97 @ 115 VAC, ≥0.95 @ 230 VAC, ≥0.92 @ 277 VAC (full load)
- THD (Total Harmonic Distortion)<20% @ ≥60% load (115/230V), ≥75% (277V)
- Kintamosios srovės stipris (tip.)0.6A @ 115 VAC / 0.3A @ 230 VAC / 0.25A @ 277 VAC
- Įjungimo srovėCold start 50A @ 230 VAC (twidth = 210µs)
- Max. No. of PSUs on 16A Breaker12 units (B type), 20 units (C type) @ 230VAC
- Dimming Function3-in-1 (0–10VDC, 10V PWM, resistance)
- Dimming Source Current100µA (typ.)
- ApsaugosShort circuit, over current, over voltage (28–35V), over temperature (auto-recovery)
- Nustatymo, pakilimo laikas1000ms, 80ms @ 115 VAC; 500ms, 80ms @ 230 VAC
- Hold-up Time16ms @ 115/230 VAC
- Operating Temperature (Tcase)–40°C to +80°C
- Max. Case Temperature+80°C
- Storage Temperature / Humidity–40°C to +80°C / 10 – 95% RH
- Darbo drėgmė20 – 95% RH (non-condensing)
- Isolation VoltageI/P–O/P: 3.75kVAC
- Izoliacijos varža≥100 MΩ @ 500VDC, 25°C, 70% RH
- EMC emisijaEN55015, EN61000-3-2 Class C, EN61000-3-3, GB/T17743, GB17625.1, EAC
- EMC imunitetasEN61000-4-2~6,8,11; EN61547 (light industry level), EAC
- Saugos standartaiUL8750, CSA C22.2 No.250.0-08, ENEC EN61347-1/-2-13, EN62384, GB19510.1/.14, IP67, EAC
- KorpusasPlastic housing, Class II, IP67 rated (indoor/outdoor use)
- AušinimasMethod Free air convection (fanless)
- Matmenys162.5 × 43 × 32 mm (L × W × H)
- Svoris0.45 kg; Packing: 32 pcs / 15.4 kg / 0.93 CUFT
- Lifetime (MTBF)>50,000 hours @ Tcase ≤ 70°C
- NaudojimasLED panel lighting, downlights, decorative and tunnel lighting, moving signs
- Garantija5 years
| Svoris | 0,398 kg |
|---|---|
