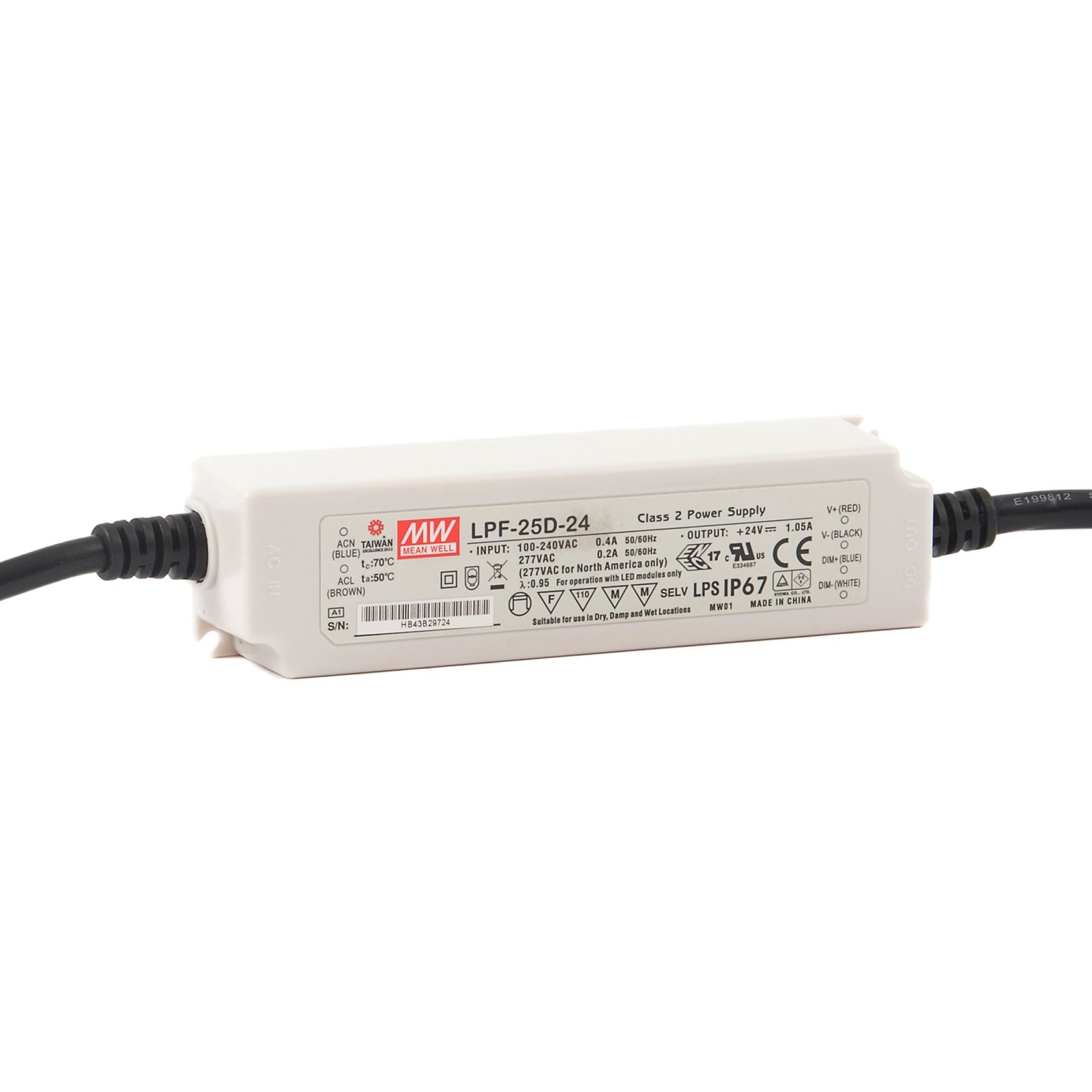

Impulsinis maitinimo šaltinis 24V 1.05A 25.2W IP67, dimeriuojamas

6,81€ / 6 mėn.

33,09€(Kaina be PVM)40,04€(Kaina su PVM) su PVM

Tipas: Impulsinis maitinimo šaltinis
Modelis: LPF-25D-24
Įėjimo įtampos diapazonas: IN 90-305VAC / 127-431VDC
Įtampa: 24V
Galia: 25.2W
Srovė: 1.05A
Darbinė temperatūra: -35°C ÷ +70°C
Dimeriavimas: 3in1 (0-10V; PWM, Rezistorius)
Apsaugos klasė: OVC II
Matmenys: 148 x 40 x 32 mm
IP reitingas: IP67
Prekės ženklas: MEAN WELL

Turime

Gamintojas: Mean Well SKU: MWLPF25D24

Kategorijos: 12 V AC, DC, Maitinimo šaltiniai, Maitinimo šaltiniai

Žymos: 12 V AC, DC, Main, Maitinimo šaltiniai Prekės ženklas: Mean Well

Aprašymas
Papildoma informacija

Bendrieji duomenys
ModelisLPF-25D-24
Išvesties įtampa24V DC
Nominali srovė1.05A
Nominali galia25.2W
Output TypeConstant Current Mode
Dimming Function3-in-1 (0–10VDC, 10V PWM, Resistance)
Įtampos diapazonas90 – 305 VAC / 127 – 431 VDC
Dažnių diapazonas47 – 63 Hz
Naudingumo koeficientas (tip.)85.5%
Power Factor (PF)PF ≥ 0.97 @ 115 VAC, PF ≥ 0.95 @ 230 VAC, PF ≥ 0.92 @ 277 VAC (full load)
THD (Total Harmonic Distortion)<20% @ ≥60% load (115/230V), ≥75% (277V)
AC Current0.4A @ 115 VAC, 0.25A @ 230 VAC, 0.2A @ 277 VAC
Įjungimo srovėCold start 50A @ 230 VAC (twidth = 200μs)
No. of Drivers on 16A Circuit12 (type B breaker) / 21 (type C breaker) @ 230VAC
Nutekėjimo srovė<0.75 mA @ 240 VAC
Short Circuit ProtectionHiccup mode, auto recovery
Viršįtampio apsauga28–35V, auto recovery
Over Temperature ProtectionShutdown, auto recovery after cooling
Current Tolerance±5%
Current Ripple≤5% @ rated current
Setup/Rise Time500ms, 80ms @ 230VAC; 1500ms, 80ms @ 115VAC
Hold-up Time16ms @ 230VAC / 115VAC
Operating Temperature (Tcase)–35°C to +70°C
Maximum Case Temperature+70°C
Darbo drėgmė20 – 95% RH (non-condensing)
Storage Temperature / Humidity–40°C to +80°C / 10 – 95% RH
Isolation VoltageI/P–O/P: 3.75kVAC
Izoliacijos varža≥100 MΩ @ 500VDC, 25°C, 70% RH
EMC atitiktisEN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547, EN61000-4-2~6,8,11, EAC TP TC 020
Saugos standartaiUL8750, CSA C22.2 No. 250.0-08, ENEC EN61347-1/-2-13, EN62384, IP67 (independent), GB19510.1/.14, EAC TP TC 004
KorpusasPlastic housing, Class II design, IP67 waterproof
AušinimasMethod Free air convection (fanless)
Lifetime>50,000 hours (Tcase ≤ 70°C)
Matmenys148 × 40 × 32 mm (L × W × H)
Svoris0.36 kg; Packing: 40 pcs / 15.4 kg / 1.02 CUFT
WiringAC: Blue (N), Brown (L); Output: Red (+V), Black (–V); Dimming: Purple (DIM+), Pink (DIM–)
SavybėsBuilt-in active PFC, Class 2 power unit, SELV output, suitable for dry/damp/wet locations, 100μA source current on DIM+
NaudojimasLED panel lighting, LED downlights, decorative & tunnel lighting, moving signs
Garantija5 years

Svoris	0,363 kg
Gamintojas	Mean Well
