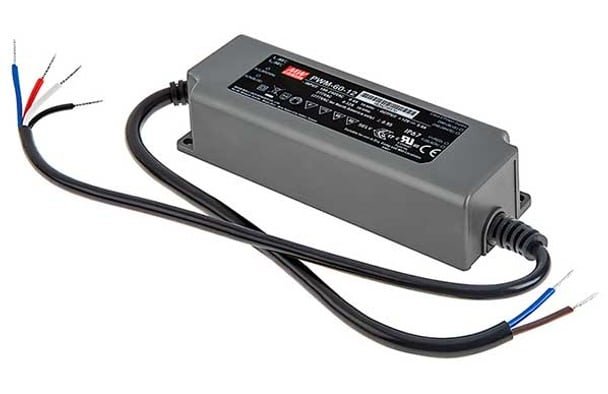

Impulsinis maitinimo šaltinis 12V 6.5A MEAN WELL
6,79€ / 6 mėn.
33,01€(Kaina be PVM)39,94€(Kaina su PVM)
| Tipas: Impulsinis maitinimo šaltinis | |
| Modelis: PWM-60-12 | |
| Įėjimo įtampos diapazonas: IN 90-305VAC / 127-431VDC | |
| Galia: 60W | |
| Srovė: 6.5A | |
| Įtampa: 12V | |
| Darbinė temperatūra: -40°C ÷ +85°C | |
| Apsaugos klasė: OVC II | |
| Matmenys: 159 x 97 x 30 mm | |
| IP reitingas: IP67 | |
| Prekės ženklas: MEAN WELL |
Turime
Bendrieji duomenys
| Modelis | PWM-60-12 |
| Išvesties įtampa | 12V DC |
| Nominali srovė | 5A |
| Nominali galia | 60W |
| Output Type | Constant voltage PWM style output |
| Dimming Method | 3-in-1 (0–10V DC, 10V PWM signal, or resistance) |
| PWM Frequency | 1.47 kHz (Blank/DA types), 2.5 kHz (DA2 type) |
| Įvesties įtampos diapazonas | 90 – 305 VAC / 127 – 431 VDC |
| Įvesties dažnis | 47 – 63 Hz |
| Naudingumo koeficientas (tip.) | 86% |
| AC Current | 0.4A @ 230 VAC |
| Įjungimo srovė | Cold start 50A @ 230 VAC |
| Nutekėjimo srovė | <0.25 mA @ 277 VAC |
| Apsaugos | Overload, overvoltage, overtemperature, short circuit |
| Darbinė temperatūra | Case temperature: –40°C to +85°C |
| Darbo drėgmė | 20 – 95% RH (non-condensing) |
| Sandėliavimo sąlygos | –40 to +80°C, 10 – 95% RH |
| IP klasė | IP67 (all models) |
| Isolation Voltage | I/P–O/P: 3.75kVAC; I/P–DA: 1.5kVAC; O/P–DA: 1.5kVAC |
| Izoliacijos varža | 100 MΩ @ 500 VDC, 25°C, 70% RH |
| Saugos standartai | UL8750, UL879 (only 12V/24V Blank), CSA C22.2 No. 250.13-12, EN61347-1/-2-13, EN62384, IS 15885, EAC, GB19510, IP67 |
| EMC atitiktis | EN55015, EN61000-3-2, EN61000-3-3, EN61547, EN61000-4 series |
| DALI Compliance (DA/DA2 types) | IEC62386-101, 102, 207, 251; Device type DT6 |
| Lifetime | >50,000 hours @ Tcase ≤ 75°C |
| Matmenys | 150 × 53 × 35 mm |
| Svoris | 0.49 kg; Packing: 30 pcs / 15.7 kg / 1.0 CUFT |
| Naudojimas | LED strip lighting, indoor LED lighting, decorative lighting, architectural lighting, industrial lighting |
| Garantija | 5 years |
| Pastabos | Do not connect DIM– to Vo–; install indoors or in covered outdoor areas; may be submerged for up to 30 min |
| Svoris | 0,482 kg |
|---|---|
