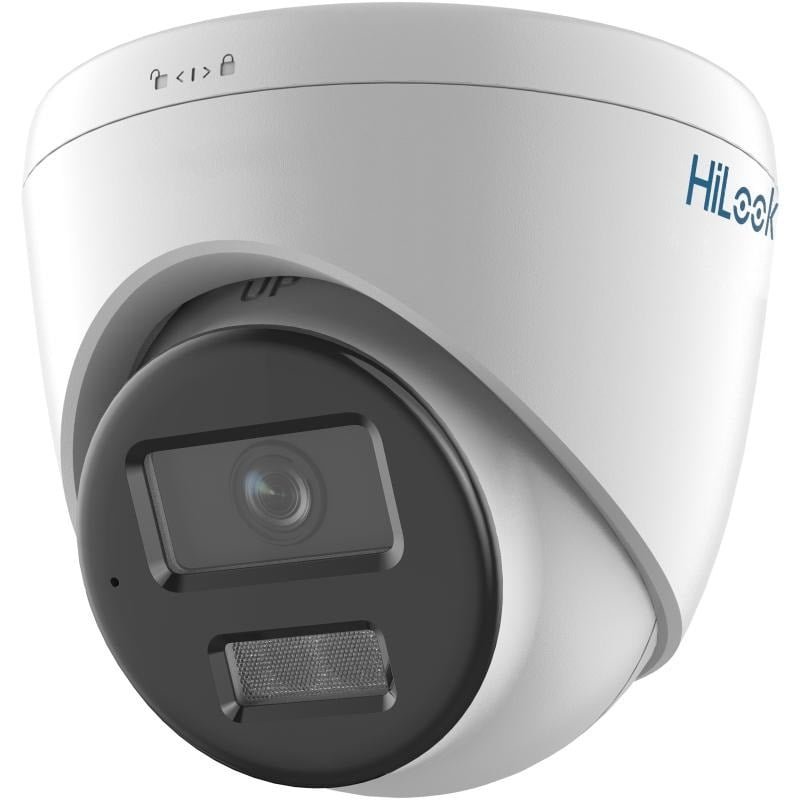

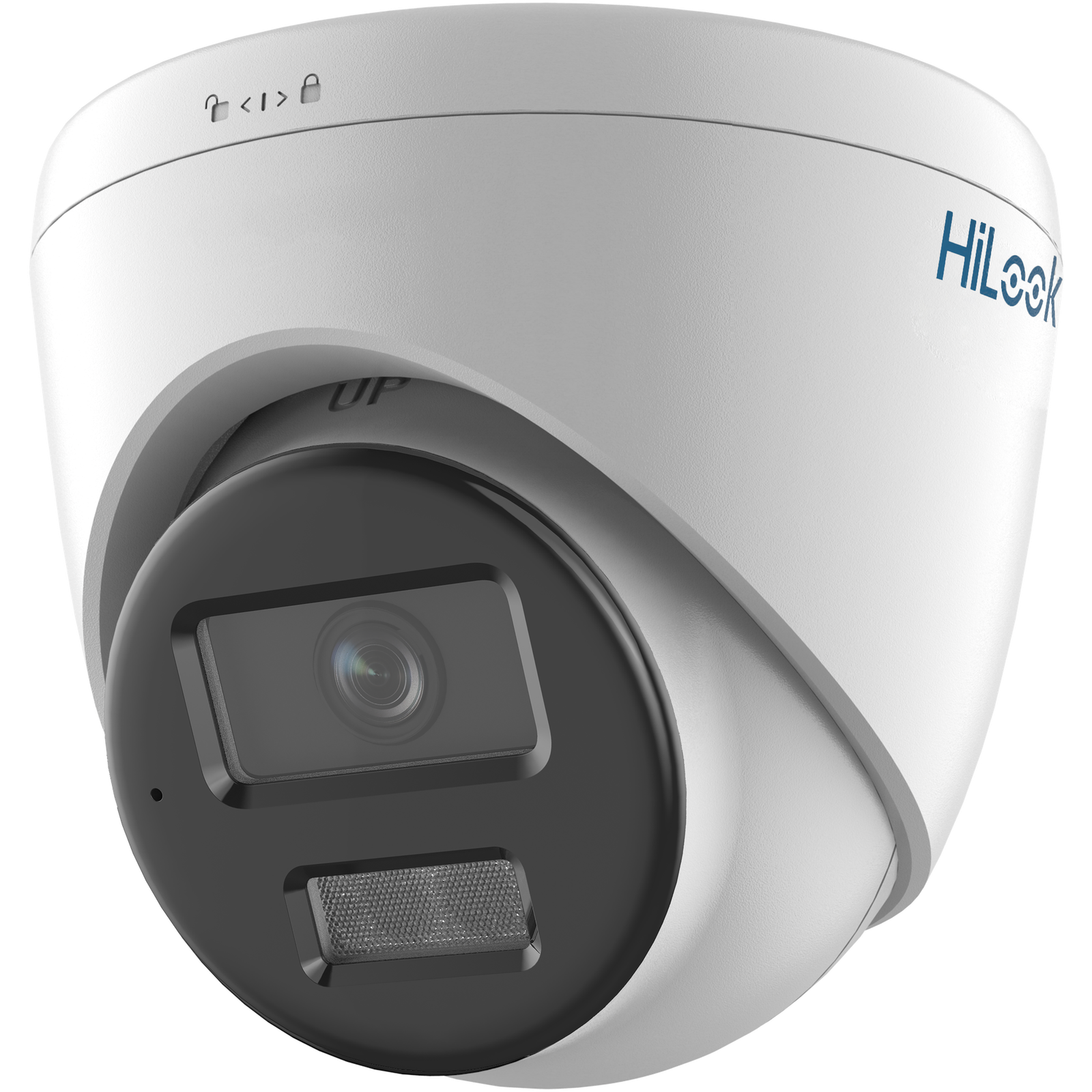

HiLook turret kamera IPC-T249HAA-LUF/SL F2.8 (4 MP, 2.8mm, 30m IR/LED, ColorVu)

7,41€ / 18 mėn.

108,08€(Kaina be PVM)130,78€(Kaina su PVM) su PVM

Raiška: 4 MP
Funkcijos: ColorVu 3.0, HikAI-ISP, Motion Detection 3.0 (žmonių ir transporto priemonių aptikimas)
Integruotas mikrofonas
Integruotas microSD lizdas: iki 512 GB
Apsaugos klasės: IP67

Turime

Gamintojas: Hilook SKU: TVKIPCT249HAALUFSL

Patvirtinimai
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7
AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013
SaugumasCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017

Garsas
Garso bitų dažnis64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps(MP3)
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Garso atrankos dažnis8 kHz/16 kHz
Garso tipasMono sound
Pašalinių garsų šalinimasYes

DORI
DORI2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
SąsajaUpload to FTP,notify surveillance center,send email,trigger recording,trigger capture

Bendra informacija
MatmenysØ112 mm × 82 mm (Ø4.4″ × 3.2″)
Flashing Light-LU：NA-LUF/SL：White Light-LUF/SRB：Red and Blue Light
Pagrindinės funkcijosHeartbeat,mirror,flash log,password reset via email,password protection,anti-banding
KalbaEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
MedžiagaCover: Plastic, main body: Metal
Pakuotės dydis150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″)
Maitinimas-LU: 12 VDC ± 25%, 0.52 A, max. 6.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W, -LUF/S(L)(RB): 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.8 W
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Svoris-LU: Approx. 350 g (0.8 lb.)-LUF/S(L)(RB): 400 g (0.9 lb.)
Svoris su įpakavimu -LU: Approx. 530 g (1.2 lb.) -LUF/S(L)(RB): 595 g (1.3 lb.)

Nuotrauka
Dienos/nakties perjungiklisDay,Night,Auto,Schedule
Nuotraukų pagražinimasBLC,HLC,3D DNR
Vaizdo nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privatumo kaukė4 programmable rectangular privacy masks
SNR≥ 52 dB
Wide Dynamic Range (WDR)120 dB

Sąsaja
Integruotas mikrofonasYes,1 built-in microphone
Integruotas garsiakalbis-LU: NA-LUF/S(L)(RB): Max. power consumption: 2 W, max. sound pressure level: 10 cm: 101 dB
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis-LU：NA-LUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perkrovimo mygtukas-LU：NA -LUF/S(L)(RB)：YES

Objektyvas
DiafragmaF1.0
Ryškumo gylis2.8 mm: 1.7 m to ∞4 mm: 1.6 m to ∞
Focal Length & FOV2.8 mm, horizontal FOV 101.5°, vertical FOV 54.6°, diagonal FOV 122.1°4 mm, horizontal FOV 84.1°, vertical FOV 45.6°, diagonal FOV 99.1°
Rainelės tipasFixed
Objektyvo tvirtinimasM12
Objektyvo tipasFixed focal lens, 2.8 and 4 mm optional

Tinklas
APIONVIF (Profile S, Profile G), ISAPI, SDK
KlientasiVMS-4200,HiLookVision
ProtokolaiTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
SaugaPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
NaršyklėPlug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Vaizdas
Bitų dažnio valdymasCBR,VBR
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Pagrindinis srautas50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Antrinis srautas50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Vaizdo bitų dažnis32 Kbps to 16 Mbps
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

Gamintojas	Hilook
