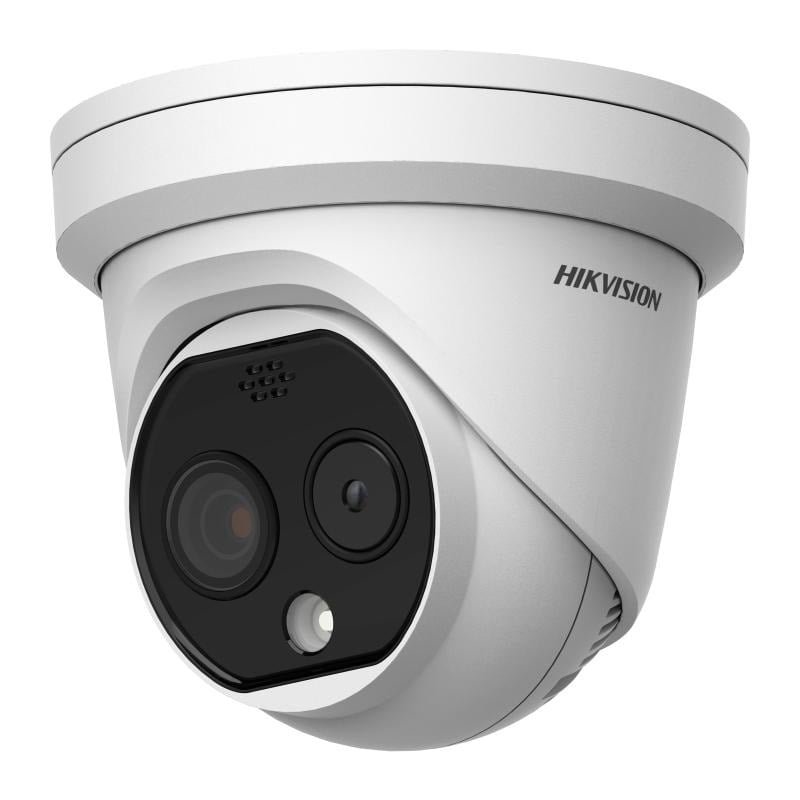

Hikvision termovizorinis ir optinis dome DS-2TD1217-2/QA

25,04€ / 60 mėn.

756,61€(Kaina be PVM)915,50€(Kaina su PVM)

Raiška: 160 × 120, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
Temperatūros aliarmo tikslumas: nuo -20 °C iki 150 °C, ±8 °C
Vaizdo apdorojimas: tiesinė, histogramos, savireguliuojama AGC, DDE, 3D DNR
Rūkymo aptikimo algoritmas
Atspindžių nuo saulės filtras

Neturime

Gamintojas: Hikvision SKU: KIPDS2TD12172QA

Garso signalizacija	Yes, for two types of audible alarm (VCA, Temperature)2 preset voice alerts (one for each)6 importable user-defined voice alerts (4 options shared in the two types)
Vaizdinė signalizacija	Yes. White light alarm with adjustable flashing frequencies
Baltos šviesos diapazonas	Up to 30 m

VCA Range for Humans	10 m
VCA Range for Vehicles	30 m

Matmenys	138.3 mm × 138.3 mm × 123.1 mm (5.45″ × 5.45″ × 4.85 „)
Energijos suvartojimas	12 VDC ± 25%: 0.5 A, Max 6 WPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
Maitinimo šaltinis	12 VDC ± 25%, φ 5.5 mm coaxial power plugPoE (802.3af, class 3)
Apsaugos lygis	IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection
Tinklo naršyklės kalba	32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Svoris	940 g (2.07 lb)
Darbinė temperatūra / drėgmė	Temperature: – 40 °C to 65 °C (- 40 °F to 149 °F) Humidity: 95% or less

IR distancija	Up to 15 m
IR intensyvumas ir kampas	Automatically adjusted

Tikslinė spalva

Yes. Supported in white hot and black hot mode.

Alarm Action	SD recording/Relay output/Smart capture/FTP upload/Email linkage
Signalizacijos įvestis	1, alarm input (0-5 VDC)
Signalizacijos išvestis	1, alarm output (alarm response actions configurable)
Garso įvestis	1, 3.5 mm Mic in/Line in interfaceLine input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Garso išvestis	Linear level, impedance: 600 Ω
Bendravimo sąsaja	1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)

API	ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T)
Klientas	iVMS-4200, Hik-Connect
Vidinė atmintis	MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Protokolai	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TLS
Saugumas	User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Tiesioginis vaizdo žiūrėjimas	Up to 20 channels
User/Host level	Up to 32 users, 3 levels: Administrator, Operator, User
Naršyklė	Live view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +Local service : Chrome 57.0 +, Firefox 52.0 +

Pagrindinės funkcijos	Fire detection, smoking detection, sun-reflection filter,
Temperatūros tikslumas	± 8 °C (± 14.4 °F)
Temperatūros matavimas	3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperatūros diapazonas	– 20 °C to 150 °C (- 4 °F to 302 °F)
VCA	4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Diafragma	F1.1
Skaitmeninis priartinimas	× 2, × 4
Matymo laukas	90.0° × 66.4° (H × V)
Židinio nuotolis	1.8 mm
IFOV	9.44 mrad
Vaizdo jutiklis	Vanadium Oxide Uncooled Focal Plane Arrays
Minimali fokusavimo distancija	0.1 m
NETD	< 40 mK (@ 25 °C, F# = 1.1)
Taškinis žingsnis	17 μm
Raiška	160 × 120
Spektrinis diapazonas	8 μm to 14 μm

Garso glaudinimas	G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Pagrindinis srautas	Thermal:25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas	Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
Vaizdo glaudinimas	Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG

Svoris	0,94 kg
Gamintojas	Hikvision
