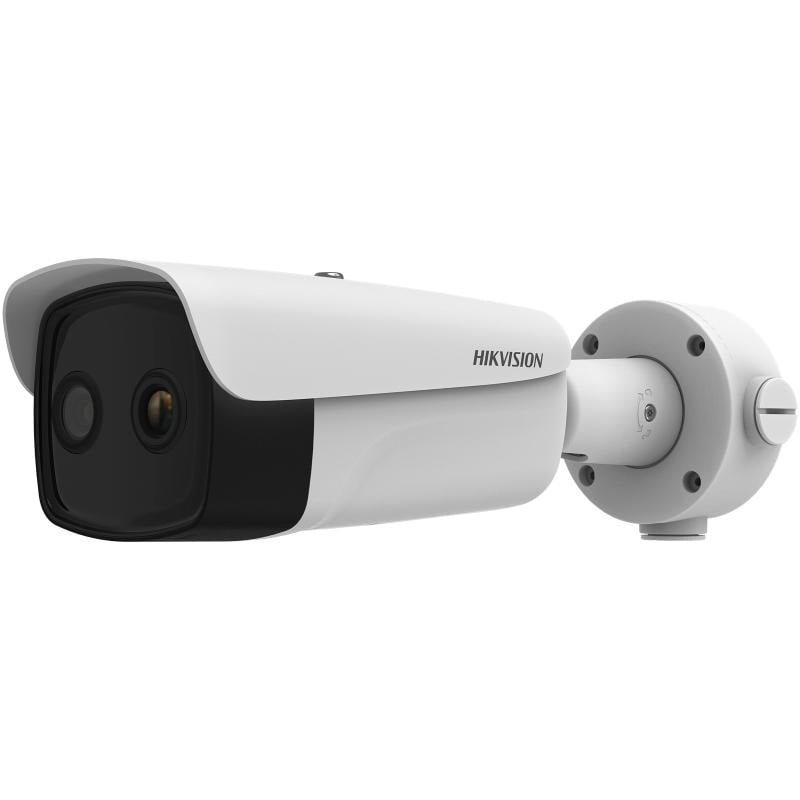

Hikvision termovizorinis ir optinis bullet DS-2TD2637T-10/QY

Name: Hikvision termovizorinis ir optinis bullet DS-2TD2637T-10/QY
SKU: KIPDS2TD2637T10QY
Availability: OutOfStock

95,55€ / 60 mėn.

2.876,00€(Kaina be PVM)3.479,96€(Kaina su PVM) su PVM

Neturime

Gamintojas: Hikvision SKU: KIPDS2TD2637T10QY

Patvirtinimai
Apsauga nuo korozijosNEMA 4X (NEMA 250-2018)
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)KC (KSC9832: 2019; KSC9835: 2019)FCC (ANSI C63.4;FCC Part15 sub B)
AplinkosaugaCE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013IK10: IEC 62262-2002
SaugumasCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017;UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)

Bendra informacija
Matmenys376.1 mm × 119.1 mm × 118.1 mm (14.81″ × 4.68″ × 4.65″)
Kalbos32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Energijos suvartojimas 24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W 12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W24VDC: 0.4A, max 9.5WPoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W
Maitinimo šaltinis24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal blockPoE (802.3af, class 3)
Apsaugos lygisIP67 Standard IK10-rated housingTVS 4000V lightning protection, surge protection, voltage transient protectionNEMA 4X anti-corrosion housing
Svoris1.82 kg (4.01 lb)
Darbinė temperatūra / drėgmė Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less

Vaizdo efektas
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Tikslinė spalvaYes. Supported in white hot and black hot mode.

Sąsaja
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Signalizacijos įvestis2, alarm input (0-5 VDC)
Signalizacijos išvestis2, alarm output (alarm response actions configurable)
Analoginė išvestis 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Garso įvestis1, 3.5 mm Mic in/Line in interfaceLine input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Garso išvestis Linear level, impedance: 600 Ω
Bendravimo sąsaja1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)

Tinklas
APIISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T), OTAP
Klientas iVMS-4200, Hik-Connect
Vidinė atmintisMicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Protokolai IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
SaugaUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User

Optinis modulis
Day & Night ModeIR Cut Filter with Auto Switch
Matymo laukas84° × 44.8° (H × V)
Židinio nuotolis4 mm
Vaizdo jutiklis1/2.7″ Progressive Scan CMOS
Minimalus apšvietimas0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Rezoliucija 2688 × 1520
Užrakto greitis1 s to 1/100,000 s
WDR120 dB
Baltos spalvos balansasMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light

Išmanioji funkcija
Fire DetectionDynamic fire detection, up to 10 fire points detectable
Smoke DetectionSupport smoke detection on optical channel
Smoking DetectionUp to 10 smoking points detected
Temperatūros tikslumasMax (± 2 °C, ±2 %)
Temperatūros matavimas3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperatūros diapazonas– 20 °C to 550 °C (- 4 °F to 1022 °F)
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Vaizdas ir garsas
Garso glaudinimasG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Pagrindinis srautas Optical channel50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel25 fps (1280×720P， 704×576， 352×288， 384×288)
Antrinis srautas Optical channel50 HZ: 25 fps (704 × 576, 352 × 288) 60 HZ: 30 fps (704 × 480, 352 × 240) Thermal channel25 fps (704 × 576, 352 × 288, 384 × 288)
Vaizdo glaudinimas Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG

Video and Image
Spalvų paletės17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)

Gamintojas	Hikvision
