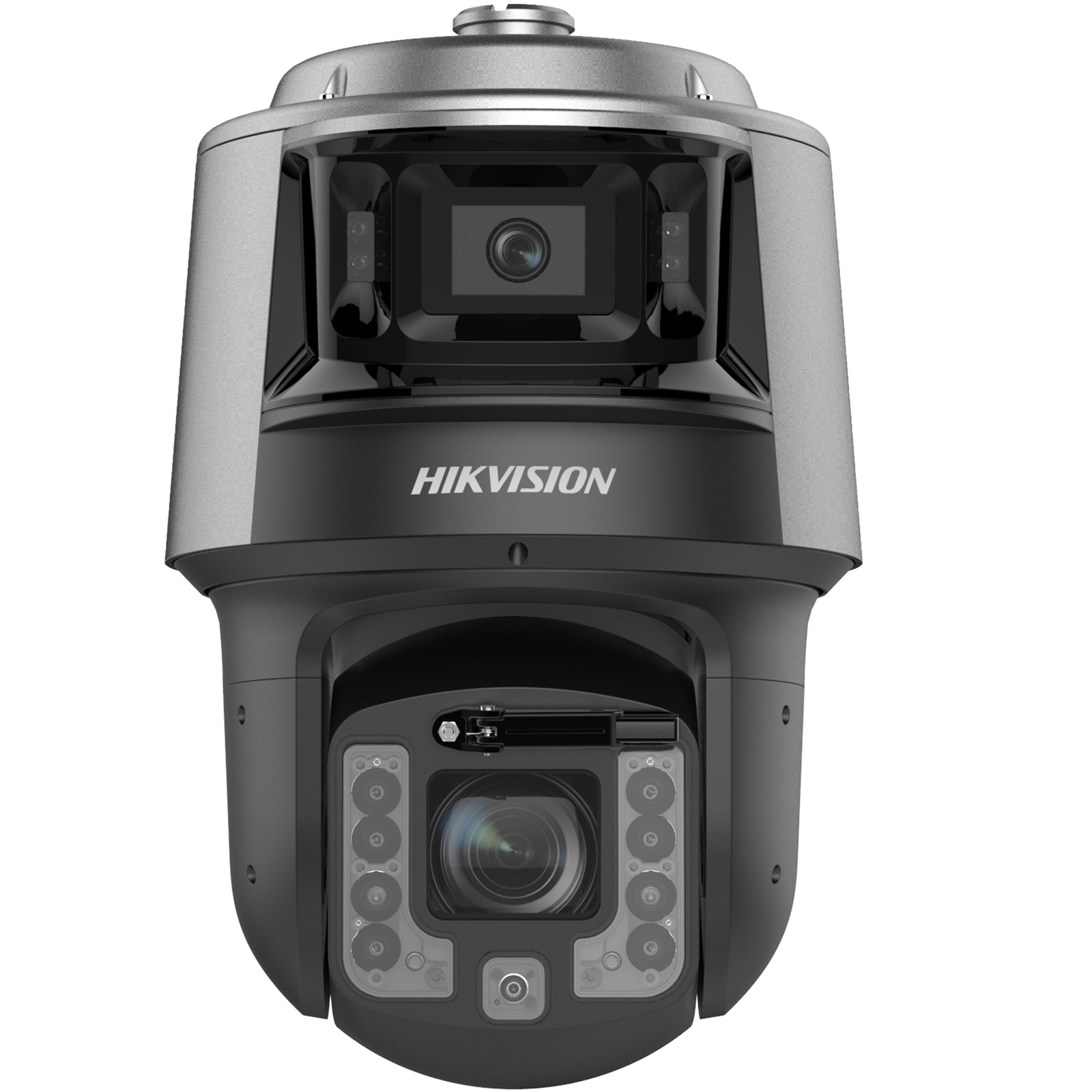

Hikvision TandemVu PTZ kamera DS-2SF8C425MXG1-ELW/26(F0)
92,57€ / 60 mėn.
2.788,68€(Kaina be PVM)3.374,30€(Kaina su PVM) su PVM
- Skirtas didelio masto DI modelis perimetro apsaugai
- Fiksuoja didelę teritoriją ir detales vienu metu
- Raiška: 4 MP
- 24/7 spalvotas vaizdas ir puikus veikimas esant silpnam apšvietimui su DarkFighter 2.0 technologija
- Pasvirimo kampas: 7°–17°
- Priartinimas: x25 optinis, x16 skaitmeninis
- Pašvietimas: iki 80 m (hibridinis), IR 400 m
- Palaiko giliojo mokymosi funkcijas
- Apsaugos klasės: IP67, IK10
- Išmanus Pan-Tilt koregavimas
Neturime
- AI Open Platform
- Event TypeRegion target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule
- Model SpecificationModel type for AI Open Platform trained algorithm loading: high-performance model (small model), enhanced high-performance model (hybrid small-large model), and ultra-high-precision model (large model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 1 target. The device runs up to 2 small models or 1 large model at the same time.
- Rule SettingUp to 16 rules. Supports moving target filtering and shield region setting.
- Task TypeAlgorithm type for AI Open Platform high-performance model (small model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR, Segmentation, Image Comparison. Supports simultaneous independent operation of 2 models. Supports video analysis and image analysis.Algorithm type for AI Open Platform enhanced high-performance model (hybrid small-large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications). Supports video real-time analysis.Algorithm type for AI Open Platform ultra-high-precision model (large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR. Supports image scheduled analysis and I/O-triggered analysis.Supports algorithm orchestration for comparison. Supports importing user-defined orchestration packages (3 operator nodes, 5 logic nodes) for scenario-based application deployment.
- Patvirtinimai
- Apsauga nuo korozijosModel with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No
- EMCCE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
- AplinkosaugaCE-RoHS (2011/65/EU and its amendment (EU)2015/863)
- ApsaugaIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
- Saugumas CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
- Garsas
- Garso bitų dažnis64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
- Garso glaudinimasG.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
- Garso atrankos dažnis8 kHz,16 kHz,32 kHz,48 kHz
- Pašalinių garsų šalinimasYes
- Kamera
- Diena&Naktis[Bullet channel] Color, [PTZ channel] IR cut filter
- Vaizdo jutiklis[Panoramic channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
- Didžiausia raiška[Bullet channel] 2688 × 1520, [PTZ channel] 2688 × 1520
- Minimalus apšvietimas[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR,[PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
- Užrakto greitis1/25 s to 1/30000 s
- Lėtas užraktasYes
- Priartinimas[PTZ channel] 25 × optical, 16 × digital
- Išmaniosios funkcijos
- Veido atpažinimasDetects up to 30 faces simultaneously,Uploads face with background and closed-up face pictures
- Face ComparisonUp to 10 face libraries. 30000 faces for each library. 150000 faces in total,Recognizes face identity via face modeling, grading and comparing to those in face library
- Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle
- People DensitySupports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes
- Kelių eismo ir transporto priemonių aptikimasSmart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate ≥98%Capture rate ≥99%Driving direction accuracy rate ≥98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
- Funkcijos
- Pagrindinės funkcijos[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
- Sąsaja[Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
- Išmaniosios funkcijosunattended baggage detection,object removal detection
- Bendra informacija
- Rasos šalinimasYes
- MatmenysØ260 mm × 382.9 mm (Ø10.24″ × 15.07″)
- Pagrindinės funkcijosmirror,password protection
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- MedžiagaADC12
- Darbo sąlygos-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
- Maitinimas36 VDC± 25%, max. 90 W (Max. 65 W, including max. 15 W for IR and max. 8 W for heater),PoE 802.3bt, type4, class8, max. 90W (Max. 65W, including max. 15W for IR and max. 8 W for heater)
- SvorisApprox. 7.8 kg (17.196 lb.)
- WiperYes
- Apšvietimas
- Išmanus papildomas apšvietimasYes
- Papildomo apšvietimo diapazonas[Bullet channel] White Light: up to 40 m, IR: up to 80 m[PTZ channel] IR: up to 400 m
- Papildomo apšviešimo tipas[Bullet channel] White Light and IR, [PTZ channel] IR
- Nuotrauka
- Dienos/nakties perjungiklisschedule,Day,auto,night
- Rūko šalinimasDigital defog
- Nuotraukų pagražinimas3D DNR,HLC,BLC,EIS
- Nuotraukos parametrų keitiklisYes
- Vaizdo nustatymaiSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Vaizdo stabilizavimasEIS (Built-in gyroscope to improve EIS performance)
- Privatumo kaukė[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- Regioninė ekspozicijaYes
- Regioninis fokusavimas[Bullet channel] No, [PTZ channel] Yes
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)[Bullet channel] 120 dB, [PTZ channel] 150 dB
- Sąsaja
- Signalizacija7 input(s), 2 output(s)
- Garsas1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
- Interneto sąsaja1 RJ45 100M self-adaptive Ethernet port
- Saugyklos vietaBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- PerkrovimasYes
- Large Models
- Perimetro apsaugaLine crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggeringDedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI camerasVCA range: [Bullet channel] up to 60m(nighttime)/100m(daytime), [PTZ channel] Wide: up to 70m(nighttime)/100m(daytime), Tele: up to 400m*Result based on standard setup and test environment
- Scenario-Aware Object DetectionThis function is based on the large model technology combined with image classification detection. It can automatically detect and identify scene categories in the detection area, including road, intersection, toll station, petrol station, open-air square, vehicle entrance and exit, and person entrance and exit, etc. The PTZ camera will rotate 360° to capture and label the scenes.For automatically recognize the scene information of captured image.- Real-time detection mode: the PTZ camera completes the full-scene capture, detection, and recognition output within 10 minutes in 360°.- Scheduled detection mode: the scheduled time can be set, and pictures can be collected every day or week. The collected pictures will be stored in eMMC, and the detection results will be output at 2 AM by default.The detection results and labels can be uploaded as alarms, and the alarm should include the camera IP address, port No., channel No., capture time, upload time, picture, PTZ coordinates, label ID, label name, and OCR information, as well as the coordinates of each OCR.
- Objektyvas
- Diafragma[Bullet channel] F1.0, [PTZ channel] F1.5
- FOV[Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
- Židinio nuotolis[Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
- FokusavimasAuto,semi-auto,manual
- Priartinimo greitis[Bullet channel] No, [PTZ channel] approx. 4.8 s
- Linkage and Tracking
- Object TrackingSupport person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
- Išmani jungtisManual tracking, auto tracking, tracking takeover, linked tracking capture
- Išmanus sekimasManual tracking, auto-tracking 3.0
- Tinklas
- APIISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
- KlientasiVMS-4200,HikCentral Pro,Hik-Connect
- Vidinė atmintisNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
- ProtokolaiIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
- SaugaPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
- Tiesioginis vaizdo žiūrėjimasUp to 20 channels
- Naudotojas/prievadasUp to 32 users. 3 user levels: administrator, operator, and user
- NaršyklėPlug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+；Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- PTZ
- 3D pozicijaYes
- Movement Range (Pan) [PTZ channel] 0° to 360°
- Movement Range (Tilt)[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
- PTZ būsenos vaizdavimasYes
- Pan greitis[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
- Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
- Patruliavimas8 patrols, up to 32 presets for each patrol
- Išsaugotų rėžimų skenavimas4 pattern scans, record time over 10 minutes for each scan
- Išjungimo atmintisYes
- Išsaugotų nustatymų sustabdymasYes
- Iš anksto išsaugoti nustatymai300
- Proporcingas Pan[Bullet channel] No, [PTZ channel] Yes
- Užduočių grafikasPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
- Tilt greitis[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Supplement Detection
- CompassNo
- GyroscopeYes
- Satellite PositioningNo
- Vaizdas
- H.264 tipasBaseline profile,Main profile,High profile
- H.265 tipasMain profile
- Pagrindinis srautas[Bullet channel] 50 Hz: 25 fps (2688*1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720), 60 Hz: 25 fps (2688*1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720),[PTZ channel] 50 Hz: 30 fps (2688*1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720), 60 Hz: 30 fps (2688*1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720)
- Region of Interest (ROI)8 fixed regions for each stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Antrinis srautas[Bullet channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 25 fps (704 × 576，640 × 480，352 × 288),[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 576，640 × 480，352 × 288)
- Trečias srautas[Bullet channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Vaizdo bitų dažnis32 Kbps to 16 Mbps
- Vaizdo glaudinimasMain stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG
