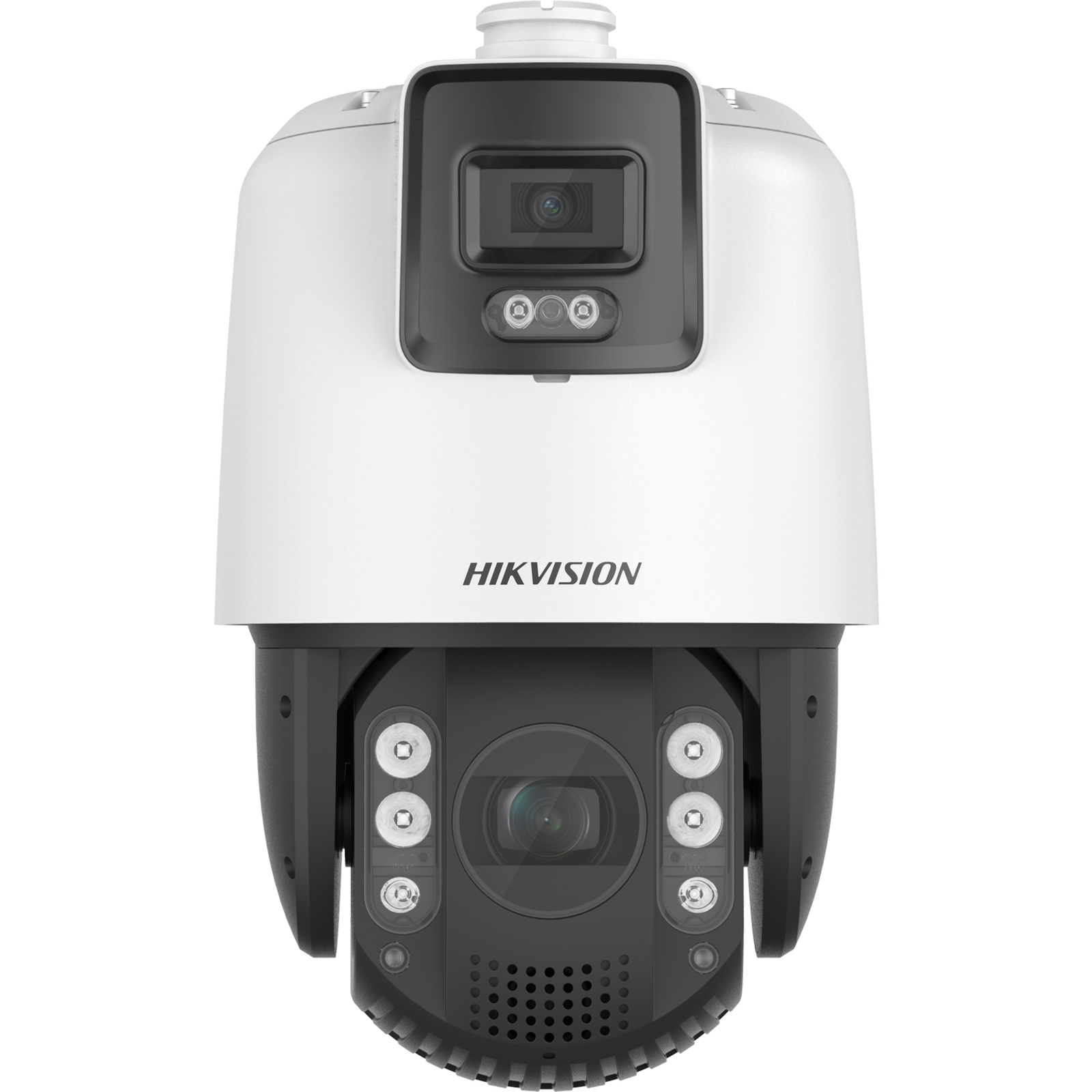

Hikvision TandemVu PTZ DS-2SE7C144IW-AE(32X/4)(S5)
Preliminari mėnesinė įmoka nuo 52,89€ / 60 mėn.
1.597,21€(Kaina be PVM)1.932,62€(Kaina su PVM)
| 4MP kamera | |
| DarkFighter technologija | |
| 32x optinis priartinimas, 16x skaitmeninis priartinimas | |
| Palaiko WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus | |
| 200 m IR pašvietimo distancija | |
| Palaiko 24 VAC & Hi-PoE |
Liko tik 1
Kamera
| Sensorius | [panoramic channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS |
| Min. apšvietimas | [panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Užrakto greitis | 1 s to 1/30,000 s |
| Lėtas užraktas | yes |
| Fokusavimas | semi-auto;manual;auto |
| Day & Night | ICR |
| Diena/Naktis režimas | day, night, auto, scheduled-switch |
| BLC | yes |
| WDR | 120 dB WDR |
| HLC | yes |
| 3D DNR | yes |
| Rūko šalinimas | yes |
| EIS | yes |
| Regioninė ekspozicija | yes |
| Regioninis fokusavimas | yes |
| Nuotraukos nustatymai | saturation;brightness;contrast;sharpness |
| Nuotraukos parametrų keitiklis | [panoramic channel]: yes; [PTZ channel]: yes |
| Baltos spalvos balansas | MWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB |
| Skaitmeninis priartinimas | 16x |
| Optinis priartinimas | 32x |
| Privatumo kaukė | mosaic mask ;mask color configurable;polygon region ;[panoramic channel] 8 masks, [PTZ channel] 24 masks |
| SNR | ＞52dB |
| Pagrindinės funkcijos | mirror, password protection, watermark, IP address filter |
Lęšis
| FOV | [panoramic channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical |
| Priartinimo greitis | [PTZ channel]: approx. 5.6 s |
| FOV | [panoramic channel]: Horizontal field of view: 79°, Vertical field of view: 42.4°; [PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele) |
| Diafragama | [panoramic channel]: F1.6; [PTZ channel]: F1.5 |
Apšvietimas
| IR distancija | [PTZ channel]: up to 200 m; [panoramic channel]: up to 30 m |
| Vaizdinė signalizacija | 30 m |
PTZ
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan greitis | pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt greitis | tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proporcingas priartinimas | yes |
| Iš anksto išsaugoti nustatymai | 300 |
| Patruliavimas | 8 patrols, up to 32 presets for each patrol |
| Išsaugotų rėžimų skenavimas | 4 pattern scans |
| Išjungimo atmintis | yes |
| Park Action | preset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan |
| 3D pozicija | yes |
| PTZ būsenos vaizdavimas | yes |
| Išsaugotų nustatymų sustabdymas | yes |
| Užduočių grafikas | preset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output;关闭 |
| Išimčių aptikimas | IP address conflict, HDD full, illegal login, HDD error, network disconnected |
Vaizdas
| Maks. rezoliucija | [panoramic channel]: 2560 × 1440; [PTZ channel]: 2560 × 1440 |
| Srauto tipas | main stream;sub-stream;third stream |
| Pagrindinis srautas | [panoramic channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Antrinis srautas | [panoramic channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Trečias srautas | [panoramic channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Vaizdo suspaudimas | H.265;H.264;MJPEG |
| Vaizdo bitų greitis | 32 kbps to 16384 kbps |
| H.264 tipas | baseline profile;main profile;high profile |
| H.265 tipas | main profile |
| H.264+ | yes |
| H.265+ | yes |
| SVC | yes |
| ROI | 主码流、子码流、第三码流支持8块ROI区域;main stream, sub-stream and third stream respectively support eight fixed areas;dynamic target tracking |
Garsas
| Garso suspaudimas | G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM;AAC |
| Audio Bit rate | MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps |
| Garso atrankos dažnis | MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Pašalinių garsų šalinimas | yes |
Išmaniosios funckcijos
| Veido atpažinimas | Support detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face |
| Pagrindinės funkcijos | motion detection;alarm input;alarm output;video tampering alarm;exception |
| Išmaniosios funkcijos | intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection |
| Išmanus sekimas | manual tracking;event tracking;panorama tracking;auto-tracking;tracking takeover |
| Išmanus įrašymas | ANR;Dual-VCA |
| Signalizacijos sąsaja | smart tracking;preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;audible warning;white light flashing |
| Įspėjimai ir signalizacija | white light and audible warning |
Internetas
| Vidinė atmintis | NAS (NFS, SMB/ CIFS); ANR;ANR |
| Protokolai | IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour |
| API | Open-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP |
| Tiesioginis vaizdo žiūrėjimas | 20 |
| User/Host | 32 |
| Saugumo sprendimai | Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter |
| Klientas | iVMS-4200;Hik-Connect |
| Naršyklė | IE 10+, Chrome 57+, Firefox 52+, Safari 12+ |
Sąsaja
| Bendravimo sąsaja | RJ45, self-adaptive 10M/100M Ethernet port |
| Saugyklos vieta | Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB |
| Signalizacijos įvestis | 2 alarm inputs |
| Signalizacijos išvestis | 1 alarm output |
| Garso įvestis | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% |
| Garso išvestis | 1 audio output, line level, impedance: 600 Ω |
Pagrindinis
| Sistemos parametrai | 24 VAC, Hi-PoE |
| Energijos sunaudojimas ir stipris | Max. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light |
| Darbo sąlygos | -30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH |
| Perkrovimas | yes |
| Rasos šalinimas | Demist by heating the glass |
| Medžiaga | ADC12 |
| Dydis | Ø220 mm × 382.1 mm (Ø 8.7″ × 15.0″) |
| Svoris | Approx. 6 kg (13.23 lb.) |
Patvirtinimai
| Apsauga | IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Svoris | 7,4 kg |
|---|---|
| Gamintojas |
