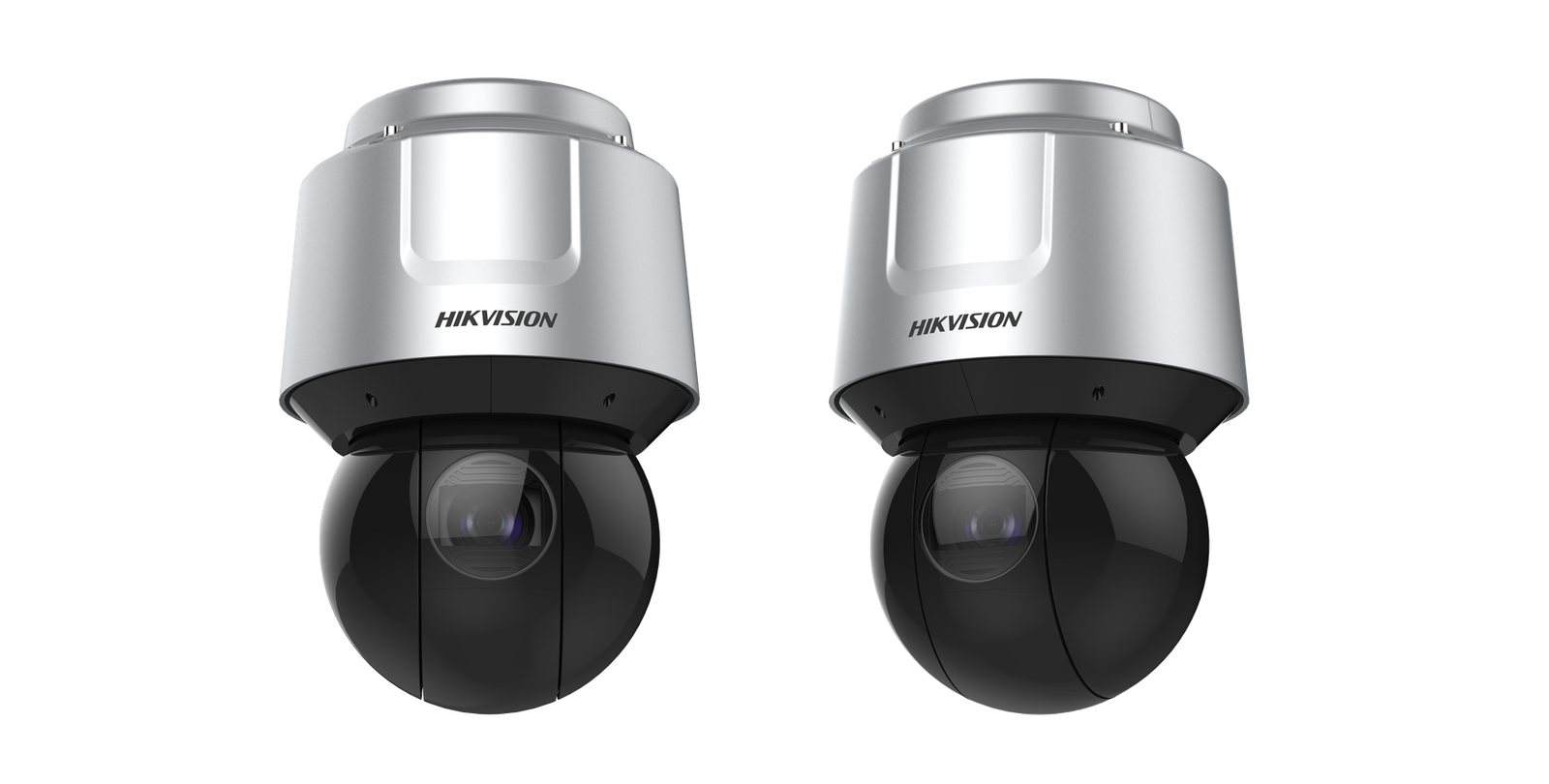

Hikvision PTZ DS-2DF8A442IXS-AEL(T5)
Preliminari mėnesinė įmoka nuo 98,37€ / 60 mėn.
2.963,07€(Kaina be PVM)3.585,31€(Kaina su PVM)
| 4 MB aukštos kokybės vaizdo kamera | |
| 1/1.8″ Progressive Scan sensorius | |
| DarkFighter technologija, dėl kurios kameros itin puikus veikimas prastame apšvietime | |
| 42× optinis priartinimas ir 16× skaitmeninis priatinimas | |
| Iki 500m IR nuotolio | |
| Funkcija: Automatinis sekimas 3.0 | |
| Palaiko veidų fiksavimą | |
| IP67, IK10 |
Neturime
Kamera
| Sensorius | 1/1.8″ progressive scan CMOS |
| Min. apšvietimas | Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2，AGC ON), 0 Lux with IR |
| Užrakto greitis | 1/1 s to 1/30,000 s |
| Lėtas užraktas | Yes |
| Diena & Naktis | IR cut filter |
| Artinimas | 42x optical, 16x digital |
| DORI | Detect (25 px/m): 2965.5 m Observe (63 px/m): 1176.8 m Recognize (125 px/m): 604.1 m Identify (250 px/m): 302.1 m |
| Maks. rezoliucija | 2560 × 1440 |
Lęšiai
| Fokusavimas | Auto, semi-auto, manual, rapid focus |
| Fokusavimo ilgis | 6.0 mm to 252 mm |
| Artinimo greitis | Approx. 4.5 s |
| FOV | Horizontal field of view: 56.6° to 1.7° (wide-tele), Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.9° (wide-tele) |
| Diafragma | Max. F1.2 |
Apšvietimas
| Papildomo apšvietimo tipas | IR |
| Papildomos šviesos diapazonas | 500 m |
| Išmanus papildomas apšvietimas | Yes |
PTZ
| Judesio kampas (Pan) | 360° |
| Judesio kampas (Tilt) | -20° to 90° (auto flip) |
| Pan judėjimo greitis | Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s |
| Tilt judėjimo greitis | Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s |
| Proporcingas priartinimas | Yes |
| Išankstinės veikimo zonos | 300 |
| Patruliavimo rėžimas | 8 patrols, up to 32 presets for each patrol |
| Išankstinių veikimo zonų skenavimas | 4 pattern scans, record time over 10 minutes for each scan |
| Išjungimo atmintis | Yes |
| Funkcijos | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Pozicija | Yes |
| PTZ Status Display | Yes |
| Iš anksto nustatytų zonų užšaldymas | Yes |
| Numatomos užduotys | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Antrinis srautas | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Trečiasis srautas | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Vaizdo suspaudimas | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Vaizdo bitų greitis | 32 Kbps to 16384 Kbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| SVC | H.264 and H.265 encoding |
| ROI | 8 fixed regions for each stream |
Garsas
| Garso suspaudimas | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio bitų greitis | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
Tinklas
| Tinklo saugykla | NAS (NFS, SMB/ CIFS), ANR |
| Protokolai | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API | ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T) |
| Tiesioginio vaizdo žiūrėjimas | Up to 20 channels |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Apsauga | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
| Klientas | HikCentral, iVMS-4200, Hik-Connect |
| Interneto naršyklės | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
Nuotrauka
| Nuotraukos nustatymai | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Diena/Naktis | Day, night, auto, scheduled-switch |
| Nuotraukos pagražinimai | BLC, HLC, 3D DNR |
| WDR | 140 dB WDR |
| Rūko pašalinimas | Optical defog |
| Vaizdo stabilizavimas | Yes. Built-in gyroscope to improve EIS performance. |
| Regioninis šviesos koregavimas | Yes |
| Regioninis fokusavimas | Yes |
| Privatumo kaukė | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| SNR | ≥ 52 dB |
Sąsaja
| Ryšio sąsaja | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB |
| Signalizacija | 7 inputs, 2 outputs |
| Garsas | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Vaizdo išvestis | 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
Įvykiai
| Paprastos funkcijos | Motion detection, video tampering alarm, alarm input and output, exception |
| Išmaniosios funkcijos | Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, vandal-proof alarm, audio exception detection |
| Išmanusis sekimas | Manual tracking, auto-tracking |
| Susiejimas su signalizacija | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
Išmaniosios funkcijos
| Veido atpažinimas | Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face |
| Veidų palyginimo sistema | Yes |
| Perimetro apsauga | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
Pagrindinis
| Bendrosios funkcijos | Mirror, password protection, watermark, IP address filter |
| Maitinimas | 24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater) |
| Darbo sąlygos | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
| Dydis | ⌀ 267 mm × 405 mm (⌀ 10.51″ × 15.94″) (Approx. 8.5 kg (18.74 lb.) |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Patvirtinimai
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) |
| Saugumo | UL (UL 62368-1) CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) |
| Aplinkosaugos | ICE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Apsaugos | IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10 |
| Svoris | 11,19 kg |
|---|---|
