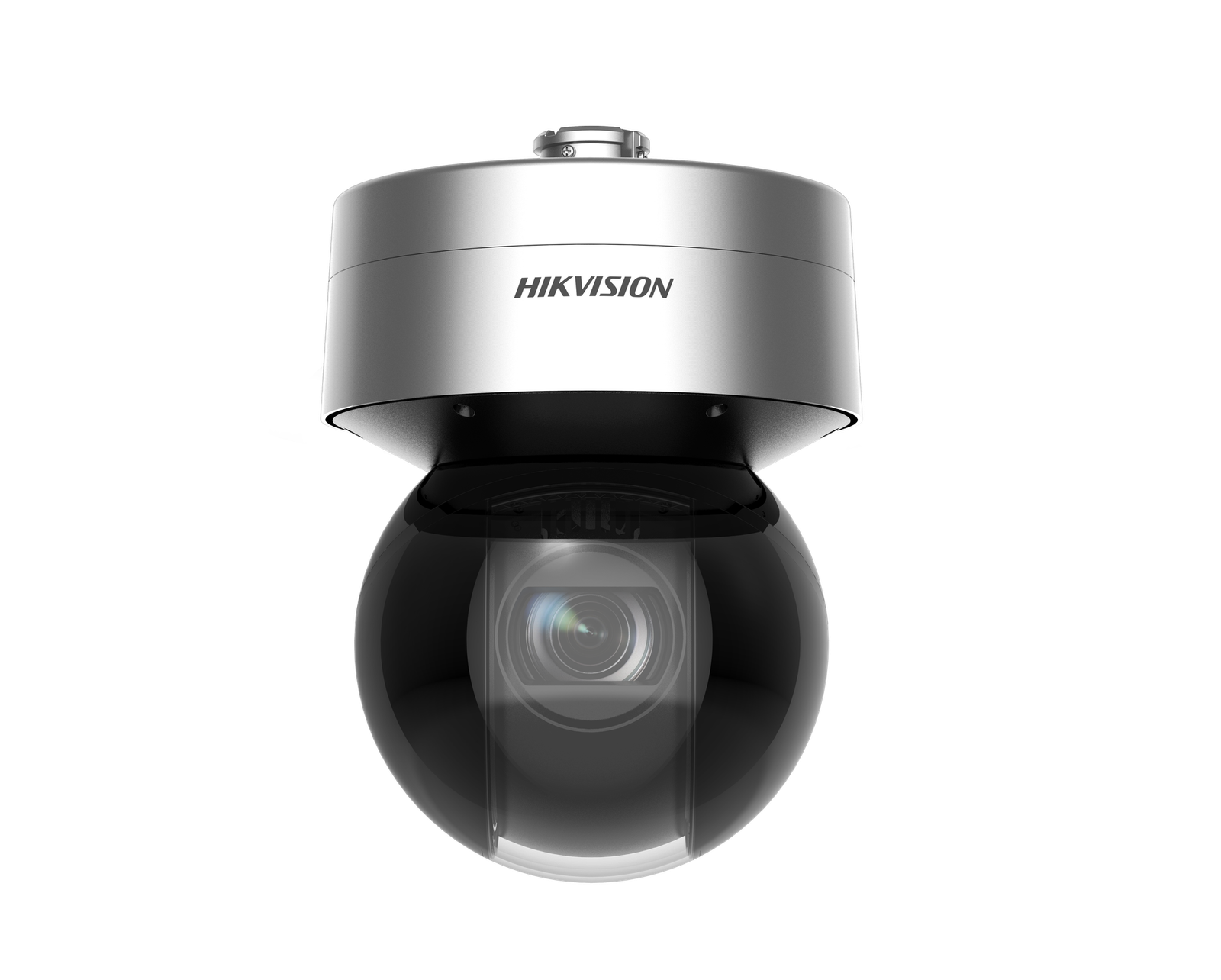

Hikvision PTZ DS-2DF7A436IXG-ELY
Preliminari mėnesinė įmoka nuo 85,64€ / 60 mėn.
2.579,88€(Kaina be PVM)3.121,65€(Kaina su PVM)
| Tipas: IP kamera | |
| Modelis: DS-2DF7A436IXG-ELY | |
| Korpusas: Speed Dome | |
| Technologija: DarkFighter 2.0 | |
| WDR: 140 dB AWDR | |
| Raiška: 4MP (2688 × 1520) | |
| Matymo laukas (FOV): 59.1° – 2° | |
| Priartinimas: 36x optinis zoom | |
| IR pašvietimas: Iki 300m | |
| Atsparumo klasė: IP67, IK10 |
Neturime
Kamera
| Sensorius | 1/1.8＂ progressive scan CMOS |
| Maks. rezoliucija | 2688 × 1520 |
| Min. apšvietimas | Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with IR |
| Užrakto greitis | 1/30 s to 1/30,000 s |
| Diena&Naktis | ICR |
| Priartinimas | 36 × optical,16 × digital |
| Lėtas užraktas | yes |
Lęšis
| Židinio nuotolis | 6.0 mm to 216 mm |
| FOV | Horizontal field of view: 59.1° to 2°, vertical field of view: 34.1° to 1.1°, diagonal field of view: 67.1° to 2.3° |
| Fokusavimas | Auto,semi-auto,manual,rapid focus |
| Diafragma | F1.2 |
| Priartinimo greitis | Approx. 4.5 s |
Apšvietimas
| Papildomo apšvietimo diapazonas | IR distance: up to 300 m |
PTZ
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -20° to 90° (auto flip) |
| Pan greitis | Pan speed: configurable from 0.1° to 550°/s, preset speed: 550°/s,Up to MAX 700°/s |
| Tilt greitis | Tilt speed: configurable from 0.1° to 300°/s, preset speed 300°/s,Up to MAX 300°/s |
| Proporcingas Pan | yes |
| Iš anksto išsaugoti nustatymai | 300 |
| Išsaugotų nustatymų sustabdymas | yes |
| Patruliavimas | 8 patrols, up to 32 presets for each patrol |
| Park Action | Preset,patrol scan |
| 3D pozicija | yes |
| PTZ būsenos vaizdavimas | yes |
| Užduočių grafikas | Preset,patrol scan,dome reboot,dome adjust,aux output |
| Išjungimo atmintis | yes |
Vaizdas
| Pagrindinis srautas | 50 Hz: 100 fps (1920 × 1080) 50 fps (2688 × 1520, 2560 × 1440, 1280 × 720) 60 Hz: 120 fps (1920 × 1080) 60 fps (2688 × 1520, 2560 × 1440, 1280 × 720) *High frame rate is supported under monitoring mode only. |
| Antrinis srautas | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Trečias srautas | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Vaizdo suspaudimas | H.265||H.264||MJPEG |
| Vaizdo bitų greitis | 32 Kbps to 16384 Kbps |
| H.264 tipas | baseline profile||main profile||high profile |
| H.265 tipas | main profile |
| Scalable Video Coding (SVC) | yes |
| Region of Interest (ROI) | fixed region |
Garso
| Garso suspaudimas | G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC |
| Garso bitų greitis | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)16 Kbps to 64 Kbps(AAC-LC) |
Tinklas
| Protokolai | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,WebSocket,WebSockets |
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
| API | ONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Saugumas | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
| Vidinė atmintis | NAS (NFS, SMB/CIFS) |
| Klientas | iVMS-4200,Hik-Connect,HikCentral Pro |
| Naršyklė | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
Nuotrauka
| Diena/Naktis režimas | day, night, auto, scheduled-switch |
| SNR | ≥52dB |
| Rūko šalinimas | Optical defog |
| Wide Dynamic Range (WDR) | 150 dB |
| Vaizdo stabilizavimas | EIS (Built-in gyroscope to improve EIS performance) |
| Nuotraukų pagražinimas | BLC, HLC, 3D DNR |
| Privatumo kaukė | mask color or mosaic configurable,24 programmable polygon privacy masks |
| Regioninis fokusavimas | yes |
| Regioninė ekspozicija | yes |
Sąsaja
| Vaizdo išvestis | CVBS: 1.0 V[p-p]/75 Ω, PAL/NTSC, BNC connector |
| Interneto sąsaja | RJ45, self-adaptive 10M/100M Ethernet port |
| Garso | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| Signalizacija | 7 alarm inputs, 2 alarm outputs |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Saugyklos vieta | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB. |
Funkcijos
| Pagrindinės funkcijos | Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output |
| Išmaniosios funkcijos | Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection |
| Sąsaja | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, Audible Warning,etc. |
| Išmanus sekimas | Manual tracking,auto-tracking |
Išmaniosios funkcijos
| Veido atpažinimas | Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face. |
| Multi-Target-Type Detection | Supports simultaneous detection and capture of human body, face and vehicle,Gets 7 face features, 14 human body features and 8 vehicle features |
| Kelių eismo ir transporto priemonių aptikimas | Smart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate ≥98%Capture rate ≥99%Driving direction accuracy rate ≥98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode |
Pagrindinis
| Maitinimas | PoE (PoE (bt)), Class 8, 42.5-57V, max. 90W,36 VDC ± 25%, max. 90 W |
| Dydis | Ø214.95 mm × 297.1 mm (Ø8.46″ × 11.7″) |
| Svoris | Approx. 5 kg (11.02 lb.) |
| Darbo sąlygos | Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95% |
| Pagrindinės funkcijos | mirror, password protection, watermark, IP address filter |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Patvirtinimai
| Saugumas | CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1) |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014),IC VoC (ICES-003: Issue 6, 2019),RCM (AS/NZS CISPR 32: 2015),KC (KN 32: 2015, KN 35: 2015) |
| Aplinkosauga | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Apsauga | Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5||IP67 Standard||IK10 |
| Apsauga nuo korozijos | NEMA 4X (NEMA 250-2018) |
| Svoris | 0,32 kg |
|---|---|
