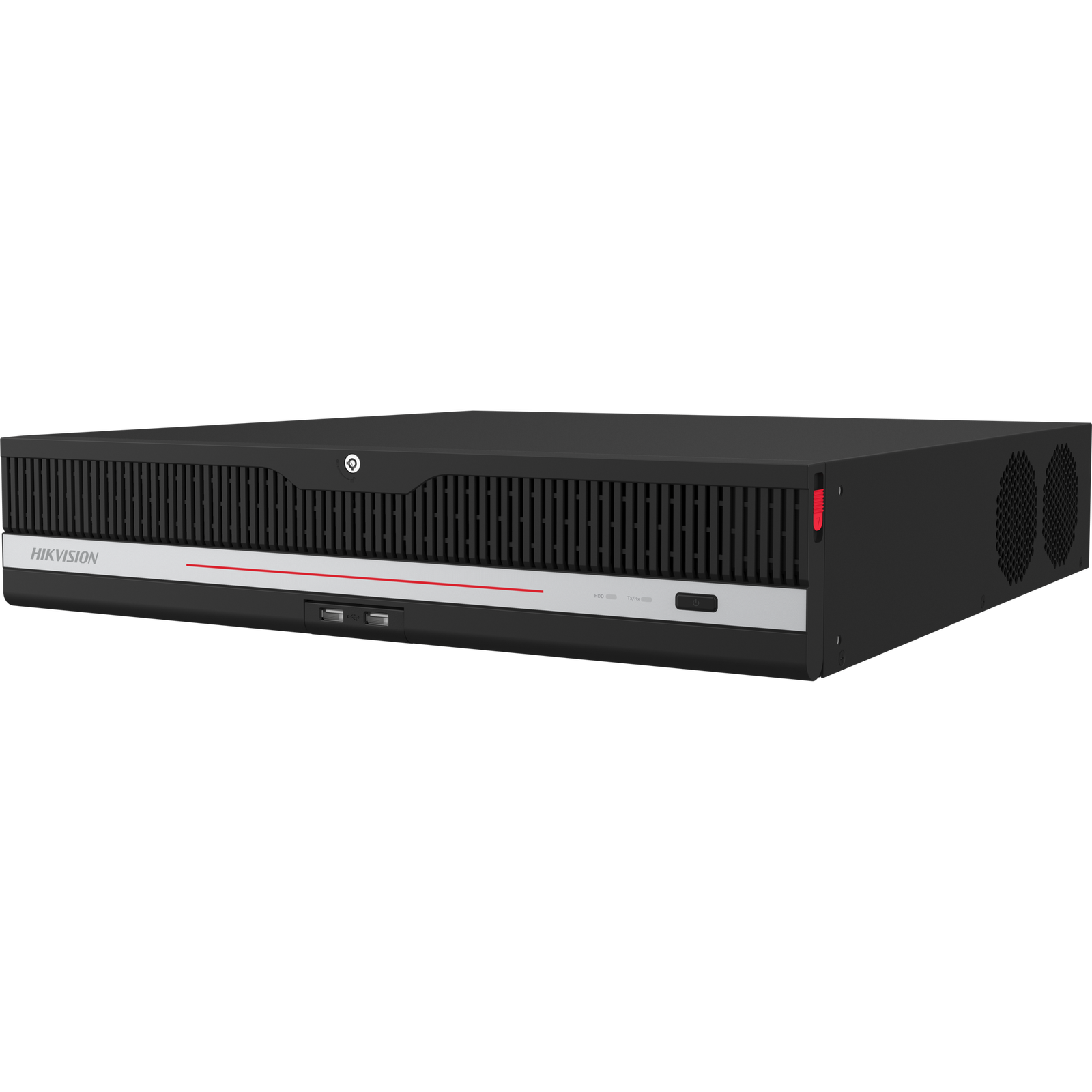

Hikvision NVR Hikvision iDS-9632NXI-M8/X
2.540,43€(Kaina be PVM)3.073,92€(Kaina su PVM)
- 32 kanalų įrašymo įrenginys
- Iki 8 kamerų elgesio analizė
- Iki 12 Mpix raiška vienam kanalui
- VGA ir HDMI išėjimai
- eSata jungtis
- Iki 8 HDD lizdai
- 3 USB prievadai
- Įrašymo pralaidumas: 320 Mbps
- Išėjimo pralaidumas: 256 Mbps
- Iki 2 kanalų dekodavimas: 32 MP / 24 MP / 12 MP / 8 MP / 4 MP / 1080p
- Vaizdo formatai: H.265+/H.265/H.264+/H.264
- Iki 32 IP kamerų gali būti prijungta
- Intelektualioji analizė, pagrįsta giliojo mokymosi algoritmu
- Iki 24 kanalų perimetro apsauga
- Iki 16 kanalų veidų atpažinimas vaizdo srautui arba iki 32 kanalų veidų atpažinimas veidų nuotraukoms
- Iki 12 kanalų vaizdo struktūrizavimas
- Išmanioji analizė
- AI by NVRFacial recognition, perimeter protection, video structuralization, throwing objects from building
- AI pagal kamerąFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA
- Variklis2, each engine can run an intelligent algorithm, engine mode is adjustable
- Veido atpažinimas
- Veido aptikimas ir analizėFace picture comparison, human face capture, face picture search
- Veido paveikslų bibliotekaUp to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Face Picture Comparison (Captured from Camera)
32-ch (16-ch for each engine);
Comparison speed: 48 pictures per second
- Veido aptikimas ir analizės našumas16-ch 2 MP (8-ch for each engine), up to 8 MP
- Perimetro apsauga
- By NVR24-ch 2 MP (12-ch for each engine), up to 8 MP
- Pagal kamerąAll channels
- Video Structuralization
- Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
- Veido paveikslų bibliotekaUp to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Veido nuotraukos palyginimas
16-ch;
Comparison speed: 32 pictures per second
- Throwing Objects from Building
- By NVR16-ch 2 MP (8-ch for each engine), up to 8 MP)
- Pagal kamerąAll channels
- ANPR
- Pagal kamerąAll channels
- Numerių atributaiPlate number, license plate color, license plate type
- Transporto priemonės atributaiVehicle brand, vehicle color, vehicle type
- Vaizdas ir garsas
- IP vaizdo įrašų įvestis
32-ch
Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Įeinantis pralaidumas320 Mbps
- Išeinantis pralaidumas400 Mbps
- HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
- HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
- VGA 1 Output1920 × 1080/60Hz
- VGA 2 Output1920 × 1080/60Hz
- Vaizdo išvesties režimasHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
- CVBS išvestis1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Garso išvestis2-ch, RCA (Linear, 1 KΩ)
- Dvipusis greitis1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Iškodavimas
- Vaizdo iškodavimo formatasH.265/H.265+/H.264/H.264+
- Iškodavimo pajėgumas2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
- Sinchroninis atkūrimas16-ch
- Įrašymo raiška
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Internetas
- Nuotolinis prisijungimas128
- ProtokolaiTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- APIONVIF (profile S/G); SDK; ISAPI
- Suderinama naršyklėIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Tinklo sąsaja2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- RAID
- RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
- Sąsajos
- Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
- DC 12V12 VDC, 1 A power output
- SATA8 SATA interfaces; 3.5-inch HDD
- eSATA1 eSATA interface
- TalpaUp to 14 TB capacity for each HDD
- Serijinė sąsaja1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
- USB sąsajaFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Ispėjamojo signalo įvestis/išvestis16/9
- Pagrindinis
- GUI kalbaEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Maitinimas100 to 240 VAC, 50 to 60 Hz
- Energijos sunaudojimas≤ 50 W (without HDD)
- Darbinė temperatūra-10 to 55° C (14 to 131° F)
- Atsparumas drėgmei10 to 90%
- Dydis445 × 465 × 93 mm ( 17.5″× 18.3″ × 3.7″)
- Svoris≤ 10 kg (without HDD, 28.7 lb.)
- Sertifikatai
- SertifikataiCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
