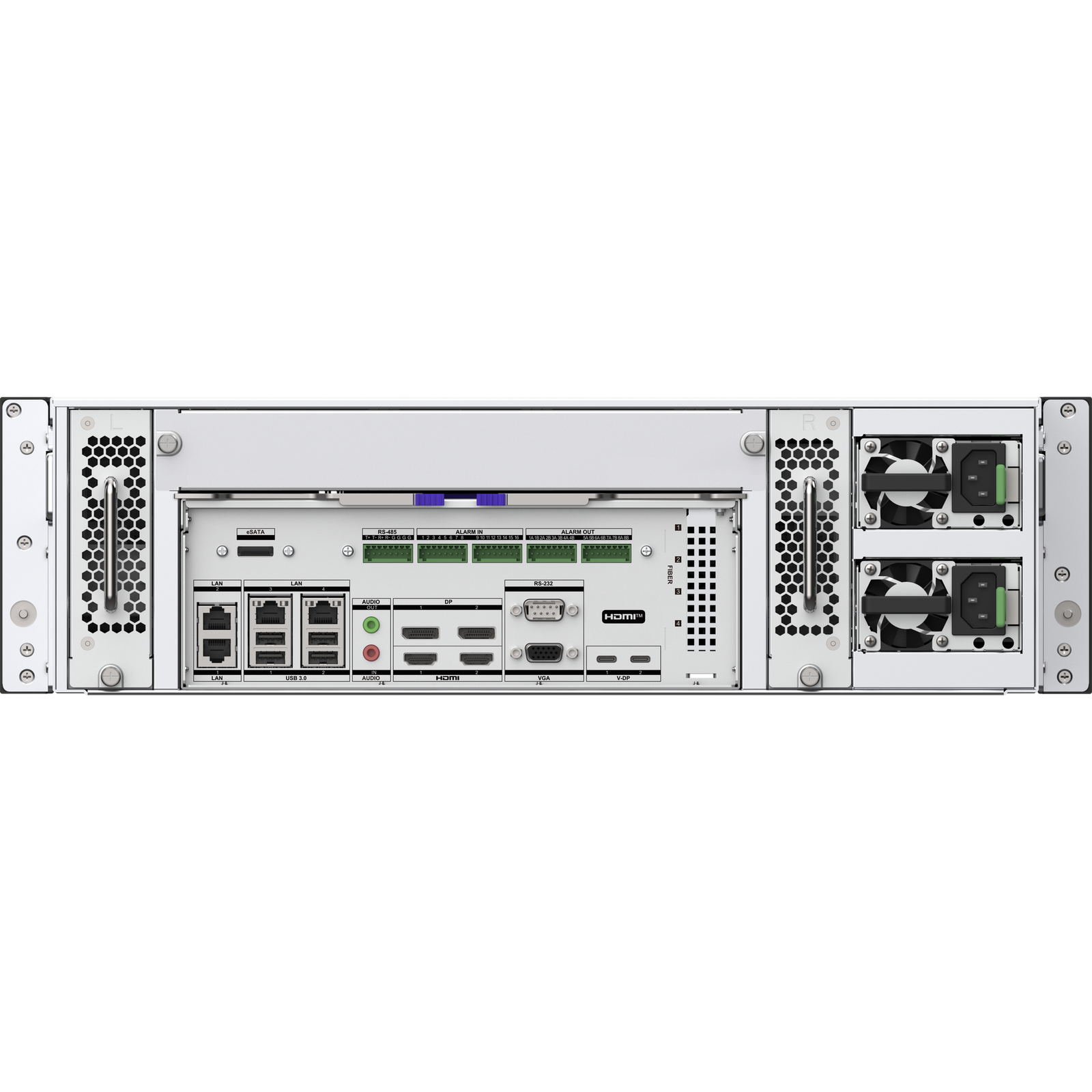

Hikvision NVR DS-96128NI-H16R
Preliminari mėnesinė įmoka nuo 182,05€ / 60 mėn.
6.140,08€(Kaina be PVM)7.429,50€(Kaina su PVM)
| Tinklinis įrašymo įrenginys NVR Hikvision DS-96128NI-H16R | |
| Kanalai: 128 kanalų | |
| Rezoliucija: iki 32 Mpix/kan. | |
| Vaizdo išėjimai: VGA, 2 HDMI išėjimai | |
| Kietieji diskai: iki 20 HDD | |
| Pralaidumas: 1024Mbps In/Out |
Neturime
Vaizdas ir garsas
| IP vaizdo įrašų įvestis | 128-ch |
| Įeinantis pralaidumas | 1024 Mbps |
| Išeinantis pralaidumas | 1024 Mbps |
| Incoming Bandwidth (RAID Mode) | 1024 Mbps |
| Outgoing Bandwidth (RAID mode) | 1024 Mbps |
| HDMI 1 Output | 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA išvestis | 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| DP 1 | 8K (7680 × 4320)/30Hz, 4K (4096×2160)/30 Hz, 4K (3840×2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| DP 2 | 8K (7680 × 4320)/30Hz, 4K (4096×2160)/30 Hz, 4K (3840×2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| V-DP 1 | 8K (7680 × 4320)/30Hz, 4K (4096×2160)/30 Hz, 4K (3840×2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| V-DP 2 | 8K (7680 × 4320)/30Hz, 4K (4096×2160)/30 Hz, 4K (3840×2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| Vaizdo išvesties režimas | Provide 4 groups of video outputs. The video outputs in the same group provide simultaneous output, and the video outputs between each group provide independent output. Group 1: HDMI 1/VGA/LCD Group 2: HDMI 2 Group 3: DP 1/V-DP 1 Group 4: DP 2/V-DP 2 Note: After enabling DP 1/DP 2, V-DP 1/V-DP 2 would be unavailable. |
| Garso išvestis | 1-ch, 3.5mm |
| Dvipusis greitis | 1-ch, 3.5mm |
Iškodavimas
| Vaizdo iškodavimo formatas | H.265+/H.265/H.264+/H.264 |
| Įrašymo raiška | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Sinchroninis atkūrimas | 16-ch |
| Iškodavimo pajėgumas | 3-ch@32 MP (30 fps)/3-ch@24 MP (30fps)/6-ch@16 MP (30fps)/12-ch@8 MP (30fps)/24-ch@4 MP (30fps)/48-ch@2 MP (30fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
| Garso suspaudimas | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
Internetas
| Tinklo sąsaja | 4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface |
| Protokolai | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Nuotolinis prisijungimas | 256 |
RAID
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
Sąsajos
| eSATA | 1 eSATA interface |
| SATA | 16 SATA interfaces supporting hot-plug |
| Talpa | Up to 20 TB for each HDD |
| Serijinė sąsaja | 1 RS-485 (full-duplex), 1 RS-232 |
| Ispėjamojo signalo įvestis/išvestis | 16/8 |
| USB sąsaja | Front panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0 |
Pagrindinis
| Maitinimas | 100 to 240 VAC, 50 to 60 Hz, redundant power supply |
| Energijos sunaudojimas | ≤ 75 W (without HDD) |
| Darbinė temperatūra | 0 °C to + 50 °C (32 °F to 122 °F) |
| Atsparumas drėgmei | 10% to 90% |
| Korpusas | 3U chassis |
| Dydis | 447 × 489 × 133 mm (17.6″ × 19.3″ × 5.2″) |
| Svoris | ≤25 kg (without HDD, 55.1 lb.) |
