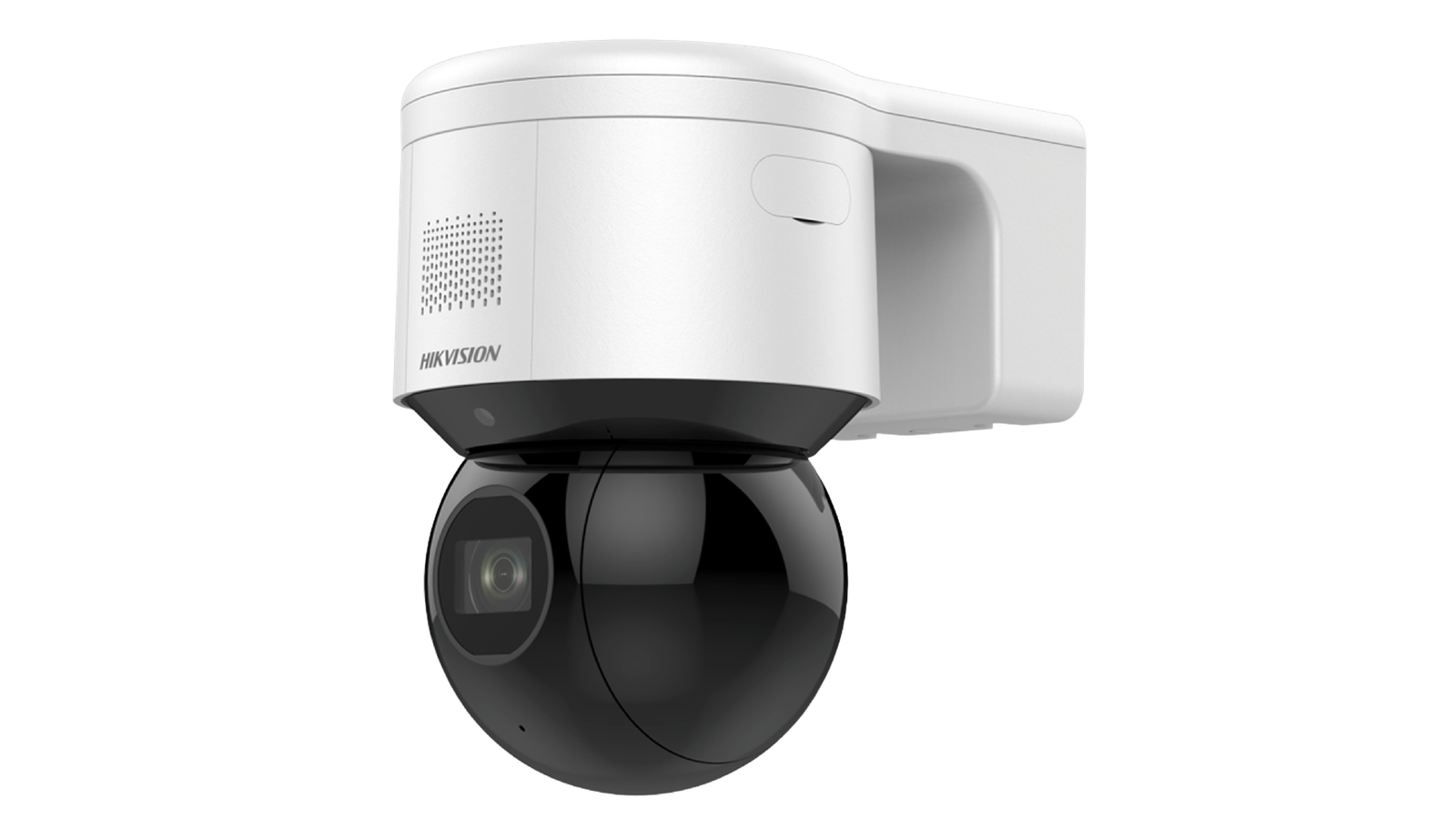

Hikvision mini speed dome DS-2DE3A404IWG-E/W
339,97€(Kaina be PVM)411,36€(Kaina su PVM)
- 4 MP mini speed dome
- Žmonių ir transporto priemonių atpažinimas
- Įmontuotas mikrofonas ir garsiakalbis
- Iki 2560 × 1440 @ 30 fps
- 50m IR pašvietimas
- 120 dB WDR, 3D DNR, HLC
- PoE, Wi-Fi
- IP66
- Kamera
- Sensorius1/2.8″ progressive scan CMOS
- Maks. rezoliucija2560 × 1440
- Min. apšvietimasColor: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR
- Užrakto greitis1 to 1/30,000 s
- Day & NightIR cut filter
- Priartinimas4 × optical, 16 × digital
- Lęšis
- FOV2.8 to 12 mm
- FOV
Horizontal field of view: 96.7° to 31.6° (wide-tele)
Vertical field of view: 51.1° to 17.7° (wide-tele)
Diagonal field of view: 115.1° to 36.3° (wide-tele)
- FokusavimasAuto, semi-auto, manual
- DiafragamaMax. F1.5
- Priartinimo greitisApprox. 2 s (optical lens, wide-tele)
- Apšvietimas
- Papildomo apšvietimo diapazonasIR distance: up to 50 m, white light distance: up to 6 m
- Išmanus papildomas apšvietimasYes
- PTZ
- Movement Range (Pan)0° to 350°
- Movement Range (Tilt)0° to 90°
- Pan greitisConfigurable, from 0.1°/s to 60°/s. Preset speed: 60°/s
- Tilt greitisConfigurable, from 0.1°/s to 50°/s. Preset speed: 50°/s
- Proporcingas PanYes
- Iš anksto išsaugoti nustatymai300
- Išsaugotų nustatymų sustabdymasYes
- Patruliavimas8 patrols, up to 32 presets for each patrol
- Park ActionPreset,Patrol Scan
- 3D pozicijaYes
- PTZ būsenos vaizdavimasYes
- Užduočių grafikasPreset,Patrol Scan,dome reboot, dome adjust, aux output
- Išjungimo atmintisYes
- Vaizdas
- Pagrindinis srautas
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Antrinis srautas
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Trečias srautas
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Vaizdo suspaudimas
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
- Vaizdo bitų greitis32 Kbps to 16 Mbps
- H.264 tipasBaseline profile/main profile/high profile
- H.265 tipasMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Garsas
- Garso suspaudimasG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
- Garso bitų greitis64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
- Internetas
- ProtokolaiIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
- Tiesioginis vaizdo žiūrėjimasUp to 20 channels
- APIOpen Network Video Interface, ISAPI, SDK, ISUP
- User/HostUp to 32 users. 3 user levels, administrator, operator and user
- SaugumasPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Vidinė atmintisNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Klientas
iVMS-4200, HikCentral, Hik-Connect
*Wi-Fi connection with Hik-Connect directly is not possible.
- NaršyklėIE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+
- Wireless (Wi-Fi)
- Šifravimo režimas64/128-bit WEP,WPA/WPA2,WPS
- Wi-Fi protokolaiIEEE802.11b, 802.11g, 802.11n
- Dažnio diapazonas2.4 GHz – 2.4835 GHz
- Kanalo dažnių juostos plotis20/40MHz
- Moduliacija
802.11b: CCK, DQPSK, DBPSK
802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK
802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
- Perdavimo greitis
802.11b: 11, 5.5, 2, 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n: mcs0 – msc7
- Belaidžio ryšio diapazonasUp to 150 m (The performance varies based on actual environment)
- Antenna Built-in 2 antennas
- Nuotrauka
- Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Wide Dynamic Range (WDR)120 dB
- Rūko šalinimasDigital defog
- Nuotraukų pagražinimasBLC, HLC, 3D DNR
- Privatumo kaukė24 programmable polygon privacy masks, mask color configurable
- Regioninis fokusavimasYes
- Regioninė ekspozicijaYes
- Sąsaja
- Interneto sąsaja1 RJ45 10M/100M self-adaptive Ethernet port
- Saugyklos vietaBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Įmontuotas mikrofonas1 built-in microphone
- Įmontuotas garsiakalbis1 built-in speaker, 8 Ω, 2 W. Max sound pressure level: 100 dB (10 cm)
- Garsas1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Signalizacija1 input, 1 output
- Galia12 VDC, max. 60 mA
- Funkcijos
- Pagrindinės funkcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output
- Išmaniosios funkcijosFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Signalizacijos sąsajaPreset, Patrol Scan，Upload to FTP/memory card/NAS, notify surveillance center, send email, audible warning，Flashing Alarm
- Išmaniosios funkcijos
- Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle
- Pagrindinis
- Sistemos parametrai
12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A
Max. 16 W (including max. 2.4 W for IR, 1.2 W for white light flashing)
- Dydis179.3 mm × 120.5 mm × 182 mm (7.06″ × 4.74″ × 7.17″)
- SvorisApprox. 1.125 kg (2.48 lb.)
- MedžiagaADC12 + PC
- Darbo sąlygos-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- Patvirtinimai
- ApsaugaIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
