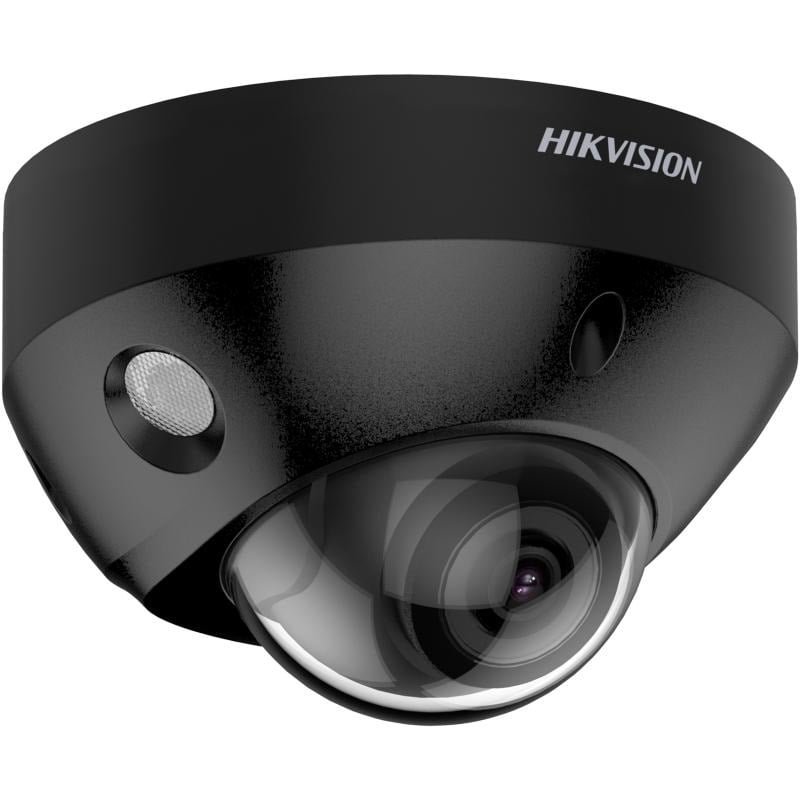

Hikvision mini dome DS-2CD2586G2-IS(C) (Juoda, 8 MP, 30 m. IR, AcuSense)

Name: Hikvision mini dome DS-2CD2586G2-IS(C) (Juoda, 8 MP, 30 m. IR, AcuSense)
SKU: KIP2CD2586G2ISF28CJ
Availability: BackOrder

15,23€ / 36 mėn.

322,55€(Kaina be PVM)390,29€(Kaina su PVM) su PVM

Gamintojas: Hikvision SKU: KIP2CD2586G2ISF28CJ

Patvirtinimai
EMCFCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN32: 2015, KN35: 2015)
AplinkosaugaCE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
ApsaugaIP67: IEC 60529-2013,IK08: IEC 62262:2002
SaugumasUL (UL 62368-1)CB (IEC 62368-1: 2014+A11)CE-LVD (EN 62368-1: 2014/A11: 2017)LOA (IEC/EN 60950-1)

Garsas
Garso bitų dažnis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimasYes

Išmaniosios funkcijos
Veido atpažinimasYes
Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
SąsajaUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detection

Bendra informacija
MatmenysØ113.6 mm × 72.6 mm (Ø4.5″ × 2.9″)
Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
MedžiagaBase: aluminum, cover: plastic
Pakuotės dydis134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
Galia12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE (802.3af, 36 V to 57 V), 0.22 A to 0.14 A, max. 8 W
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
SvorisApprox. 400 g (0.9 lb.)
Svoris su įpakavimuApprox. 635 g (1.4 lb.)

Nuotrauka
Dienos/nakties perjungiklisDay, Night, Auto, Schedule
Nuotraukų pagražinimasBLC, HLC, 3D DNR
Nuotraukos parametrų keitiklisYes
Vaizdo nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR≥ 52 dB
Wide Dynamic Range (WDR)120 dB

Sąsaja
Alarm -IS：1 input, 1 output (max. 12 VDC, 20 mA)
Garsas-IS:1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Integruotas mikrofonasYes
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD card, up to 512 GB
Perkrovimo mygtukasYes

Objektyvas
DiafragmaF1.6
Ryškumo gylis2.8 mm: 2.2 m to ∞4 mm: 2.6 m to ∞
Focal Length & FOV2.8 mm, horizontal FOV 110.0°, vertical FOV 56.7°, diagonal FOV 134.1°4 mm, horizontal FOV 88.0°, vertical FOV 49.9°, diagonal FOV 100.4°
Rainelės tipasFixed
Objektyvo tvirtinimasM12
Objektyvo tipasFixed focal lens, 2.8 and 4 mm optional

Tinklas
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
KlientasiVMS-4200, Hik-Connect, Hik-Central
Vidinė atmintisNAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
Naudotojas/prievadasUp to 32 users. 3 user levels: administrator, operator and user
NaršyklėPlug-in required live view: IE 10, IE 11Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Vaizdas
Bitų dažnio valdymasCBR/VBR
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain Profile
Pagrindinis srautas50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 24 fps (3840 × 2160)30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Antrinis srautas50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Trečias srautas50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
Vaizdo bitų dažnis32 Kbps to 16 Mbps
Video Compression Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.

Svoris	0,6 kg
Gamintojas	Hikvision
