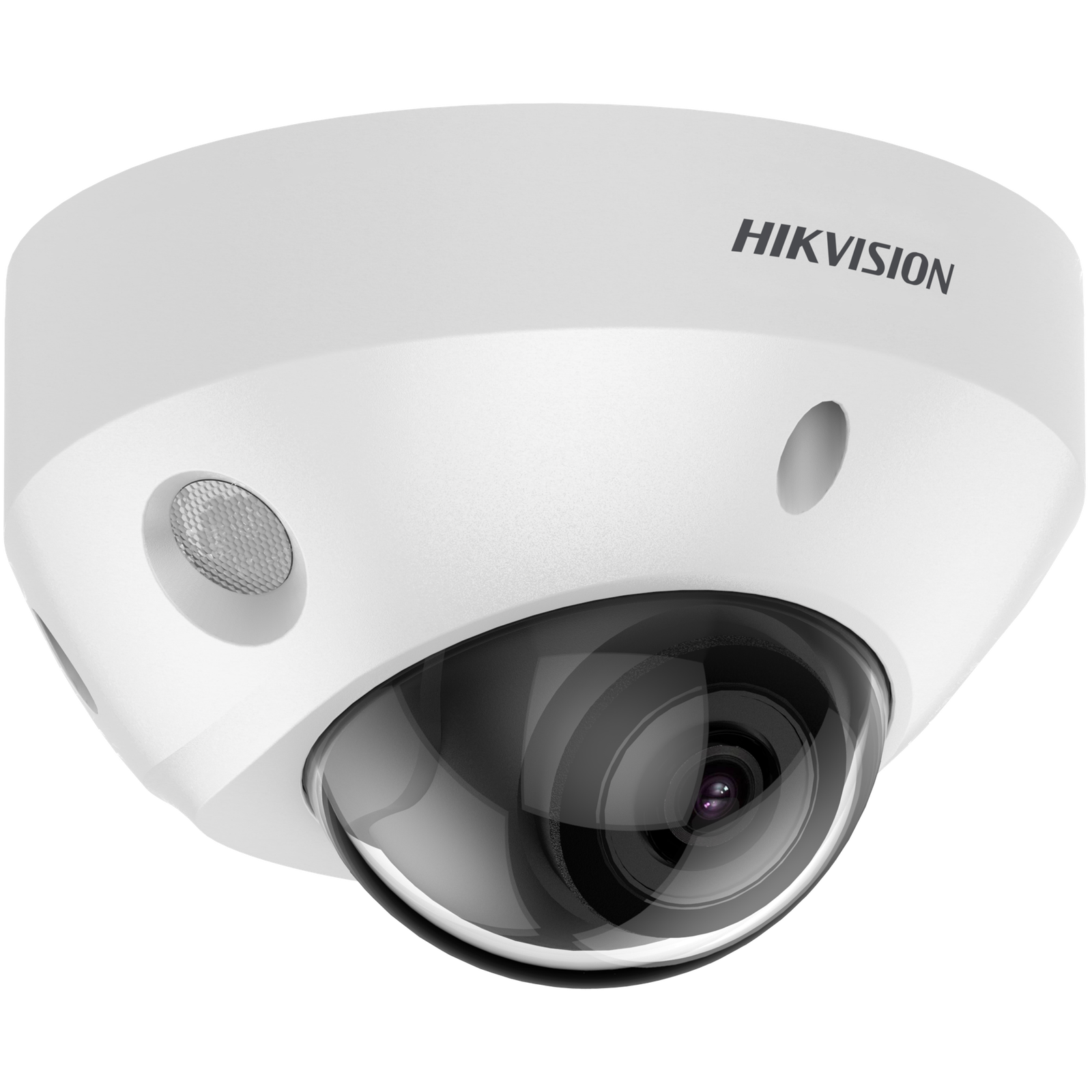

Hikvision mini dome DS-2CD2586G2-IS (balta, 8 MP, 30 m. IR, AcuSense)
14,18€ / 36 mėn.
300,42€(Kaina be PVM)363,51€(Kaina su PVM)
| MP (MegaPixel): 8 MP | |
| Objektyvas: 2.8 mm, horizontalus FOV: 110.° | |
| Technologija: AcuSense | |
| Integruotas mikrofonas: Taip | |
| Naktinis pašvietimas: 30 m. IR; | |
| Garso/signalizacijos įėjimas ir išėjimas | |
| Vieta microSD talpai: Taip, 256GB | |
| Darbo sąlygos: -30 °C iki 60 °C | |
| Saugos lygis: IP67 | |
| Vaizdo suspaudimas: H.265+ | |
| WiFi: Ne | |
| Lauko/vidaus: Lauko |
Turime
Kamera
| Sensorius | 1/1.8″ Progressive Scan CMOS |
| Maks. rezoliucija | 3840 × 2160 |
| Min. apšvietimas | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Kampo keitimas | Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° |
Lęšis
| Lęšio tipas | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 110.0°, vertical FOV 56.7°, diagonal FOV 134.1° 4 mm, horizontal FOV 88.0°, vertical FOV 49.9°, diagonal FOV 100.4° |
| Lęšio montavimas | M12 |
| Rainelės tipas | Fixed |
| Diafragama | F1.6 |
| Ryškumo gylis | 2.8 mm: 2.2 m to ∞ 4 mm: 2.6 m to ∞ |
DORI
| DORI | 2.8 mm: D: 89 m O: 35 m R: 18 m I: 9 m 4 mm: D: 99 m O: 39 m R: 20 m I: 10 m |
Apšvietimas
| Papildomo apšviešimo tipas | IR |
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Išmanus papildomas apšvietimas | Yes |
| IR bangos ilgis | 850 nm |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Antrinis srautas | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Trečias srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Vaizdo suspaudimas | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Vaizdo bitų greitis | 32 Kbps to 16 Mbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Garsas
| Pašalinių garsų šalinimas | Yes |
| Garso atrankos dažnis | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Garso suspaudimas | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Garso bitų greitis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Internetas
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Vidinė atmintis | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Klientas | iVMS-4200, Hik-Connect, Hik-Central |
| Naršyklė | Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Nuotrauka
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Diena/Naktis režimas | Day, Night, Auto, Schedule |
| Nuotraukų pagražinimas | BLC, HLC, 3D DNR |
| Nuotraukos parametrų keitiklis | Yes |
| Nuotraukos nustatymai | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Sąsaja
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support microSD card, up to 512 GB |
| Įmontuotas mikrofonas | Yes |
| Garsas | -IS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Signalizacija | -IS： 1 input, 1 output (max. 12 VDC, 20 mA) |
| Perkrovimo mygtukas | Yes |
Funkcijos
| Pagrindinės funckcijos | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Sąsaja | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
| Išmaniosios funkcijos | Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection |
Išmaniosios funkcijos
| Veido atpažinimas | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
Pagrindinis
| Sistemos parametrai | 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE (802.3af, 36 V to 57 V), 0.22 A to 0.14 A, max. 8 W |
| Medžiaga | Base: aluminum, cover: plastic |
| Dydis | Ø113.6 mm × 72.6 mm (Ø4.5″ × 2.9″) |
| Pakuotės dydis | 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″) |
| Svoris | Approx. 400 g (0.9 lb.) |
| Svoris su įpakavimu | Approx. 635 g (1.4 lb.) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Pagrindinės funkcijos | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
Patvirtinimai
| EMC | FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015) |
| Saugumas | UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) LOA (IEC/EN 60950-1) |
| Aplinkosauga | CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006) |
| Apsauga | IP67: IEC 60529-2013,IK08: IEC 62262:2002 |
| Svoris | 0,488 kg |
|---|---|
