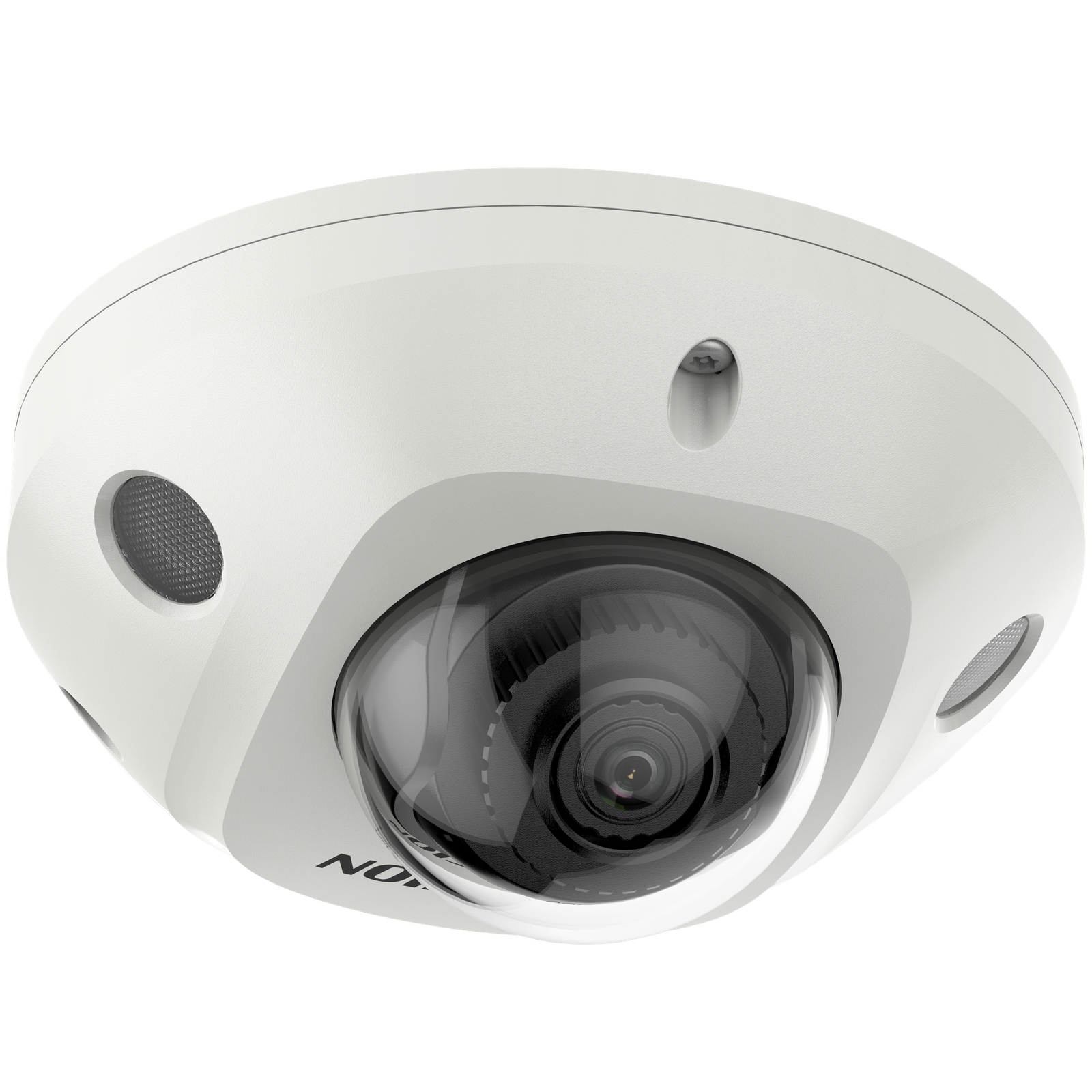

Hikvision mini dome DS-2CD2546G2-I F4 (balta, 4 MP, 30 m. IR, AcuSense)
262,18€(Kaina be PVM)317,24€(Kaina su PVM)
| MP (MegaPixel): 4 MP | |
| Objektyvas: 4 mm, horizontalus FOV: 82° | |
| Technologija: AcuSense | |
| Integruotas mikrofonas: Taip | |
| Naktinis pašvietimas: 30 m. IR | |
| Vieta microSD talpai: Taip, 512GB | |
| Darbo sąlygos: -30 °C iki 60 °C | |
| Saugos lygis: IP67 | |
| Vaizdo suspaudimas: H.265+ | |
| WiFi: Ne | |
| Laikiklis/bazė (papildomai): DS-1280ZJ-DM46 | |
| Lauko/vidaus: Lauko |
Liko tik 1
Kamera
| Sensorius | 1/3″ Progressive Scan CMOS |
| Maks. rezoliucija | 2688 × 1520 |
| Min. apšvietimas | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Kampo keitimas | Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° |
Lęšis
| Lęšio tipas | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 102.7°, vertical FOV 55.2°, diagonal FOV 122.5° 4 mm, horizontal FOV 82.8°, vertical FOV 45.3°, diagonal FOV 97.7° |
| Lęšio montavimas | M12 |
| Rainelės tipas | Fixed |
| Diafragama | F1.4 |
| Ryškumo gylis | 2.8 mm: 1.6 m to ∞ 4 mm: 2.1 m to ∞ |
DORI
| DORI | 2.8 mm: D: 64 m O: 26 m R: 13 m I: 6 m 4 mm D: 77 m O: 31 m R: 16 m I: 8 m |
Apšvietimas
| Papildomo apšviešimo tipas | IR |
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Išmanus papildomas apšvietimas | Yes |
| IR bangos ilgis | 850 nm |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Antrinis srautas | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Trečias srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Vaizdo suspaudimas | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Vaizdo bitų greitis | 32 Kbps to 8 Mbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Garsas
| Garso tipas | -IS/IWS: Mono sound |
| Garso suspaudimas | -IS/IWS: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Garso bitų greitis | -IS/IWS: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Garso atrankos dažnis | -IS/IWS: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Pašalinių garsų šalinimas | -IS/IWS: Yes |
Internetas
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1 (except for -W model), QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Vidinė atmintis | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Klientas | iVMS-4200, Hik-Connect, Hik-Central |
| Naršyklė | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Wi-Fi
| Šifravimo režimas | -W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK |
| Wi-Fi Protocol | -W: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| Dažnio diapazonas | -W: 2.4 GHz to 2.4835 GHz |
| Kanalo dažnių juostos plotis | -W: 20/40 MHz |
| Moduliacija | -W: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| Perdavimo greitis | -W: 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: up to 300 Mbps |
| Belaidžio ryšio diapazonas | -W: Up to 80 m (The performance varies based on actual environment) |
Nuotrauka
| Nuotraukos parametrų keitiklis | Yes |
| Nuotraukos nustatymai | Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Diena/Naktis režimas | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Nuotraukų pagražinimas | BLC, HLC, 3D DNR |
Sąsaja
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support microSD card, up to 512 GB |
| Įmontuotas mikrofonas | Yes |
| Garsas | -IS/IWS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Signalizacija | -IS/IWS: 1 input, 1 output (max. 12 VDC, 20 mA) |
| Perkrovimo mygtukas | Yes |
Funkcijos
| Pagrindinės funckcijos | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Išmaniosios funkcijos | Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle)) Scene change detection |
| Sąsaja | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
Išmaniosios funkcijos
| Veido atpažinimas | Yes |
Pagrindinis
| Sistemos parametrai | -IS: 12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W -IWS: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W |
| Medžiaga | Base: aluminum, cover: plastic |
| Dydis | Ø110 mm × 57.4 mm (Ø 4.3″ × 2.3″) |
| Pakuotės dydis | 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″) |
| Svoris | Approx. 380 g (0.8 lb.) |
| Svoris su įpakavimu | Approx. 620 g (1.4 lb.) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Pagrindinės funkcijos | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
Patvirtinimai
| RF | -W: FCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)) |
| EMC | FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015) |
| Saugumas | UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) LOA (IEC/EN 60950-1) |
| Aplinkosauga | CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006) |
| Apsauga | IP67 (IEC 60529-2013) IK8 (IEC 62262:2002) |
| Svoris | 0,423 kg |
|---|---|
| Gamintojas |
