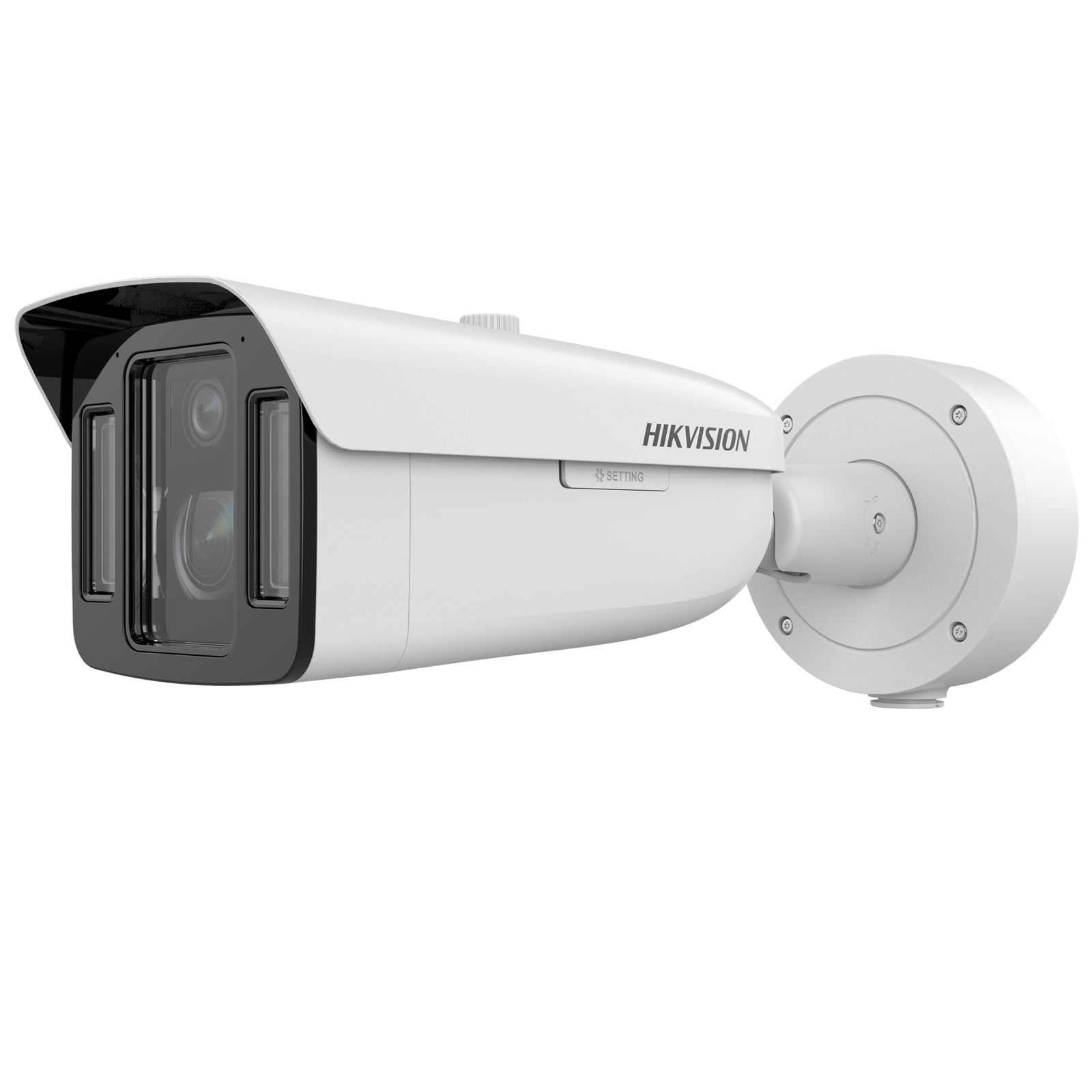

Hikvision iDS-2CD8A48G2-XZHSY F15-45/F4 (balta, 4MP, ColorVu, IR+LED 100m/30m, LPR)
49,23€ / 60 mėn.
1.487,61€(Kaina be PVM)1.800,01€(Kaina su PVM)
| Puikus matomumas prasto apšvietimo sąlygomis dėl DarkFighterX ir ColorVu technologijų | |
| Dvigubo kanalo dizainas – detalės 1 kanale ir panoraminis vaizdas 2 kanale | |
| Aukštos kokybės vaizdas su 4 MP raiška abiejuose kanaluose | |
| Aiškus vaizdas esant stipriam foniniam apšvietimui dėl 140 dB WDR technologijos | |
| Efektyvi H.265+ glaudinimo technologija taupo pralaidumą ir saugyklą | |
| 5 srautai įvairioms reikmėms | |
| Atsparumas vandeniui ir dulkėms (IP67) bei smūgiams (IK10) |
Neturime
Patvirtinimai
| Apsauga nuo korozijos | -Y model: NEMA 4X (NEMA 250-2018) |
| Automatika | EN50121-4 |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015 |
| Aplinkosauga | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Kita | PVC FREE |
| Apsauga | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Saugumas | UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1 |
Garsas
| Garso bitų dažnis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Garso atrankos dažnis | 8 kHz/16 kHz/32 kHz/48 kHz |
| Garso tipas | Mono sound |
| Pašalinių garsų šalinimas | Yes |
Camera
| Kampo keitimas | Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360° |
| Diena&Naktis | Blue glass module (less ghost phenomenon) |
| Vaizdo jutiklis | Channel 1: 1/1.8″ Progressive Scan CMOS,Channel 2: 1/1.8″ Progressive Scan CMOS |
| Maks. rezoliucija | Channel 1: 2560 × 1440, channel 2: 2560 × 1440 |
| Min. apšvietimas | Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR,Channel 2: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR |
| Užrakto greitis | 1 s to 1/100,000 s |
DORI
| DORI | Channel 1:Wide: D: 210.8 m, O: 83.6 m, R: 42.2 m, I: 21.1 mTele: D: 616.6 m, O: 244.7 m, R: 123.3 m, I: 61.7 mChannel 2:D: 75.7 m, O: 30.5 m, R: 15.1 m, I: 7.6 m |
Išmaniosios funkcijos
| Veido atpažinimas | Channel 1,Detects up to 120 faces simultaneously,Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,Uploads face with background and closed-up face pictures |
| Face Comparison | Channel 1,Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total. ,Recognizes face identity via face modeling, grading and comparing to those in face library,Supports face library encryption |
| Multi-target-type Detection | Channel 1,Detects up to 60 targets simultaneously,Supports simultaneous detection and capture of human body, face, motor vehicle, non-motor vehicle,Gets 7 face features,Gets 13 human body features,Gets 2 vehicle features,Supports license plate recognition |
| Perimeter Protection | Channel 1,Line crossing, intrusion, region entrance, region exiting,Support alarm triggering by specified target types (human and vehicle), |
| Queue Management | Supports up to 8 detection regions, and independent arming schedule and linkage methodSupports 2 detection modes: regional people queuing-up, waiting time detectionGenerates reports to compare the efficiency of different queuing-ups and display the changing status of one queueSupports raw data export for further analysis.Supports real-time data uploading and scheduled data uploadingRegional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to thresholdWaiting time detection: supports 1 alarm trigger condition, including greater than threshold |
| Kelių eismo ir transporto priemonių aptikimas | Channel 1,Blocklist and allowlist: up to 10,000 recordsSupport license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)License plate recognition rate ≥98% |
Funkcijos
| Basic Event | Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),video quality diagnosis,vibration detection |
| Sąsaja | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing,audible warning |
| Išmaniosios funkcijos | Scene change detection,audio exception detection,defocus detection |
Bendrieji duomenys
| Rasos šalinimas | Yes |
| Matmenys | Ø140 mm × 410.1 mm (Ø5.5″ × 16.1″) |
| Pagrindinės funkcijos | Heartbeat,one-key reset,mirror,password protection,flash log,anti-banding |
| Šildytuvas | With -H: Yes |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Medžiaga | Aluminum alloy body |
| Pakuotės dydis | 462 mm × 197 mm × 195 mm (18.2″ × 7.76″ × 7.68″) |
| Energija | Three-core terminal block,12 VDC ± 20%, 1.82A, max. 21.8 W,24 VAC ± 20%, 1.4 A, max. 21.6 W,PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.56 A to 0.42 A, max. 23.7 W |
| Darbo sąlygos | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Sandėliavimo sąlygos | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Svoris | Approx. 2620 g (5.78 lb.) |
| Svoris su įpakavimu | Approx. 3260 g (7.19 lb.) |
Apšvietimas
| IR bangos ilgis | 750 nm |
| Išmanus papildomas apšvietimas | Yes |
| Papildomo apšvietimo diapazonas | Channel 1: up to 100 m,Channel 2: up to 30 m |
| Papildomo apšviešimo tipas | Hybrid (IR and White Light) |
Nuotrauka
| Diena/Naktis režimas | Channel 1: Day, Night, Day (DarkfighterX), Auto (DarkfighterX), Schedule (DarkfighterX), Full Time Color,Channel 2: Day, Night, Auto, Scheduled-Switch, Triggered by Alarm input |
| Nuotraukų pagražinimas | Channel 1: BLC, HLC, 3D DNR, Defog, EIS,Channel 2: BLC, HLC, 3D DNR, Defog |
| Nuotraukos parametrų keitiklis | Yes |
| Vaizdo nustatymai | Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser |
| Nuotraukos perdanga | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Privatumo kaukė | 8 programmable polygon privacy masks |
| Wide Dynamic Range (WDR) | 140 dB |
Sąsaja
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| Garsas | 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound |
| Įmontuotas mikrofonas | 2 built-in microphones |
| Įmontuotas garsiakalbis | 1 built-in speaker |
| Interneto sąsaja | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Galia | 12 VDC, max. 50 mA |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Perkrovimo mygtukas | Yes |
| Vaizdo išvestis | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
| Wiegand | 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit) |
Objektyvas
| Diafragma | Channel 1: F1.6,Channel 2: F1.0 |
| Focal Length & FOV | Channel 1: 15 to 45 mm : horizontal FOV 28.1° to 9.5°, vertical FOV:15.7° to 5.3°, diagonal FOV 32.4° to 10.9° ,Channel 2: 4 mm: horizontal FOV: 89.2°, vertical FOV: 45.5°, diagonal FOV: 108.2° |
| Fokusavimas | Channel 1: semi-auto |
| Rainelės tipas | Channel 1: P-iris,Channel 2: Fixed |
Tinklas
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Klientas | iVMS-4200,Hik-Connect |
| Vidinė atmintis | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| Saugumas | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3 |
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
| Naudotojas/prievadas | Up to 32 users3 user levels: administrator, operator, and user |
| Naršyklė | Plug-in required live view: IE 10, IE11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Vaizdas
| Bitų dažnio valdymas | CBR,VBR |
| Penktasis srautas | Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)Channel 2:50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480) |
| Ketvirtas srautas | Channel 1:50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)Channel 2:50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480) |
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Pagrindinis srautas | Channel 1: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)Channel 2: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Antrinis srautas | Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Tikslinis apkarpymas | Yes |
| Trečias srautas | Channel 1: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Vaizdo bitų dažnis | 32 Kbps to 8 Mbps |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG |
| Svoris | 2,7 kg |
|---|---|
