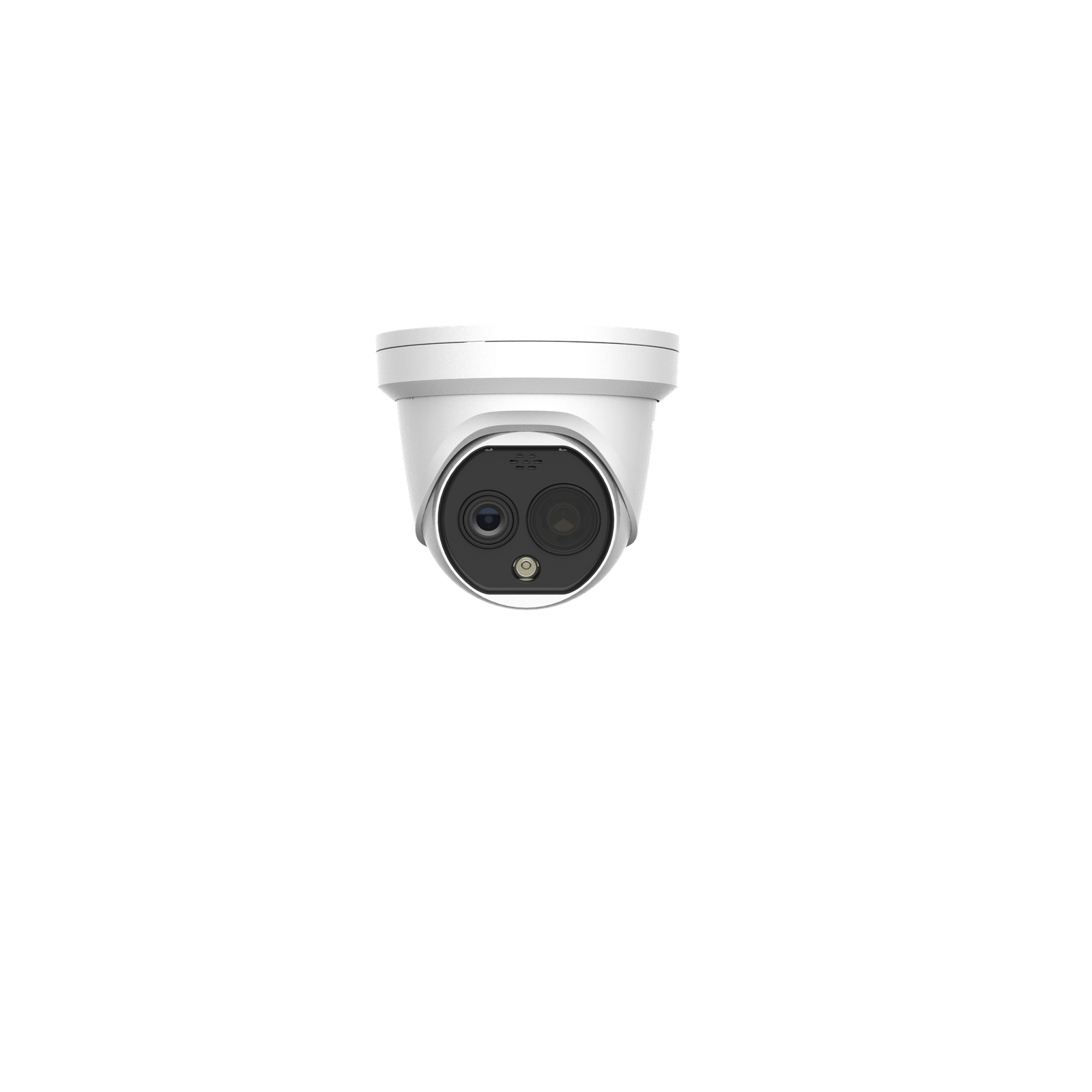

Hikvision HeatPro serijos termovizorinis dome DS-2TD1228T-3/QA(B)
35,39€ / 60 mėn.
1.072,30€(Kaina be PVM)1.297,48€(Kaina su PVM) su PVM
- Tipas: IP kamera
- Modelis: DS-2TD1228T-3/QA(B)
- Prekės ženklas: Hikvision
- Technologija: Termovizorinė ir optinė
- Kameros tipas: IP dome
- Termo modulio raiška: 256×192
- Temperatūros tikslumas: ±2 °C, ±2%
- Optinio modulio raiška: 2688 x 1520
- Plataus dinaminio diapazono (WDR) technologija: 120 dB
- Kompresija: H.265
- IR apšvietimo nuotolis: 15 m
- Atsparumas aplinkos sąlygoms: IP66
- Maitinimas per Ethernet (PoE): Taip
Liko tik 1
- Garsinis ir vaizdinis signalas
- Garso signalizacijaYes, for three types of audible alarm (VCA and Temperature Exception)3 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)
- Vaizdinė signalizacijaYes. White light alarm with adjustable flashing frequencies
- Baltos šviesos diapazonasUp to 30 m
- Detection Range Table/Smart Function Range
- VCA Range for Humans24 m
- VCA Range for Vehicles72 m
- Pagrindinis
- Dydis 138.3 mm × 138.3 mm × 123.1 mm (5.45″ × 5.45″ × 4.85″)
- Kalbos32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Energijos sunaudojimas12 VDC ± 25%: 0.5 A, Max 6 WPoE (802.3af, class 3): 36 V to 57 V, 0.22 A to 0.14 A, Max 6.5 W
- Maitinimas12 VDC ± 25%, φ 5.5 mm coaxial power plugPoE (802.3af, class 3)
- Apsaugos lygisIP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection
- Svoris940 g (2.07 lb)
- Darbinė temperatūra / drėgmėTemperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less
- Apšvietimas
- IR distancija Up to 15 m
- IR intensyvumas ir kampasAutomatically adjusted
- Vaizdo efektas
- Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture in Picture Display partial image of thermal channel on the full screen of optical channel
- Tikslinė spalvaYes. Supported in white hot and black hot mode.
- Sąsaja
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Signalizacijos išvestis2, alarm output (alarm response actions configurable)
- Garso įvestis1, 3.5 mm Mic in/Line in interfaceLine input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Garso išvestis Linear level, impedance: 600 Ω
- Bendravimo sąsaja1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
- Tinklas
- APIISAPI, HIKVISION SDK, ISUP,，and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
- Klientas iVMS-4200, Hik-Connect
- Vidinė atmintisMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Protokolai IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
- SaugumasUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- Tiesioginis vaizdo žiūrėjimasUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- Optinis modulis
- Day & Night ModeIR Cut Filter with Auto Switch
- FOV84.0° ×43.1° (H × V)
- Židinio nuotolis 4.3 mm
- Sensorius1/2.7″ Progressive Scan CMOS
- Min. apšvietimas0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Rezoliucija 2688 × 1520
- Užrakto greitis1 s to 1/100,000 s
- WDR120 dB
- Baltos spalvos balansasMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
- Išmanioji funkcija
- Pagrindinės funkcijosFire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
- Temperatūros tikslumas Max (±2°C, ±2 %)
- Temperatūros matavimas3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperatūros diapazonas -20°C to 550°C (-4°F to 1022°F);
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Termovizorio modulis
- DiafragmaF1.0
- Skaitmeninis priartinimas×2, ×4
- FOV50.0° × 37.3° (H × V)
- Židinio nuotolis3.6 mm
- IFOV3.33 mrad
- SensoriusVanadium Oxide Uncooled Focal Plane Arrays
- Minimali fokusavimo distancija0.5 m
- NETD ≤ 40 mK (@25° C,F# = 1.0)
- Taškinis žingsnis12 μm
- Rezoliucija256 x 192
- Vaizdas ir garsas
- Garso suspaudimasG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Pagrindinis srautas Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
- Vaizdo suspaudimas Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
| Svoris | 1,088 kg |
|---|---|
| Gamintojas |
