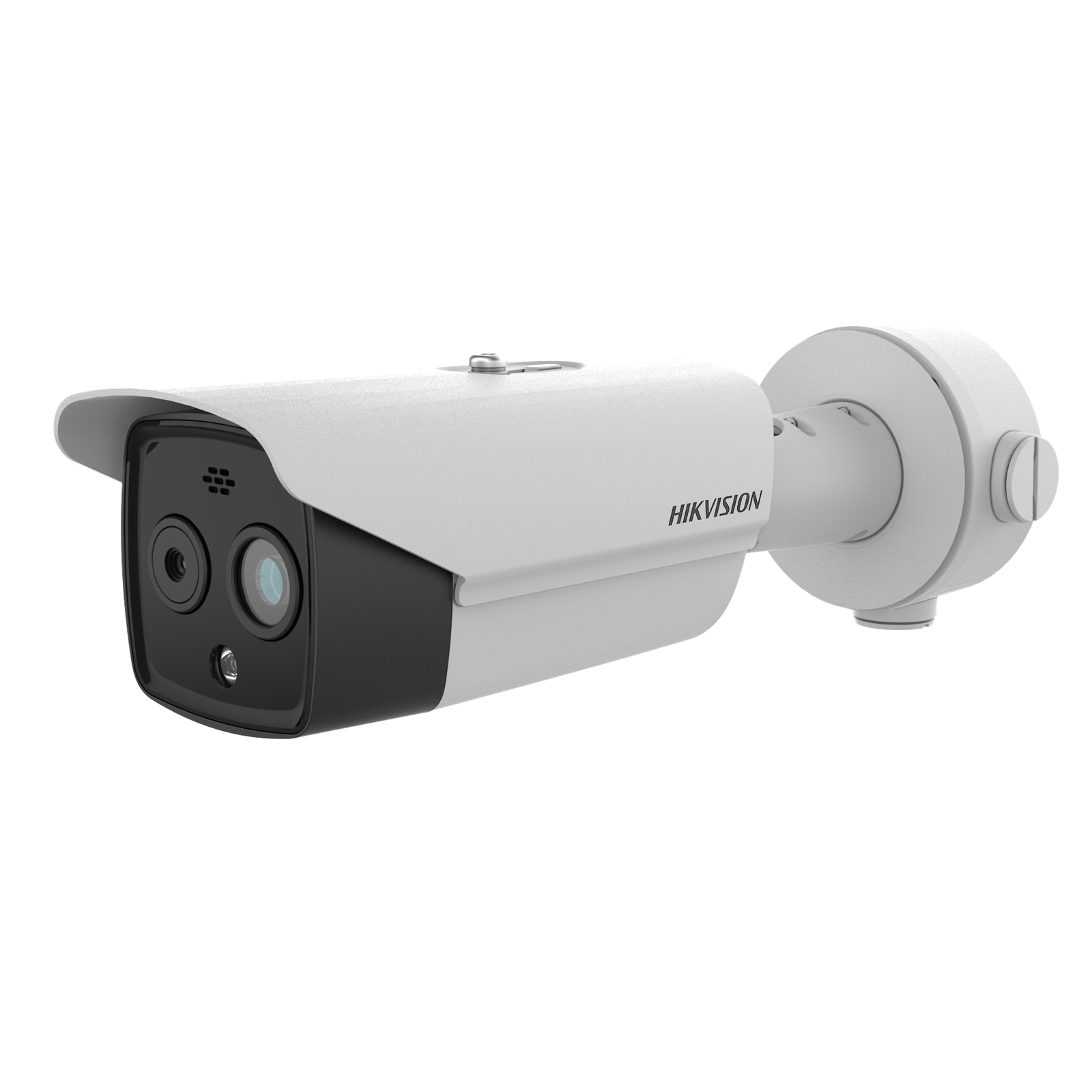

Hikvision HeatPro serijos termovizorinis bullet DS-2TD2628-7/QA
961,09€(Kaina be PVM)1.162,92€(Kaina su PVM)
| IP kamera DS-2TD2628-7/QA | |
| Tipas: BULLET | |
| Gamintojas: Hikvision | |
| Kamera: TERMOVIZORINĖ, bi-spektrinė | |
| Terminė kamera: 256×192 rezoliucija, darbinė temperatūra -20°C – 150°C | |
| Optinė kamera: 6.9mm objektyvas, IR apšvietimas iki 30m | |
| Atitikimas: IP67 | |
| PoE palaikymas | |
| Įeina: 1260ZJ |
Neturime
Termovizorio modulis
| Sensorius | Vanadium Oxide Uncooled Focal Plane Arrays |
| Rezoliucija | 256 × 192 |
| Taškinis žingsnis | 12 μm |
| Spektrinis diapazonas | 8 μm to 14 μm |
| NETD | < 40 mK (25°C, F1.0) |
| FOV | 6.9mm |
| IFOV | 1.74 mrad |
| FOV | 24.9° × 18.7° (H × V) |
| Minimali fokusavimo distancija | 1 m |
| Diafragama | F1.0 |
| Skaitmeninis priartinimas | ×2, ×4 |
Optinis modulis
| Sensorius | 1/2.7″ Progressive Scan CMOS |
| Rezoliucija | 2688 × 1520 |
| Min. apšvietimas | 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR |
| Užrakto greitis | 1 s to 1/100,000 s |
| FOV | 6.4 mm |
| FOV | 53.0° × 28.0° (H × V) |
| Diafragma (diapazonas) | F1.6 |
| WDR | 120 dB |
Vaizdo efektas
| Tikslinė spalva | Yes. Supported in white hot and black hot mode. |
Apšvietimas
| IR distancija | Up to 30 m |
| IR intensyvumas ir kampas | Automatically adjusted |
Garsinis ir vaizdinis signalas
| Baltos šviesos diapazonas | Up to 30 m |
| Vaizdinė signalizacija | Yes. White light alarm with adjustable flashing frequencies |
| Garso signalizacija | Yes, for two types of audible alarm (VCA and Temperature Exception) 2 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types) |
Išmanioji funkcija
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperatūros matavimas | 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) |
| Temperatūros diapazonas | -20°C to 150°C (-4°F to 302°F) |
| Temperatūros tikslumas | ± 8°C (± 14.4°F) |
| Pagrindinės funkcijos | Fire detection, smoking detection, sun-reflection filter |
Vaizdas ir garsas
| Pagrindinis srautas | Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-stream | Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) |
| Vaizdo suspaudimas | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
| Garso suspaudimas | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
Internetas
| Protokolai | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS |
| Vidinė atmintis | MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G) |
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Saugumas | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| Klientas | iVMS-4200, Hik-Connect |
| Naršyklė | Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 + |
Sąsaja
| Signalizacijos įvestis | 2, alarm input (0-5 VDC) |
| Signalizacijos išvestis | 2, alarm output (alarm response actions configurable) |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Garso įvestis | 1, 3.5 mm Mic in/Line in interface Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Garso išvestis | Linear level, impedance: 600 Ω |
| Bendravimo sąsaja | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) |
| Analoginė išvestis | 1.0V [p-p]/75Ω, PAL/NTSC/BNC |
Pagrindinis
| Tinklo naršyklės kalba | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Maitinimas | 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block PoE (802.3af, class 3) |
| Energijos sunaudojimas | 24 VAC ± 25%: 0.8 A, Max.8.5 W 12 VDC ± 25%: 0.7 A, Max.8.5 W PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W |
| Darbinė temperatūra / drėgmė | Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less |
| Apsaugos lygis | IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing |
| Dydis | 321.3 mm × 106.1 mm × 107.0 mm (12.65″ × 4.18″ × 4.21″) |
| Svoris | 1550 g (3.41 lb) |
Detection Range Table/Smart Function Range
| VCA Range for Humans | 56 m |
| VCA Range for Vehicles | 168 m |
| Svoris | 1,906 kg |
|---|---|
