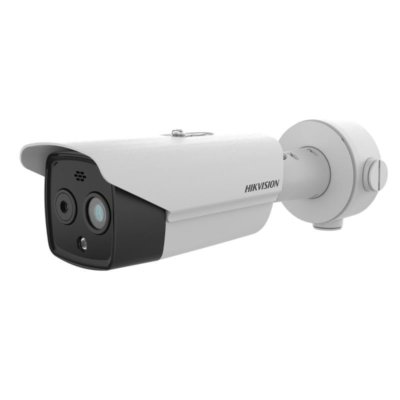

Hikvision HeatPro serijos termovizorinis bullet DS-2TD2628-10/QA
Preliminari mėnesinė įmoka nuo 31,64€ / 60 mėn.
961,09€(Kaina be PVM)1.162,92€(Kaina su PVM)
| Tipas: Termovizorinė bi-spektrinė IP kamera (Bullet) | |
| Modelis: DS-2TD2628-10/QA | |
| Prekės ženklas: Hikvision | |
| Serija: HeatPro | |
| Terminė kamera: 256×192, NETD < 40 mK (@25 °C, F#=1.1), židinio nuotolis 9.7 mm | |
| Temperatūros diapazonas: -20 °C – +150 °C, tikslumas ±8 °C | |
| Optinė kamera: 9.7 mm, IR apšvietimas iki 30 m | |
| Funkcijos: Šviesos ir garso aliarmas | |
| Maitinimas: PoE | |
| Apsauga: IP67 | |
| Komplekte: Laikiklis 1260ZJ |
Turime
Garsinis ir vaizdinis signalas
| Garso signalizacija | Yes, for two types of audible alarm (VCA and Temperature Exception)2 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types) |
| Vaizdinė signalizacija | Yes. White light alarm with adjustable flashing frequencies |
| Baltos šviesos diapazonas | Up to 30 m |
Detection Range Table/Smart Function Range
| VCA Range for Humans | 80 m |
| VCA Range for Vehicles | 240 m |
Bendrieji duomenys
| Matmenys | 321.3 mm × 106.1 mm × 107.0 mm (12.65″ × 4.18″ × 4.21″) |
| Energijos sąnaudos | 24 VAC ± 25%: 0.8 A, Max.8.5 W12 VDC ± 25%: 0.7 A, Max.8.5 WPoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W |
| Maitinimo šaltinis | 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal blockPoE (802.3af, class 3) |
| Apsaugos lygis | IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protectionIK10-rated housing |
| Tinklo naršyklės kalba | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Svoris | 1550 g (3.41 lb) |
| Darbinė temperatūra / drėgmė | Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less |
Apšvietimas
| IR distancija | Up to 30 m |
| IR intensyvumas ir kampas | Automatically adjusted |
Vaizdo efektas
| Tikslinė spalva | Yes. Supported in white hot and black hot mode. |
Sąsaja
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Signalizacijos įvestis | 2, alarm input (0-5 VDC) |
| Signalizacijos išvestis | 2, alarm output (alarm response actions configurable) |
| Analoginė išvestis | 1.0V [p-p]/75Ω, PAL/NTSC/BNC |
| Garso įvestis | 1, 3.5 mm Mic in/Line in interfaceLine input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Garso išvestis | Linear level, impedance: 600 Ω |
| Bendravimo sąsaja | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex) |
Tinklas
| API | ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G) |
| Klientas | iVMS-4200, Hik-Connect |
| Vidinė atmintis | MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Protokolai | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS |
| Saugumas | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Naršyklė | Live view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +Local service : Chrome 57.0 +, Firefox 52.0 + |
Optinis modulis
| Diafragma (diapazonas) | F1.6 |
| Matymo laukas | 39.4° × 22.1° (H × V) |
| Židinio nuotolis | 8.0 mm |
| Vaizdo jutiklis | 1/2.7″ Progressive Scan CMOS |
| Minimalus apšvietimas | 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR |
| Raiška | 2688 × 1520 |
| Užrakto greitis | 1 s to 1/100,000 s |
| WDR | 120 dB |
Išmanioji funkcija
| Pagrindinės funkcijos | Fire detection, smoking detection, sun-reflection filter |
| Temperatūros tikslumas | ± 8°C (± 14.4°F) |
| Temperatūros matavimas | 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) |
| Temperatūros diapazonas | -20°C to 150°C (-4°F to 302°F) |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
Termovizorio modulis
| Diafragma | F1.0 |
| Skaitmeninis priartinimas | ×2, ×4 |
| Matymo laukas | 18.0° × 13.5° (H × V) |
| Židinio nuotolis | 9.7 mm |
| IFOV | 1.24 mrad |
| Vaizdo jutiklis | Vanadium Oxide Uncooled Focal Plane Arrays |
| Minimali fokusavimo distancija | 1.5 m |
| NETD | < 40 mK (25°C, F1.0) |
| Taškinis žingsnis | 12 μm |
| Raiška | 256 × 192 |
| Spektrinis diapazonas | 8 μm to 14 μm |
Vaizdas ir garsas
| Garso glaudinimas | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Pagrindinis srautas | Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Antrinis srautas | Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240) |
| Vaizdo glaudinimas | Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG |
| Svoris | 1,55 kg |
|---|---|
