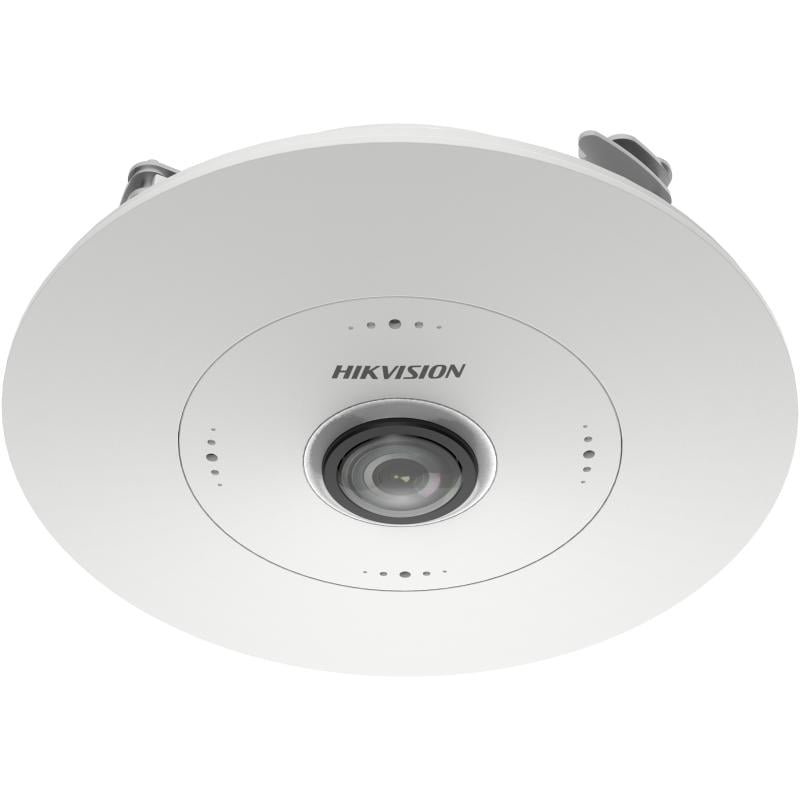

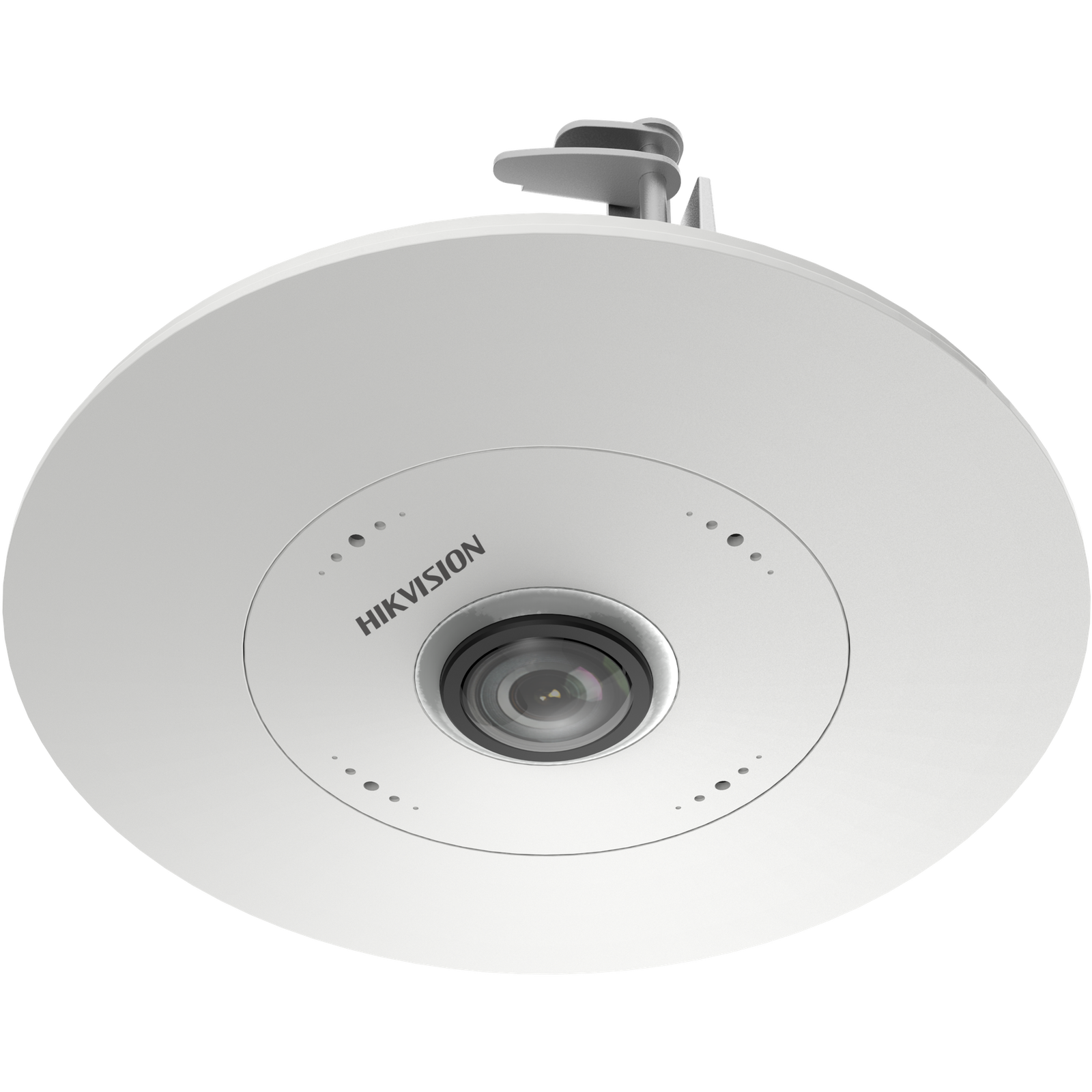

Hikvision fisheye DS-2CD63C5G1-S/RC F1.29

Preliminari mėnesinė įmoka nuo 30,03€ / 60 mėn.

912,88€(Kaina be PVM)1.104,59€(Kaina su PVM)

12MP kamera
IR pašvietimas: iki 20m
H.265+ suspaudimo technologija
360° fisheye vaizdas
120dB DWDR
Integruotas mikrofonas ir garsiakalbis
PoE, SD kortelė iki 256gb

Neturime

Gamintojas: Hikvision SKU: KIP2CD63C5G1SRCF129

Kategorijos: Fisheye Cameras, IP kameros, IP vaizdo apsauga

Žymos: Fisheye Cameras, IP kameros, IP vaizdo apsauga, Main

Aprašymas
Papildoma informacija

Kamera

Sensorius	1/1.8″ Progressive Scan CMOS
Maks. rezoliucija	3504 × 3504
Min. apšvietimas	Color: 0.03 Lux @ (F2.2, AGC ON),B/W: 0.006 Lux @ (F2.2, AGC ON)
Užrakto greitis	1 s to 1/100,000 s
Day & Night	IR cut filter

Lęšis

Lęšio tipas	Fixed focal lens, 1.29 mm
Focal Length & FOV	1.29 mm, horizontal FOV 180°, vertical FOV 180°
Rainelės tipas	Fixed
Diafragama	F2.2
Ryškumo gylis	0.2 m to ∞

DORI

DORI

D: 27.9 m

O: 11.1 m

R: 5.6 m

I: 2.8 m

HEOP

Atviri ištekliai	Memory: 60 MB, Smart RAM: 800 MB, eMMC: 2 GB
Kompiuterinė galia	2 TOPS
SDK	HEOP 2.0 OpendevSDK
Giluminio mokymosi struktūra	Caffe,TensorFlow,PyTorch
Programavimo kalba	C,C++

Vaizdas

Pagrindinis srautas	50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048 180 Panorama View: 3072 × 2304, 2048 × 1536 180 Dual Channel Panorama View: 3072 × 1152 Panorama View: 3072 × 2304, 2048 × 1536 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1600 × 1200 Fisheye + 3PTZ View: camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280 camera 02/camera 03/camera 04: 1600 × 1200 4PTZ Fusion View: 3200 × 2400, 2048 × 1536
Antrinis srautas	50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 720 × 720, 480 × 480 180 Panorama View: 640 × 480, 320 × 240 180 Dual Channel Panorama View: 640 × 480, 320 × 240 Panorama View: 640 × 360, 320 × 240 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240 Fisheye + 3PTZ View: camera 01: 720 × 720 camera 02/camera 03/camera 04: 640 × 480, 320 × 240
Vaizdo suspaudimas	Main stream: H.265+/H.265/H.264+/ H.264, Sub-stream: H.265/H.264/MJPEG
Vaizdo bitų greitis	32 Kbps to 16 Mbps
H.264 tipas	Baseline Profile,Main Profile,High Profile
H.265 tipas	Main Profile
Bitų greičio kontrolė	CBR,VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	4 fixed regions for each stream

Fisheye rodymas

Montavimo tipas

Support wall/table/ceiling mounting

Dekodavimo režimas

Support hardware decoding and software decoding

Rodymo rėžimas

20 display modes in total,

Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder,

Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Garsas

Garso suspaudimas	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis	8 kHz/16 kHz/32 kHz/48 kHz
Pašalinių garsų šalinimas	Yes

Internetas

Protokolai	TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
Tiesioginis vaizdo žiūrėjimas	Up to 20 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP, Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Saugumas	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Vidinė atmintis	NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas	iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
Naršyklė	Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Nuotrauka

Nuotraukos parametrų keitiklis	Yes
Nuotraukos nustatymai	saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Diena/Naktis režimas	Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)	Digital WDR
Nuotraukų pagražinimas	BLC,HLC,3D DNR,Distortion Correction,Defog
Privatumo kaukė	8 programmable polygon privacy masks
Nuotraukos perdanga	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Sąsaja

Interneto sąsaja	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Vidinė atmintis	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Įmontuotas mikrofonas	Yes, 4 built-in microphones
Garsas	1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija	2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485	1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Perkrovimo mygtukas	1 Reset Key

Funkcijos

Pagrindinės funckcijos	Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Išmaniosios funkcijos	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
Sąsaja	Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Išmaniosios funkcijos

Žmonių skaičiavimas	Counts people entering, exiting and passing by separately (The data is stored in the flash.) Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports up to 3 detection regions, and independent arming schedule and linkage method
Eilių valdymas	Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Heat Map	A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart.
Sankryžų analizė	Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways

Pagrindinis

Sistemos parametrai	12 VDC ± 20%, 0.6 A, max. 7 W,two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 8 W
Medžiaga	Metal
Dydis	Ø165.0 mm × 48.9 mm (Ø6.49″ × 1.93″)
Pakuotės dydis	272 mm × 215 mm × 105 mm (10.7″ × 8.5″ × 4.1″)
Svoris	Approx. 470 g (1.04 lb.)
Svoris su įpakavimu	Approx. 884 g (1.95 lb.)
Sandėliavimo sąlygos	-10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos	-10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing)
Kalba	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos	Heartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding
Kabelio ilgis	0.31 m (1.02 ft.)
