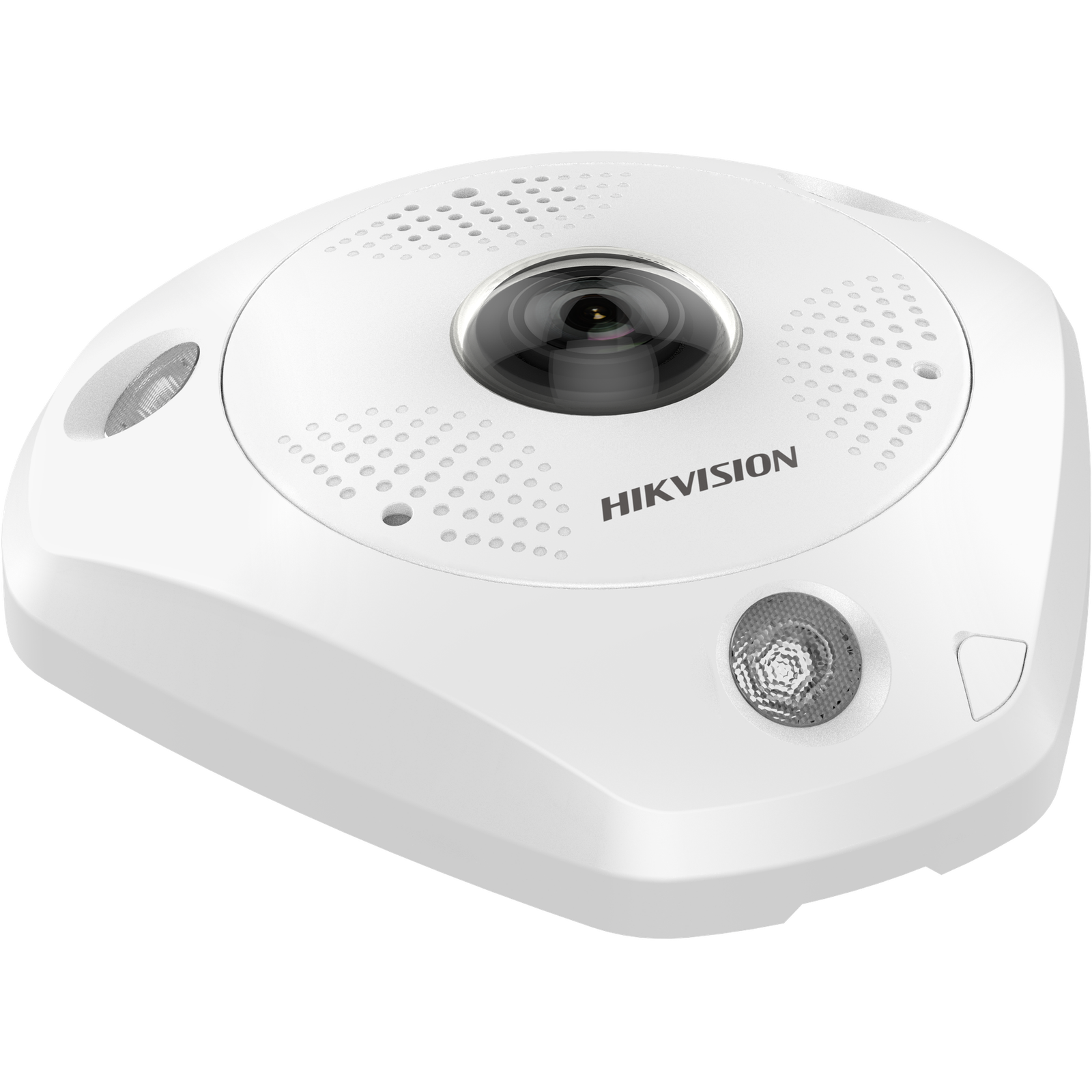

Hikvision fisheye DS-2CD63C5G0-IVS (D) F1.29

Color: 0.05 Lux @ (F2.2, AGC ON),

B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR

50 Hz: 20 fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560)

60 Hz: 20 fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)

50 Hz: 20 fps (720 × 720, 640 × 480)

60 Hz: 20 fps (720 × 720, 640 × 480)

Main stream: H.265+/H.265/H.264+/H.264

Sub stream: H.265/H.264/MJPEG

H.265 and H.264 support

18 display modes in total

Software decoding:

Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, hemisphere, AR hemisphere, cylinder

Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ

Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder

Hardware decoding:

Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

2 built-in microphones, 1 built-in speaker, mono sound

-S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)

Yes

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Audio exception detection

Counts people entering, exiting and passing by separately

Supports real-time uploading and uploading by statistic cycle

Sends email reports on daily, weekly, monthly or annually basis

Supports target filtering by height

A graphic description of visits (calculated by people number or by dwell time) in a configured area.

Two heap map report types are available, space heat map and time heat map line chart

Detects and analyze flow in an intersection-like scene, and generate reports

Support one intersection of up to 10 ways

12 VDC±20%, 1 A, max. 12.5 W

-S model: two-core terminal block

Without –S model: Φ 5.5 × 2.1 mm coaxial power plug

PoE (802.3at, class 4, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W

Without –V model: 167.4 × 152.8 × 46.8 mm (6. 6″ × 6″ × 1.8″)

With –V model: 167 × 152.8 × 55 mm (6. 6 × 6″ × 2.2″) „

Yes
