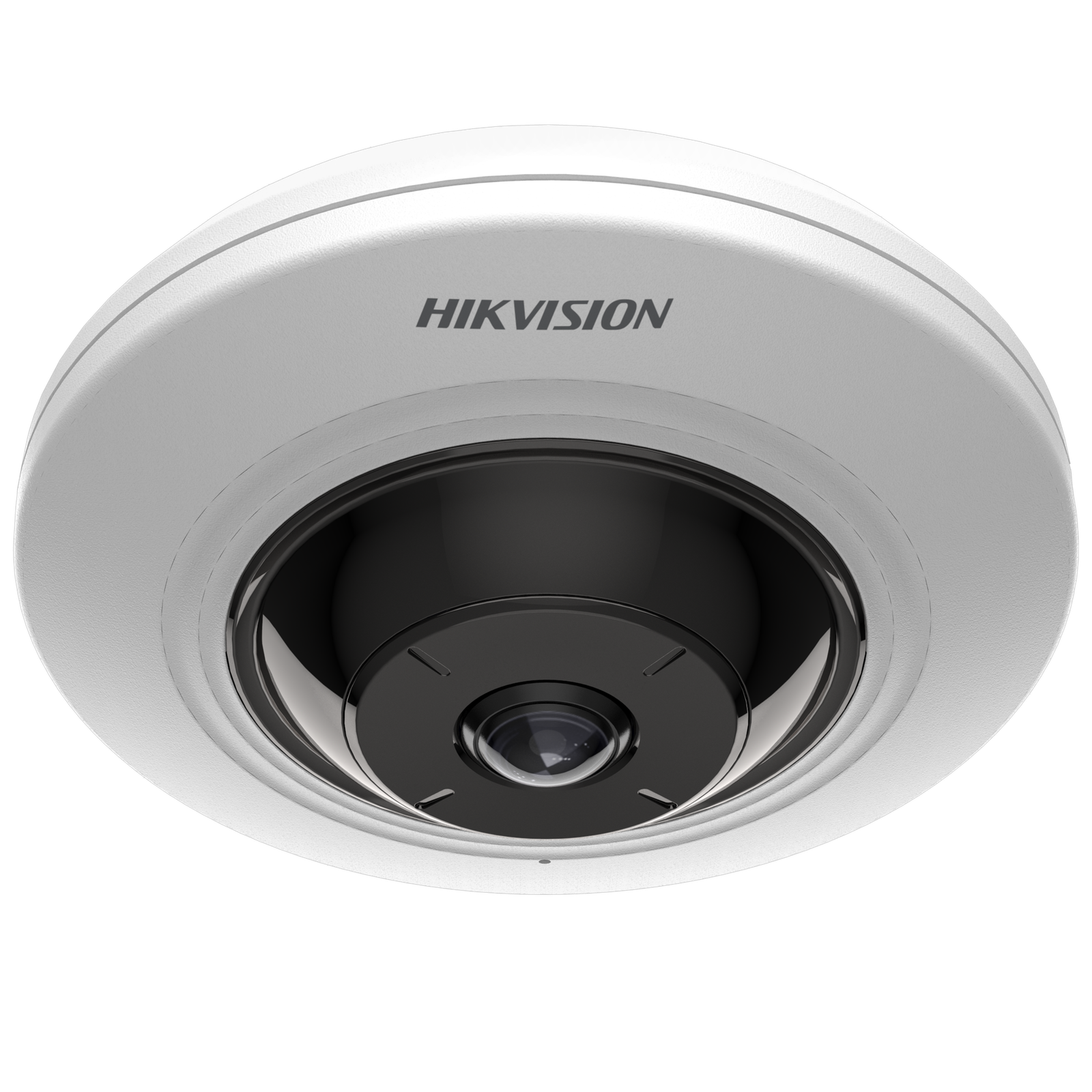

Hikvision fisheye DS-2CD3956G2-ISU F1.05

Name: Hikvision fisheye DS-2CD3956G2-ISU F1.05
SKU: KIPDS2CD3956G2ISUF1
Availability: OutOfStock

Preliminari mėnesinė įmoka nuo 18,58€ / 48 mėn.

451,31€(Kaina be PVM)546,09€(Kaina su PVM)

Neturime

Gamintojas: Hikvision SKU: KIPDS2CD3956G2ISUF1

Sensorius	1/2.7″ Progressive Scan CMOS
Maks. rezoliucija	2560 × 1920
Min. apšvietimas	Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
Užrakto greitis	1/3 s to 1/100,000 s
Day & Night	IR cut filter

Lęšio tipas	Fixed focal lens, 1.05 mm
Focal Length & FOV	1.05 mm, horizional FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
Lęšio montavimas	M12
Rainelės tipas	Fixed
Diafragama	F2.25
Ryškumo gylis	0.1 m to ∞

DORI

D: 21 m, O: 8 m, R: 4 m, I: 2 m

Papildomo apšviešimo tipas	IR
Papildomo apšvietimo diapazonas	Up to 8 m
Išmanus papildomas apšvietimas	Yes
IR bangos ilgis	850 nm

Pagrindinis srautas	50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 2560 × 1920, 2048 × 1536, 1280 × 960 180 Panorama View: 2048 × 1152, 1280 × 720 180 Dual Channel Panorama View: 4096 × 576，2048 × 288 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1200 × 900 Fisheye + 3PTZ View: camera 01: 2048 × 1536, 1280 × 960 camera 02/camera 03/camera 04: 1200 × 900
Antrinis srautas	50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 640 × 480, 640 × 360 180 Panorama View: 640 × 480, 640 × 360 Fisheye + 3PTZ View: camera 01: 640 × 480, 640 × 360
Vaizdo suspaudimas	Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
Vaizdo bitų greitis	32 Kbps to 16 Mbps
H.264 tipas	Baseline Profile/Main Profile/High Profile
H.265 tipas	Main Profile
Bitų greičio kontrolė	CBR/VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	5 fixed regions for main stream and sub-stream
Tikslinis apkarpymas	Yes

Montavimo tipas	Support wall/table/ceiling mounting
Decoding Mode	Support hardware decoding and software decoding

Garso suspaudimas	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimas	Yes

Protokolai	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Tiesioginis vaizdo žiūrėjimas	Up to 20 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Saugumas	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
Vidinė atmintis	NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas	iVMS-4200, Hik-Connect, Hik-Central
Naršyklė	Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Nuotraukos parametrų keitiklis	Yes
Nuotraukos nustatymai	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Diena/Naktis režimas	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	120 dB
Nuotraukų pagražinimas	BLC, HLC, 3D DNR
SNR	≥ 52 dB

Interneto sąsaja	1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis	Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Įmontuotas mikrofonas	-U: Yes
Garsas	1 input(s) (line in), four-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output(s) (line out), four-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija	1 input, 1 output (max. 12 VDC, 30 mA)
RS-485	1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Perkrovimo mygtukas	Yes

Pagrindinės funckcijos	Motion detection,video tampering alarm,exception
Sąsaja	Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

People Counting

Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),

Supports real-time uploading and uploading by statistic cycle

Queue Management

Supports up to 4 detection regions, and independent arming schedule and linkage method

Heat Map

Yes

Sistemos parametrai	12 VDC ± 25%, 0.50 A, max. 6 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W
Dydis	Ø119.9 mm × 41.2 mm (Ø4.7 × 1.6″)”
Pakuotės dydis	150 mm × 125 mm × 99 mm (5.9″ × 4.9″ × 3.9″)
Svoris	Approx. 320 g (0.7 lb.)
Svoris su įpakavimu	Approx. 510 g (1.1 lb.)
Pagrindinės funkcijos	Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Sandėliavimo sąlygos	-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos	-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Kalba	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
