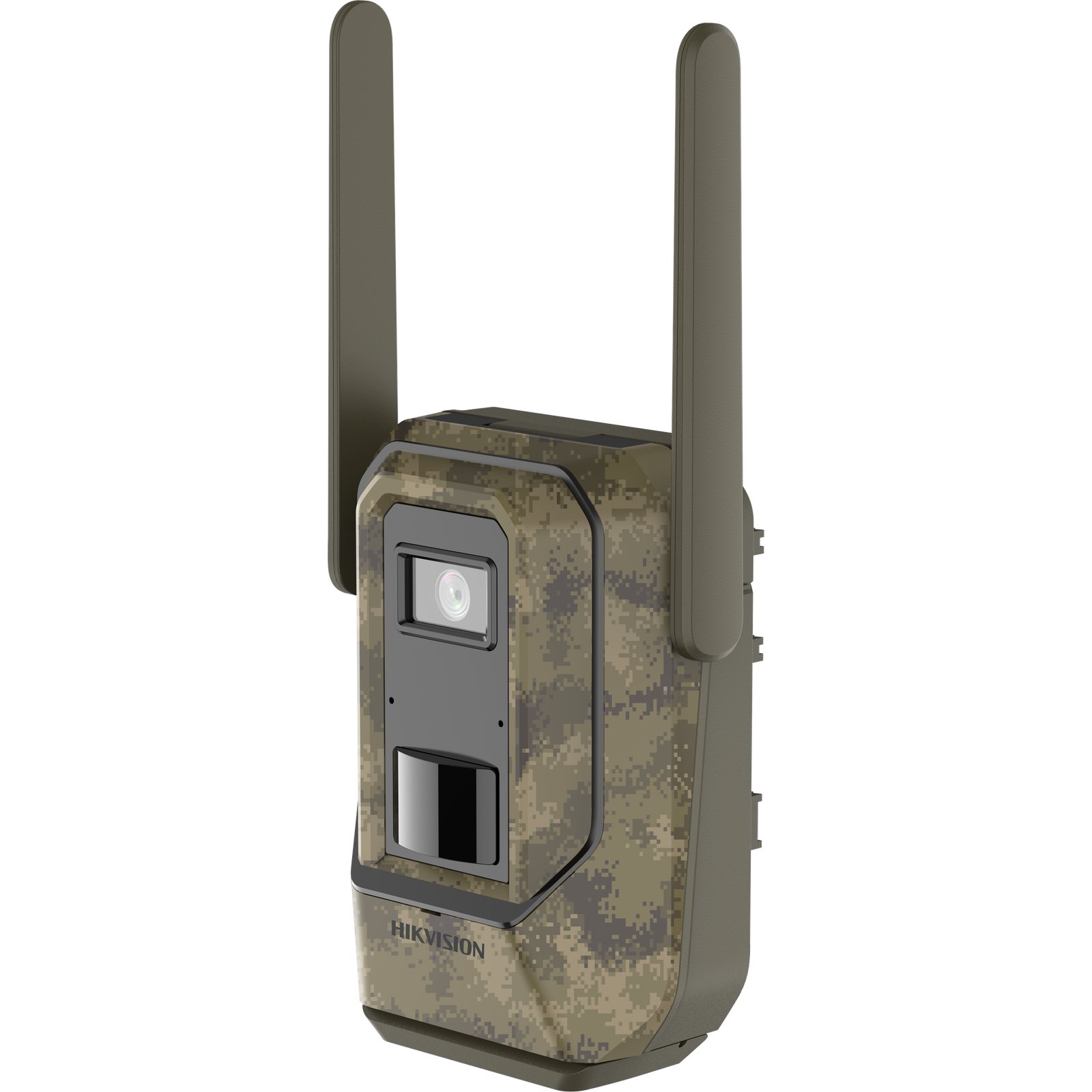

Hikvision DS-2XS6F45G1-IC2/4G(2.8mm)
28,93€ / 60 mėn.
872,41€(Kaina be PVM)1.055,62€(Kaina su PVM) su PVM
- IP kamera
- Gamintojas: Hikvision
- Modelis: DS-2XS6F45G1-IC2/4G(2.8mm)
- Rezoliucija: 4MP
- Jutiklis: 1/3’’ CMOS
- IR pašvietimas: iki 15m
- Triukšmo mažinimas: 3D DNR
- Plačiajuostė dinamika (WDR): 120dB
- Foninio apšvietimo kompensacija (BLC)
- Kompresija: H.265+
- Apsaugos klasė: IP67
Liko tik 1
- Kamera
- Sensorius1/3″ Progressive Scan CMOS
- Maks. rezoliucija2688 × 1520
- Min. apšvietimasColor: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
- Užrakto greitis1 s to 1/100,000 s
- Day & NightIR cut filter
- Lęšis
- Focal Length & FOV
2.8 mm, horizontal FOV 103.6°, vertical FOV 57.2°, diagonal FOV 121.6°
4 mm, horizontal FOV 81.1°, vertical FOV 48.6°, diagonal FOV 90.6°
- DiafragamaF1.6
- Lęšio montavimasM12
- DORI
- DORI
2.8 mm: D: 63.6 m, O: 25.2 m, R: 12.7 m, I: 6.4 m
4 mm: D: 66.0 m, O: 26.2 m, R: 13.2 m, I: 6.6 m
- Apšvietimas
- Papildomo apšviešimo tipasIR
- IR bangos ilgis850 nm
- Papildomo apšvietimo diapazonasUp to 15 m
- Išmanus papildomas apšvietimasYes
- Vaizdas
- Pagrindinis srautas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Vaizdo suspaudimasMain stream: H.265
- Vaizdo bitų greitis32 Kbps to 8 Mbps
- H.265 tipasBaseline Profile,Main Profile,High Profile
- Bitų greičio kontrolėCBR,VBR
- Scalable Video Coding (SVC)H.265
- Garsas
- Pašalinių garsų šalinimasYes
- Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
- Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Garso tipasMono sound
- Internetas
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
- ProtokolaiTCP/IP, IPv6, DDNS, RTSP, HTTPS, HTTP, FTP, QoS, Bonjour, SNMP, WebSocket, WebSockets
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Vidinė atmintis
Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- KlientasiVMS-4200,Hik-Connect
- Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Safari 13+, Edge 89+
- Mobile Communication
- Dažnis
4G model:
LTE-TDD Band 38/40/41
LTE-FDD Band 1/3/5/7/8/20/28
WCDMA Band 1/5/8
GSM 850/900/1800MHz
4G LA model：
LTE-TDD Band 38/40
LTE-FDD Band 1/2/3/4/5/7/8/28/66
WCDMA Band 1/2/3/4/5/8
GSM 850/900/1800/1900MHz
- StandartasLTE-TDD/LTE-FDD/WCDMA/GSM
- Nuotrauka
- Diena/Naktis režimasDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Nuotraukų pagražinimasBLC,HLC,Defog,3D DNR
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaiSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
- SNR≥ 52 dB
- Transducer
- Transducer TypePIR
- Fiksavimo diapazonasUp to 15 m
- Fiksavimo kampas2.8 mm: Horizontal: 90° ± 5°, vertical: 25° ± 5°; 4 mm: Horizontal: 50° ± 5°, vertical: 20° ± 5°
- Satellite Positioning
- Satellite Positioning DetectionSupport GPS and searching longitude and latitude of the device
- Sąsaja
- Įmontuotas mikrofonas1 built-in microphone
- Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Interneto sąsaja1 six-core 1.25 mm interface (it can be transferred as 1 12 VDC coaxial interface and 1 RJ 45 10 m/100 m self-adaptive Ethernet port)
- Perkrovimo mygtukas
Yes,
Press to switch between performance mode and proactive mode. Hold the button for 10 sec to restore to defaults.
- Funkcijos
- Pagrindinės funckcijosException,PIR Alarm
- SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording
- Pagrindinis
- Sistemos parametrai6 to 15 VDC, 1.03 to 0.73 A, max. 6.2 W
- Pagrindinės funkcijosHeartbeat,one-key reset,anti-banding,password protection,watermark, IP address filter
- MedžiagaPlastic
- DydisWith antennas folded: 172.8 mm × 139.7 mm × 86.7 mm (6.8″ × 5.5″ × 3.4″), with antennas extending: 283.3 mm × 139.7 mm × 86.7 mm (11.2″ × 5.5″ × 3.4″)
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Pakuotės dydis260 mm × 217 mm × 241 mm (10.2″ × 8.5″ × 9.5″)
- SvorisApprox. 0.63 kg (1.39 lb.)
- Svoris su įpakavimuC1: approx. 1.588 kg (3.5 lb.), C2: approx. 1.848 kg (4.07 lb.)
- Sandėliavimo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
- Darbo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
- Baterija
- Baterijos tipasChargeable lithium battery or 5AA dry cell
- Battery Voltage
Rated voltage: 7.2 VDC
Charging voltage: 8.4 VDC
Discharging cut-off voltage: 5.6 VDC
- Talpa9.4 Ah
- Darbo sąlygos (temperatūra)-20 °C to 60°C (-4 °F to 140 °F)
- Cycle Lifetime
Cycle lifetime is calculated under the condition that the camera captures pictures 10 times per day (9 times during the day and 1 time at night), uploads once per day, and keeps alive for 3 hours per day with the ambient temperature at 25 °C (77 °F).
Cycle lifetime: 125 days
Make sure the battery is fully charged before using the device.
- Patvirtinimai
- RFCE-RED: EN 301489-1 V2.2.3, EN 301489-17 V3.2.4, EN 301489-52 V1.2.1, EN 300 328 V2.2.2, EN IEC 62311:2020
- EMC
CE-EMC: EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014,
RCM: AS/NZS CISPR 32: 2015
- SaugumasCB: IEC 62368-1: 2014+A11
- Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ApsaugaIP67: IEC 60529-2013
